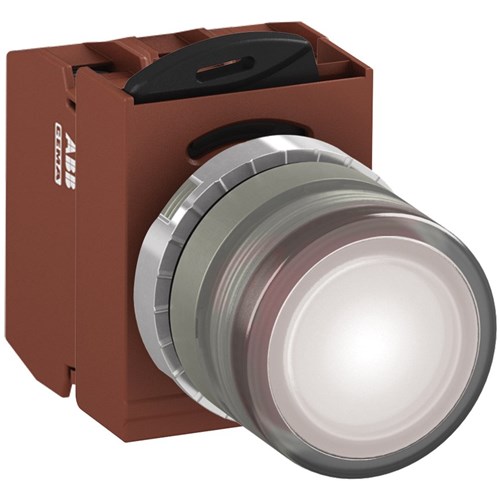

ABB MMPIFWOSL320 Illuminated Pushbutton Kit 22mm Flush Momentary White 110VAC/DC 2NO Screw LED Block

Product Code: MMPIFWOSL320

  • 110 VAC/DC illuminated push button
  • IP66 protection for harsh environments
  • Operates in -30 to 70°C range
  • Flush actuator with 22 mm diameter
  • Suitable for mining and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour White
Connection Type Screw
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, LED Block and LED
Lamp Colour White
Lamp Type LED
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>In the world of industrial and commercial applications, finding a reliable and efficient solution for your electrical needs is paramount. This product, designed for demanding environments like mining, construction, and heavy industry, offers robust performance coupled with essential features that meet stringent standards.</p><p>Operating on a rated voltage of 110 VAC/DC, this illuminated device ensures clear visibility and functionality in various settings. The illumination is provided by a white LED lamp housed within an IP66-rated enclosure, offering excellent protection against dust and powerful water jets—ideal for harsh outdoor or industrial conditions.</p><p>Complying with multiple international standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 approvals ensure that this product meets rigorous safety and quality benchmarks required in Australia.</p><p>The ambient temperature range from -30 to 70 degrees Celsius allows it to function reliably across diverse climates—from the coldest regions to hot desert environments. Its screw connection type facilitates easy installation while maintaining secure connectivity.</p><p>With a rated insulation voltage of up to 690 V and an impulse withstand voltage of 4 kV, this device is engineered to handle significant electrical loads safely. The contact configuration consists of two normally open (2NO) contacts which are suitable for momentary operations—making it perfect for tasks requiring temporary activation without latching.</p><p>Featuring a flush actuator type with a diameter of 22 mm ensures compatibility with standard panel cutouts while providing an ergonomic interface for users. The bezel material made from metal adds durability and resistance against mechanical impacts or wear over time.</p><p>The inclusion of maintained accessories along with the operator contact block enhances its versatility in various setups. Furthermore, the LED block integrated into the design not only provides energy-efficient illumination but also contributes to lower maintenance costs due to its long lifespan compared to traditional lighting options.</p><p>Overall, this product offers comprehensive solutions tailored specifically towards rigorous industrial applications where reliability cannot be compromised—a testament backed by top-notch engineering principles embedded within every aspect from design through execution.</p>
