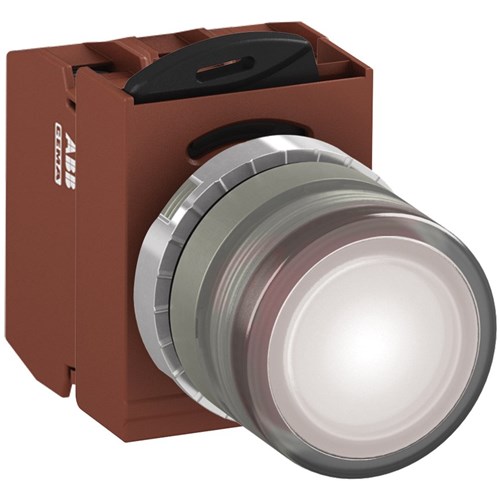

ABB MMPIFWOSP220 Illuminated Pushbutton Kit 22mm Flush Momentary White 24VAC/DC 2NO Screw Power Supply

Product Code: MMPIFWOSP220

  • Operates at 24 VAC/DC with illumination
  • Robust IP66 protection for harsh environments
  • Supports mining, construction, heavy industry
  • Flush actuator with 22 mm diameter
  • Screw connection type for secure installation
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour White
Connection Type Screw
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour White
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When selecting components for industrial and commercial applications, it&amp;#39;s crucial to find products that meet stringent standards and can withstand challenging environments. This illuminated pushbutton is specifically designed for such demanding contexts, offering a robust solution for mining, construction, and heavy industry applications.</p><p>Operating at a rated voltage of 24 VAC/DC, this device provides reliable performance with its momentary function. The actuator type is flush, ensuring a sleek profile while maintaining functionality. The button&amp;#39;s diameter is 22 mm, which fits standard cutout sizes for ease of installation.</p><p>The product boasts an IP66 degree of protection, making it highly resistant to dust ingress and powerful water jets. This feature ensures the component remains operational even in harsh conditions. It adheres to several international standards including EN IEC 60947-5-1 and UL 508, reflecting its compliance with global safety requirements.</p><p>Designed to operate efficiently in ambient temperatures ranging from -30 to 70 degrees Celsius, the pushbutton can handle various environmental challenges without compromising performance. Its rated insulation voltage stands at an impressive 690 V while the rated impulse withstand voltage reaches up to 4 kV—indicative of its capacity to endure electrical stress.</p><p>The contact configuration is set as 2NO (normally open), suitable for circuits where you want the contacts closed only when the button is pressed. With a rated thermal current of 10 A, it accommodates substantial electrical loads typical in heavy-duty operations.</p><p>This component includes several key features: an operator unit, contact block, maintained accessories along with a power supply lamp block and BA9S lamp type—all contributing to its versatility and functionality. The white lamp color provides clear visibility in various lighting conditions.</p><p>Connection is facilitated through screw terminals—an easy method that ensures secure wiring connections essential for maintaining system integrity over time. Additionally, the bezel material made from metal enhances durability while offering added protection against mechanical impacts.</p><p>In summary, this illuminated pushbutton combines high-performance specifications with durable construction materials to deliver reliability across diverse industrial settings. Its adherence to multiple international standards further assures users of its quality and safety credentials—making it a worthy consideration for those seeking dependable control solutions within their systems.</p>
