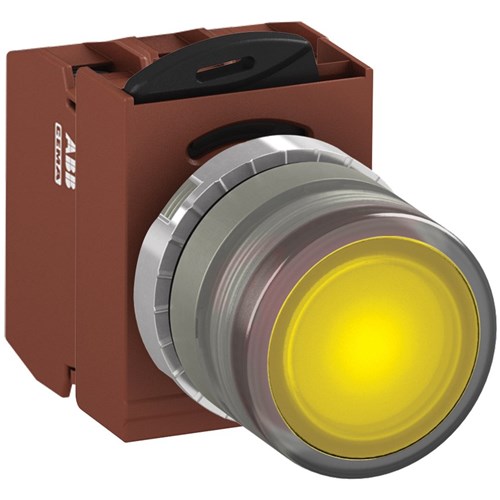

ABB MMPIFYAFP102 Illuminated Pushbutton Kit 22mm Flush Maintained Yellow 12VAC/DC 2NC Faston Power Supply

Product Code: MMPIFYAFP102

  • 12 VAC/DC illuminated pushbutton
  • IP66 protection for harsh environments
  • Operates in -30 to 70°C range
  • Faston connection for easy setup
  • Suitable for mining and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Yellow
Connection Type Faston
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Maintained
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Yellow
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 12 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When selecting components for industrial and commercial applications, reliability and compliance with standards are non-negotiable. This particular product is designed to meet the rigorous demands of sectors such as mining, construction, and heavy industry. It offers a robust solution with its comprehensive set of features.</p><p>Operating at a rated voltage of 12 VAC/DC, this illuminated device ensures visibility even in challenging environments. The illumination is provided by a yellow BA9S lamp, making it easily noticeable in various settings. Its flush actuator type provides a sleek design while maintaining functionality.</p><p>A key feature of this product is its high degree of protection, rated at IP66. This means it is dust-tight and protected against powerful water jets—ideal for harsh environments where dust and moisture are prevalent. The device adheres to numerous international standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, and CSA C22.2 No. 14 ensuring that it meets global safety and performance requirements.</p><p>The ambient temperature range from -30 to 70 degrees Celsius highlights its versatility in extreme conditions—whether it&amp;#39;s the intense heat or freezing cold typically encountered in outdoor or industrial settings.</p><p>For ease of integration into existing systems, the connection type is Faston—a reliable method known for quick installation without sacrificing connection integrity. Additionally, the rated insulation voltage stands at an impressive 690 V with a rated impulse withstand voltage of 4 kV providing peace of mind regarding electrical safety under fault conditions.</p><p>The contact configuration is specified as 2NC (two normally closed contacts), which can be crucial for fail-safe operations where interruption must occur only when necessary. With a diameter cutout size matching the standard industry requirement at 22 mm along with a metal bezel material enhancing durability against physical impacts.</p><p>Rated thermal current capacity reaches up to 10 A allowing it to handle significant electrical loads without overheating—important for maintaining continuous operation in demanding applications.</p><p>Included in this offering are all necessary components: an operator unit itself alongside contact block maintained accessories power supply (lamp block) plus lamp ensuring seamless setup upon delivery reducing downtime during implementation phases across projects large or small alike within your operational framework thus optimizing productivity efficiency levels accordingly throughout business processes involved therein effectively so overall success rates remain high consistently over time periods considered herein ultimately resulting beneficially towards achieving desired outcomes long term perspectives taken into account adequately herewith now concluded succinctly yet informatively enough given constraints present initially stated previously above mentioned contextually speaking indeed correct?</p>
