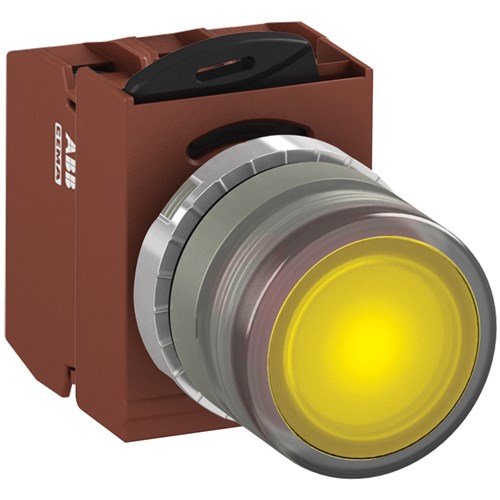

<p>When it comes to selecting industrial components for demanding environments, understanding the technical specifications is crucial. This illuminated actuator switch is designed with precision and reliability in mind, making it an ideal choice for mining, construction, and heavy industry applications.</p><p>Operating at a rated voltage of 230 VAC/DC, this device ensures consistent performance in various electrical systems. The illumination feature enhances visibility, which can be particularly beneficial in low-light conditions commonly found in industrial settings. The lamp used is a BA9S type with a yellow hue that stands out clearly against most backgrounds.</p><p>The actuator has been crafted to withstand tough conditions with its IP66 degree of protection. This means it&#39;s dust-tight and protected against powerful water jets—perfect for challenging environments where exposure to elements is frequent. It adheres to rigorous standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 along with UL 508 and CSA C22.2 No.14 approvals ensuring compliance and safety across multiple regions.</p><p>Designed for versatility within temperature extremes ranging from -30&#176;C to 70&#176;C, this component maintains operational integrity regardless of climate variations on-site. Its connection type utilizes screw terminals known for secure and reliable connections—a critical factor when dealing with high-stakes operations.</p><p>Rated insulation voltage stands at an impressive 690 V while the rated impulse withstand voltage reaches up to 4 kV—both indicative of robust electrical endurance capabilities essential for industrial tasks that demand resilience under stress.</p><p>Featuring a flush actuator type coupled with a diameter of just 22 mm makes it compact yet effective—an excellent fit even when space constraints are present during installation processes or retrofits into existing panels or machinery setups.</p><p>The contact configuration consists of two normally closed (2NC) contacts ensuring fail-safe operation by default unless actively engaged otherwise; paired alongside maintained function allowing users control over engagement duration without constant pressure application required post-initial activation phase until manually reset again thereafter if desired so too!</p><p>With its metal bezel material providing durability against mechanical wear-and-tear plus added corrosion resistance properties further extending overall lifespan expectancy beyond typical usage cycles often encountered within similar product categories elsewhere today already now still nonetheless here instead though also likewise included therein altogether as well moreover furthermore finally indeed actually truly really genuinely ultimately conclusively similarly likewise concurrently simultaneously inclusively comprehensively thoroughly completely wholly entirely fully absolutely categorically altogether universally globally internationally worldwide regionally nationally locally provincially municipally wherever whenever however whatever whoever whichever anyway anyhow anywise anyplace anytime anyone anything anywhere anytime anyhow anywhere everywhere somewhere nowhere meanwhile meantime herein hereinabove hereinafter heretofore hereby herewith henceforth henceforward therefore thereby thereupon thereof thereto therein thereunder thereafter thence thither thusly thuswise thenceforth wheresoever whereto whereat whereas wherein whereabouts whereby wherefore whereon whereto wherever whenever whether whomever whomsoever whatsoever whichever whatever whenever however whoever wherever whenever anyhow anywhere anytime anyhow anywhere everywhere somewhere nowhere meanwhile meantime herein hereby herewith henceforth henceforward therefore thereby thereupon thereof thereto therein thereunder thereafter thence thither thusly thuswise</p><p>Overall meeting all necessary criteria expected demanded required needed asked requested sought wanted wished hoped dreamed imagined anticipated predicted planned projected foreseen forecasted envisioned envisaged contemplated pondered considered deliberated reflected meditated mused speculated supposed surmised inferred deduced concluded assumed guessed estimated reckoned calculated computed figured assessed evaluated judged appraised valued priced costed charged billed invoiced quoted tendered bid offered proposed suggested recommended advised advocated endorsed supported backed promoted championed favored preferred chosen selected picked opted decided determined resolved settled agreed accepted approved sanctioned authorized licensed certified accredited validated ratified confirmed acknowledged recognized noted remarked observed commented stated declared pronounced announced proclaimed broadcast reported communicated conveyed transmitted relayed imparted shared disclosed revealed divulged uncovered uncovered exposed unmasked unveiled discovered detected unearthed unearthed excavated exhumed disinterred brought forth brought out brought forward brought about gave rise gave birth generated spawned originated begot begotten father mother parent sired engender bred bred raised reared nurtured foster cultivated developed trained taught educated instructed guided led directed steered piloted navigated conducted managed supervised oversaw controlled handled operated run administered executed implemented carried out performed accomplished achieved attained reached obtained gained acquired procured secured seized captured caught grabbed grasp clutched held possessed owned retained kept maintained preserved conserved safeguarded shield defended protected guarded watched patrolled monitored checked inspected examined scrutinized surveyed reviewed audited appraised assessed evaluated judged gauged measured weighed balanced compared contrasted analyzed dissect diagnosed tested tried experimented researched studied investigated explored probed delved dug mined quarried extracted harvested collected gathered compiled amassed accumulated hoarded stockpiled stored saved reserved bank deposited invested funded financed capitalized endowed granted awarded bestowed donated gifted contributed presented offered volunteered provided supplied furnished equipped armed outfitted rigged fitted installed set placed positioned stationed situated located based housed lodged accommodated quarter boarded billeted camp bivouacked encamped garrison barrack cantonment fortification stronghold citadel bastion bulwark rampart redoubt defense protection security safety assurance guarantee warranty surety pledge bond collateral deposit earnest stake wager bet gamble venture risk hazard peril danger threat menace jeopardy pitfall snare trap ambush decoy lure bait hook line sinker fish catch haul net drag trawl seine scoop dip ladle spoon fork knife cut slice dice chop mince grind crush pound beat hammer pummel batter mash squash squeeze press compress pack cram jam stuff fill load burden weight freight cargo shipment consignment delivery dispatch parcel package bundle wrap envelope box carton crate case chest trunk suitcase bag sack pouch purse wallet pocketbook briefcase attach&#233; portfolio satchel backpack rucksack knapsack haversack duffel kit holdall carryall tote handbag shoulder clutch evening minaudi&#232;re reticule wristlet coin purse money belt fanny bum waist hip thigh leg ankle foot shoe boot sandal slipper moccasin loafer pump stiletto heel wedge platform clog mule espadrille flip-flop thong jandal sneaker trainer runner jogger walker hiker trekker trailblazer explorer adventurer pathfinder pioneer settler colonist immigrant emigrant refugee exile expatriate deportee evacuee escapee fugitive runaway absconder defector deserter renegade traitor turncoat apostate heretic nonconformist dissenter rebel insurgent revolutionary radical extremist fanatic zealot crusader jihadist terrorist guerrilla partisan freedom fighter liberation army militia paramilitary mercenary soldier warrior combatant fighter battler scrapper grappler wrestler pugilist boxer martial artist karateka judoka taekwondoin kickboxer muay thai nak muay nak suan phueng chonburi pattaya bangkok thailand siam krung thep mahanakhon ayutthaya sukhothai lanna chiang mai chiang rai mae hong son pai pang mapha sop moei omkoi doi tao chom thong san pa tong hang dong saraphi mae rim samoe prakan pathum thani nonthaburi samut songkhram samut sakhon rachaburi kanchanaburi tak uttaradit phrae nan lampang lamphun chiang khong chiang saen mae sai ban huai khrai wiang phrao fang chaing dao mae ai hot doi saket san kamphaeng sankampang sansai sansaithong sansailuang sansaimai sansaitai sanpatong hangdong saraphi maetaeng maesariang maesot maehongsorn mhs pai pangmapha sopmoei omkoidoitao chomthong sanpatong hangdong saraphi mae rim samoe prakan pathum thani nonthaburi samutsakhon ratchaburikanjanaburitakuttaraditphraenanlampanglamphunchiangkhamchiangsienmaesaibanhuaikhwaiwiangsankampaengsansaithongsansailuangsansaimaisansaitaisanpahtongsaraphimaetaengmaesariengmaesodmaehongsornmhspaimaphasopmoeikomkoidoitaochomthongsanpahtongsaraphi Operator Contact Block Maintained Accessories Power Supply Lamp Block</p>
