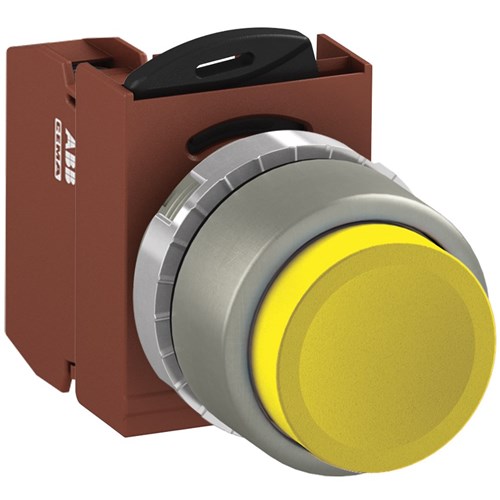

ABB MMPNEYAF10 Non-Illuminated Pushbutton Kit 22mm Extended Maintained Yellow 1NO Faston

Product Code: MMPNEYAF10

  • IP66 rated for robust protection
  • Operates in -30 to 70°C environments
  • Faston connection for easy installation
  • Maintained function with extended actuator
  • Suitable for mining and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Button Colour Yellow
Colour Yellow
Connection Type Faston
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Maintained
Illumination Non-Illuminated
Light Blocks Type Not Applicable
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to selecting robust industrial components, the product at hand stands out with its impressive specifications tailored for demanding environments. Designed specifically for mining, construction, and heavy industry applications, this non-illuminated device ensures reliability and durability.</p><p>One of the key features is its high degree of protection rated at IP66. This means it is well-protected against dust ingress and powerful water jets from any direction – a critical aspect when operating in rugged conditions where exposure to elements is common. The product meets multiple international standards including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications. These approvals assure compliance with stringent safety and performance requirements.</p><p>Operating efficiently within an ambient temperature range of -30 to 70 degrees Celsius makes this component versatile enough to handle extreme weather conditions without compromising performance. Its faston connection type facilitates quick installation or replacement, minimizing downtime in operations.</p><p>The electrical specifications are equally commendable with a rated insulation voltage of up to 690 V paired with a rated impulse withstand voltage of 4 kV – ensuring that the device can handle transient overvoltages effectively. The contact configuration is set as normally open (1NO), which suits various control circuit applications requiring an off-to-on switch action.</p><p>Engineered with an extended actuator type for ease of use even when wearing gloves or operating machinery remotely, this product boasts a diameter and cutout size both at 22 mm – standard dimensions that ensure compatibility across different setups without needing additional modifications.</p><p>The function is maintained; once activated, it remains in position until manually reset – ideal for situations where continuous operation needs to be secured without constant manual intervention. Rated thermal current capacity stands firm at 10 A allowing safe handling of moderate electrical loads typical in industrial settings.</p><p>Constructed using metal bezel material adds another layer of durability while offering resistance against physical impacts often encountered in busy work sites. Finished with a yellow button color not only enhances visibility but also aligns with intuitive signaling conventions widely used across industries worldwide.</p><p>This comprehensive feature set underscores why it&amp;#39;s preferred by professionals seeking reliable solutions capable of enduring harsh operational demands consistently over time.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
