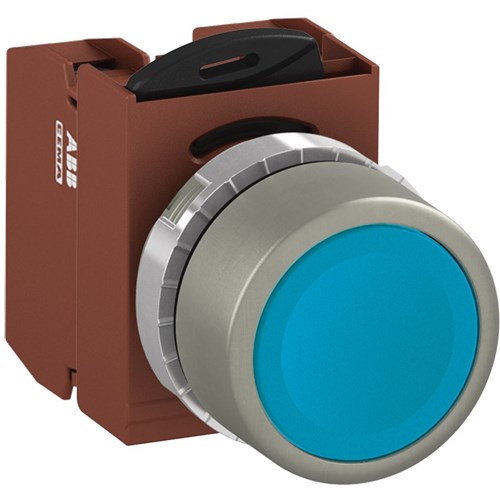

ABB MMPNFLAS02 Non-Illuminated Pushbutton Kit 22mm Flush Maintained Blue 2NC Screw

Product Code: MMPNFLAS02

  • IP66 rating for robust protection
  • Operates in -30 to 70°C range
  • 690V insulation voltage capacity
  • Durable metal bezel with flush actuator
  • Designed for mining and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Button Colour Blue
Colour Blue
Connection Type Screw
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Maintained
Illumination Non-Illuminated
Light Blocks Type Not Applicable
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to selecting reliable and robust control components for industrial applications, this non-illuminated push button stands out as a solid choice. Designed with durability in mind, it is especially suited for demanding environments such as mining, construction, and heavy industry.</p><p>The product boasts an impressive degree of protection with an IP66 rating, ensuring that it can withstand harsh conditions including dust ingress and powerful water jets. This makes it ideal for use in rugged settings where resilience is paramount.</p><p>Engineered to meet several international standards and approvals such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 along with UL 508 and CSA C22.2 No. 14 certifications, the unit guarantees compliance with essential safety requirements.</p><p>Operating effectively within a broad ambient temperature range from -30 to 70 degrees Celsius highlights its adaptability across various climates and operational conditions. The screw connection type ensures secure electrical connections which are crucial in maintaining system integrity over time.</p><p>With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 4 kV, this component provides robust electrical performance under high-voltage scenarios. The contact configuration features two normally closed (2NC) contacts which are typically used for fail-safe systems or emergency stop functions.</p><p>The actuator is designed flush with a diameter of 22 mm fitting seamlessly into standard panel cutouts without requiring additional modifications. Its maintained function means the button stays engaged after being pressed until manually reset—a feature often required in industrial applications where continuous operation is necessary until stopped intentionally.</p><p>A blue button color adds visual differentiation which can be beneficial in multi-button panels or specific task identification setups within complex systems. Constructed with a metal bezel material further enhances its durability making sure the device endures physical impacts while maintaining functionality.</p><p>Overall this push button combines reliability with compliance making it an excellent choice for professionals seeking dependable performance in challenging environments without compromising on quality or safety standards.</p>
