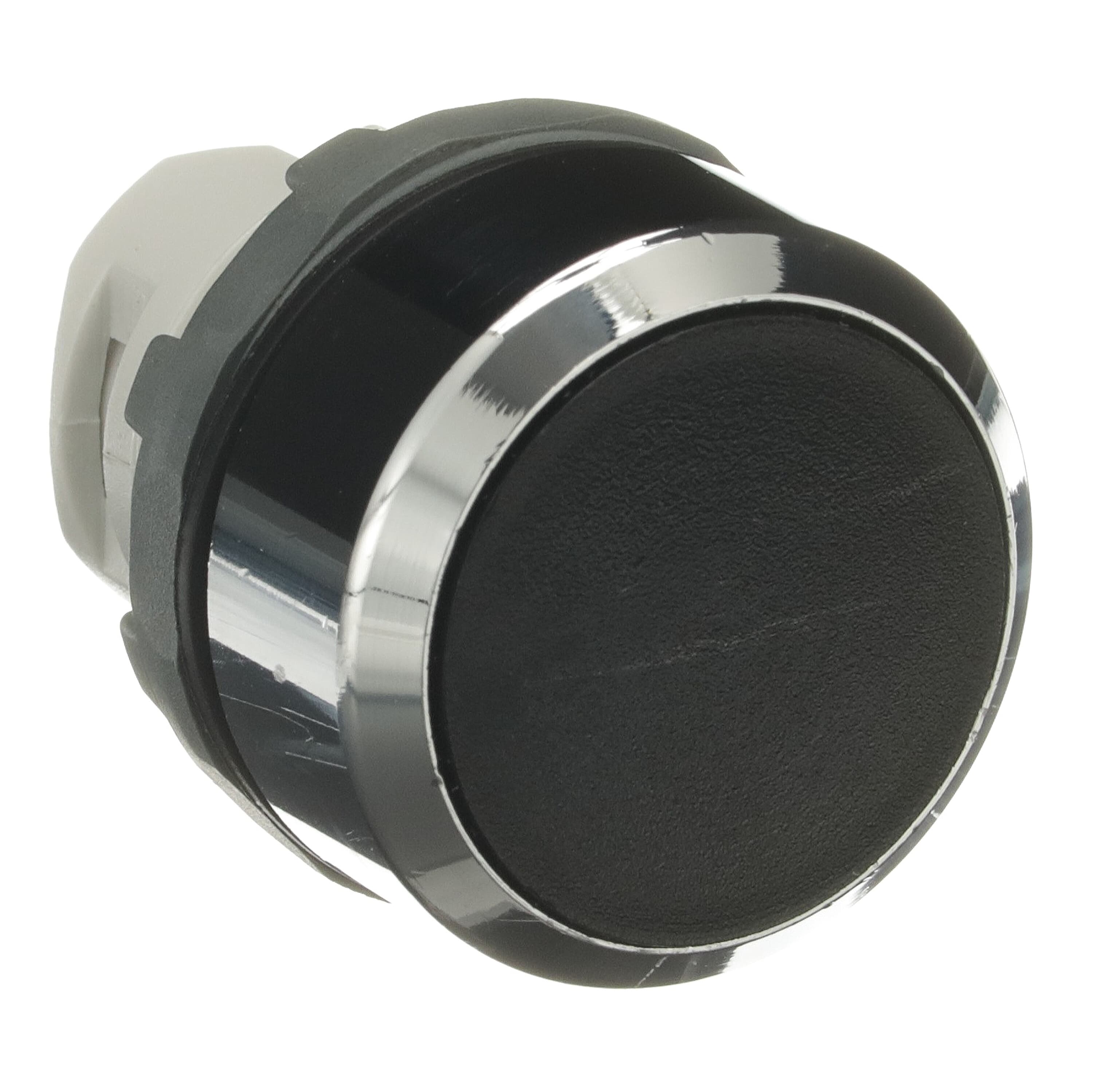

ABB MP1-30B Non-Illuminated Pushbutton Flush Momentary Black Chrome Metal Bezel

Product Code: MP1-30B

  • Non-illuminated, flush actuator design
  • Durable metal bezel in chrome finish
  • IP66 front protection for harsh environments
  • Operates between -25 to 70°C
  • Supports up to 2 million operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton
Brand ABB
Actuator Type Flush
Bezel Colour Chrome
Bezel Material Metal
Button Colour Black
Colour Black
Degree of Protection IP66 Front
Depth 33 mm
Enclosure Type NEMA 1, 12, 13, 3R, 4, 4X
Function Momentary
Height 29 mm
Illumination Non-Illuminated
Includes Holder and Contact Block are not included
Material Bezel: Chrome Metal
Mechanical Life 2 million Operations
Mode of Operation Momentary
Operational Temperature -25 to 70 deg C
Range Modular Plastic
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Standards and Approvals IEC / EN 60947-1, IEC / EN 60947-5-1, IEC / EN 60947-5-5, IEC / EN 60073, IEC / EN 60529
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Weight 0.024 kg
Width 29 mm

Description

<p>This pushbutton is a robust and reliable choice for industrial and commercial applications. Designed with a focus on durability, it features a non-illuminated flush actuator that blends seamlessly into its environment while ensuring ease of use. The button itself measures 29 mm in width and height, with a depth of 33 mm, making it compact yet effective for various settings.</p><p>One of the standout features is its impressive degree of protection. With an IP66 rating at the front, this pushbutton is well-equipped to handle dust-tight environments and powerful water jets from any direction. This makes it suitable for demanding conditions often found in industrial settings.</p><p>The pushbutton&amp;#39;s operational temperature ranges from -25 to 70 degrees Celsius, ensuring reliable performance under extreme conditions. Additionally, its storage temperature range extends from -40 to 85 degrees Celsius, providing flexibility in terms of storage without compromising functionality.</p><p>Built with practicality in mind, the product incorporates screw terminal types which facilitate straightforward installation and maintenance. Its rated insulation voltage stands at an impressive 690 V while offering a rated impulse withstand voltage of 6 kV—both indicators of its capability to handle high-voltage environments safely.</p><p>With an enclosure type meeting NEMA standards (1, 12, 13, 3R, 4, 4X), this pushbutton guarantees versatility across different industrial contexts—from general indoor use to more challenging outdoor conditions where resistance against harsh elements like rain or corrosion is necessary.</p><p>The mechanical life expectancy reaches up to two million operations—a testament to its long-lasting design intended for repetitive use without frequent replacements or repairs. Weighing just 0.024 kg adds minimal load wherever it&amp;#39;s installed but doesn&amp;#39;t compromise on sturdiness thanks to the metal bezel material finished in chrome for added aesthetic appeal alongside functionality.</p><p>While the holder and contact block are not included with this unit allowing customization according to specific needs—the black button color ensures clear visibility within control panels or machinery setups where quick identification can be crucial during operation or emergency scenarios.</p><p>Overall if you require a momentary function device that combines resilience versatility ease-of-use then this pushbutton offers all these attributes packaged neatly together ready-to-integrate into your systems confidently supporting your operational requirements effectively every step along way!</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
