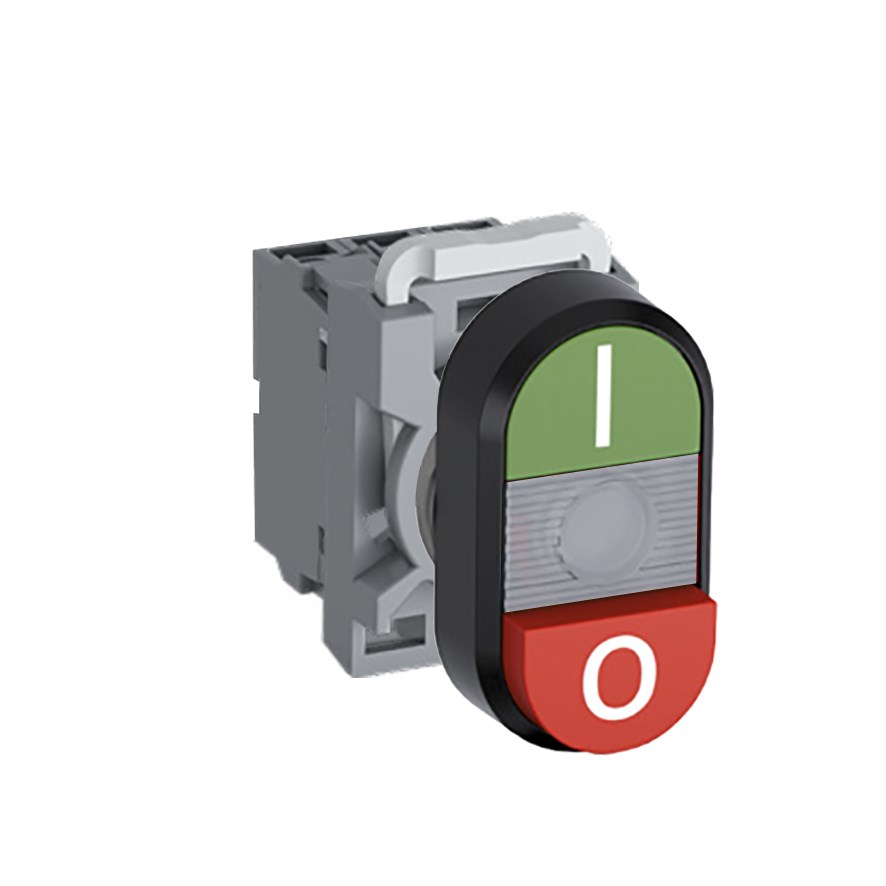

ABB MPDIECGRI602 Illuminated Double Pushbutton Kit Flush/Extended Clear I/O Green/Red 220VDC 2NC LED Block

Product Code: MPDIECGRI602

  • 220 VDC illuminated accessory with IP66 front protection
  • Operates in temperatures from -25 to 70°C
  • Includes operator, contact block, and LED block
  • Suitable for mining and heavy industry applications
  • Features a flush/extended actuator with clear LED lamp
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Clear
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Clear
Lamp Type Built-in LED
Legend I (Upper), O (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This versatile accessory is designed to meet the rigorous demands of industrial environments, making it an excellent choice for professionals in mining, construction, and heavy industry applications. Engineered with precision, this product offers a robust performance that ensures reliability and safety.</p><p>The accessory operates at a rated voltage of 220 VDC and features a built-in LED illumination system. This design not only enhances visibility but also contributes to energy efficiency. The lamp&amp;#39;s clear color ensures that signals are easily distinguishable in various lighting conditions.</p><p>Durability is assured with its high degree of protection: IP66 on the front for resilience against dust and water ingress, and IP20 at the terminal level for basic protection. These specifications make it suitable for challenging work environments where exposure to elements is common.</p><p>Compliant with numerous standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others, this product exemplifies adherence to international safety and performance benchmarks. It also meets UL 508 and CSA C22.2 No. 14 standards which are critical for operations within North America.</p><p>Operating efficiently within an ambient temperature range from -25 to 70 degrees Celsius, this accessory maintains functionality across diverse climates. The rated insulation voltage of 690 V further enhances its suitability for high-voltage applications while offering a rated impulse withstand voltage of up to 6 kV.</p><p>The contact configuration includes two normally closed (2NC) contacts ensuring reliable operation in control circuits. With an actuator type available as flush or extended options paired with a legend indicating &amp;#39;I&amp;#39; on the upper part and &amp;#39;O&amp;#39; on the lower part, users can expect intuitive operation.</p><p>Constructed using durable plastic bezel material along with green (upper) and red (lower) button colors provides clear operational cues enhancing user interaction ease-of-use during critical tasks or emergency scenarios when quick response times are essential.</p><p>Designed around a cutout size of 22 mm coupled with light blocks utilizing efficient LED technology ensures seamless integration into existing systems without compromising space constraints often faced by technicians during installations or upgrades alike.</p><p>Each unit comes complete including operator components such as contact block holders alongside LED blocks providing all necessary parts required simplifying procurement processes reducing downtime associated traditionally seen when sourcing individual items separately thereby streamlining maintenance schedules effectively too!</p><p>In summary this comprehensive package delivers exceptional value through combining advanced technical attributes supported by stringent compliance measures ultimately resulting dependable solution capable meeting needs today’s demanding industries face daily ensuring peace mind operators everywhere!</p>
