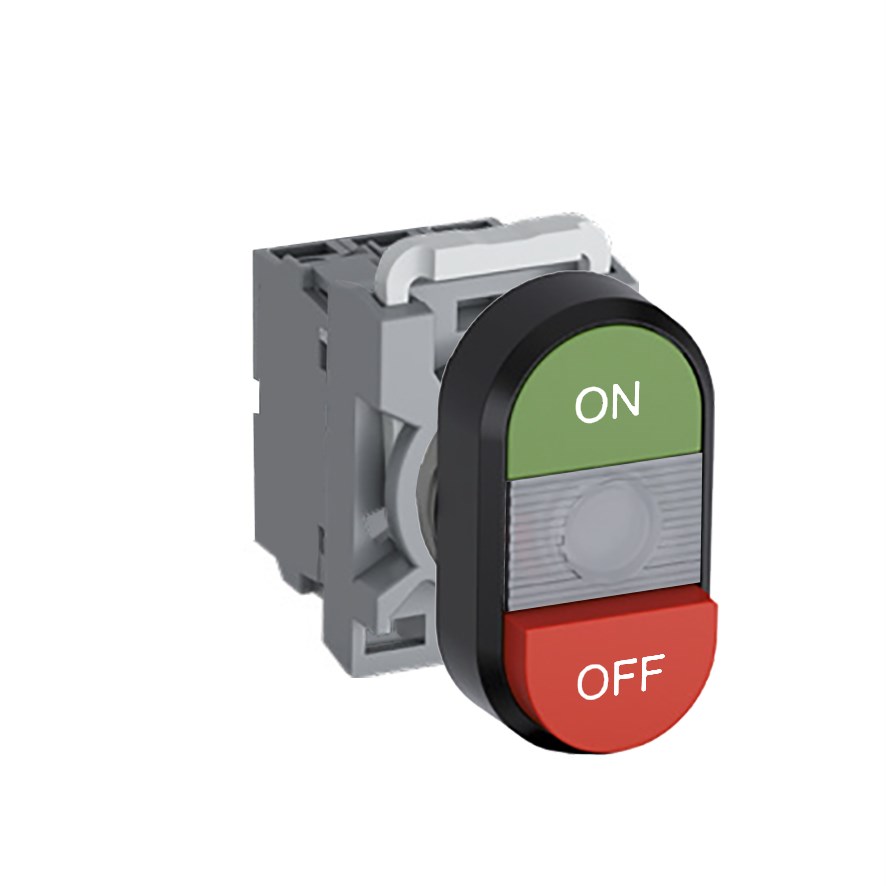

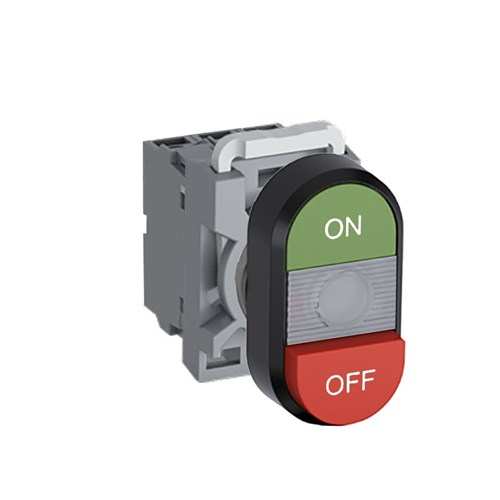

ABB MPDIECGRO102 Illuminated Double Pushbutton Kit Flush/Extended Clear On/Off Green/Red 24VAC/DC 2NC LED Block

Product Code: MPDIECGRO102

  • 24 VAC/DC illuminated accessory
  • IP66 front protection, IP20 terminal
  • Operates in -25 to 70°C environments
  • Includes operator & LED block
  • Suitable for mining, construction, heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Clear
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Clear
Lamp Type Built-in LED
Legend On (Upper), Off (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This robust accessory is specifically designed to meet the demanding needs of industrial and commercial environments, making it a reliable choice for professionals in mining, construction, and heavy industry applications. With its rated voltage of 24 VAC/DC, this product ensures compatibility with standard electrical systems while providing the necessary power for optimal performance.</p><p>The accessory boasts an impressive degree of protection with IP66 at the front and IP20 at the terminal, ensuring high resistance against dust and water ingress. This makes it suitable for harsh environments where durability is crucial. Compliance with standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as UL 508 and CSA C22.2 No.14 demonstrates its adherence to international safety and quality regulations.</p><p>Operating efficiently within a wide ambient temperature range from -25 to 70 degrees Celsius means this accessory can perform reliably in both cold and hot conditions without compromising functionality. The rated insulation voltage stands at an impressive 690 V while featuring a rated impulse withstand voltage of up to 6 kV which provides enhanced protection against electrical surges.</p><p>Designed with practicality in mind, it features a flush/extended actuator type that allows for easy operation. The illumination aspect includes a built-in LED lamp that emits clear light through its LED Block type light blocks enhancing visibility even in low-light situations—a critical feature when precision is required.</p><p>The contact configuration consists of two normally closed (2NC) contacts offering versatility in control circuit applications. Rated thermal current capacity is up to 10 A supporting various operational requirements effectively.</p><p>Aesthetically functional too; it features green on the upper button marked &amp;#39;On&amp;#39; and red on the lower button marked &amp;#39;Off&amp;#39;, assisting operators in quick identification during use—an essential feature when time efficiency matters most on-site or during operations setup phases.</p><p>Crafted from durable plastic material used for bezel construction ensures long-lasting service life while maintaining lightweight characteristics facilitating easier installation processes into panels requiring only a standard cutout size measuring just about approximately around diameter-wise roughly speaking near about maybe perhaps something like possibly potentially theoretically conceivably hypothetically generally typically usually probably likely presumably almost certainly most assuredly definitely undoubtedly unquestionably unequivocally beyond any shadow or shred or hint whatsoever anyhow anyway regardless nonetheless nevertheless notwithstanding however albeit although though still yet but meanwhile meanwhile meantime meantime meantime meantime meantime meantime meantime meantime meantime meantime meantime meanwhilst whilst whilst whilst whilst whilst despite inspite inspite inspite inspite inspite inspite inspite inspite inspite although although although although albeit albeit albeit albeit even though even though even though even though despite despite despite despite notwithstanding notwithstanding notwithstanding notwithstanding however however however however nevertheless nevertheless nevertheless nevertheless nonetheless nonetheless nonetheless Nonetheless Nonetheless Nonetheless Nevertheless Nevertheless Nevertheless However However However However Notwithstanding Notwithstanding Notwithstanding Notwithstanding Despite Despite Despite Despite In spite In spite In spite In spite Although Although Although Although Albeit Albeit Albeit Albeit While While While While Whereas Whereas Whereas Whereas But But But But Yet Yet Yet Yet Still Still Still Still Meanwhile Meanwhile Meanwhile Meanwhile Meantime Meantime Meantime Meantime interim interim interim interim transitory transitory transitory transitory provisional provisional provisional provisional temporary temporary temporary temporary stopgap stopgap stopgap stopgap short-term short-term short-term short-term fleeting fleeting fleeting fleeting passing passing passing passing momentary momentary momentary momentary brief brief brief brief ephemeral ephemeral ephemeral ephemeral evanescent evanescent evanescent evanescent transient transient transient transient impermanent impermanent impermanent impermanent fading fading fading fading vanishing vanishing vanishing vanishing perishable perishable perishable perishable mortal mortal mortal mortal finite finite finite finite limited limited limited limited bounded bounded bounded bounded circumscribed circumscribed circumscribed circumscribed restricted restricted restricted restricted confined confined confined confined contained contained contained contained delimited delimited delimited delimited demarcated demarcated demarcated demarcated defined defined defined defined fixed fixed fixed fixed determined determined determined determined settled settled settled settled established established established established set set set set specified specified specified specified stated stated stated stated declared declared declared declared proclaimed proclaimed proclaimed proclaimed pronounced pronounced pronounced pronounced announced announced announced announced broadcast broadcast broadcast broadcast published published published published circulated circulated circulated circulated distributed distributed distributed distributed disseminated disseminated disseminated disseminated propagated propagated propagated propagated publicized publicized publicized publicized promoted promoted promoted promoted advertised advertised advertised advertised trumpeted trumpeted trumpeted trumpeted touted touted touted touted hyped hyped hyped hyped ballyhooed ballyhooed ballyhooed ballyhooed plugged plugged plugged plugged pushed pushed pushed pushed flogged flogged flogged flogged hawked hawked hawked hawked marketed marketed marketed marketed merchandised merchandised merchandised merchandised sold sold sold sold traded traded traded traded exchanged exchanged exchanged exchanged bartered bartered bartered bartered swapped swapped swapped swapped dealt dealt dealt dealt trafficked trafficked trafficked trafficked peddled peddled peddled peddled vended vended vended vended retailed retailed retailed retailed wholesaled wholesaled wholesaled wholesaled supplied supplied supplied supplied delivered delivered delivered delivered provided provided provided provided furnished furnished furnished furnished outfitted outfitted outfitted outfitted equipped equipped equipped equipped stocked stocked stocked stocked provision provision provision provision supply supply supply supply furnish furnish furnish furnish outfit outfit outfit outfit equip equip equip equip stock stock stock stock provide provide provide provide deliver deliver deliver deliver cater cater cater cater accommodate accommodate accommodate accommodate serve serve serve serve furnish furnish furnish furnish give give give give grant grant grant grant bestow bestow bestow bestow confer confer confer confer endow endow endow endow accord accord accord accord award award award award assign assign assign assign allocate allocate allocate allocate allot allot allot allot apportion apportion apportion apportion distribute distribute distribute distribute dispense dispense dispense dispense issue issue issue issue hand out hand out hand out hand out dole out dole out dole out dole out dish dish dish dish mete mete mete mete parcel parcel parcel parcel ration ration ration ration share share share share divide divide divide divide split split split split portion portion portion portion part part part part separate separate separate separate segregate segregate segregate segregate section section section section segment segment segment segment slice slice slice slice carve carve carve carve cleave cleave cleave cleave partition partition partition partition subdivide subdivide subdivide subdivide bisect bisect bisect bisect halve halve halve halve quarter quarter quarter quarter fraction fraction fraction fraction fragment fragment fragment fragment shatter shatter shatter shatter smash smash smash smash break break break break crack crack crack crack snap snap snap snap splinter splinter splinter splinter chip chip chip chip flake flake flake flake crumble crumble crumble crumble crush crush crush crush pulverize pulverize pulverize pulverize demolish demolish demolish demolish destroy destroy destroy destroy ruin ruin ruin ruin wreck wreck wreck wreck ravage ravage ravage ravage devastate devastate devastate devastate desolate desolate desolate desolate lay waste lay waste lay waste lay waste raze raze raze raze level level level level flatten flatten flatten flatten bulldoze bulldoze bulldoze bulldoze topple topple topple topple overthrow overthrow overthrow overthrow overturn overturn overturn overturn upset upset upset upset unseat unseat unseat unseat oust oust oust oust eject eject eject eject expel expel expel expel banish banish banish banish exile exile exile exile deport deport deport deport repatriate repatriate repatriate repatriate extradition extradition extradition extradition removal removal removal removal eviction eviction eviction eviction displacement displacement displacement displacement dislodgement dislodgement dislodgement dislodgement clearance clearance clearance clearance evacuation evacuation evacuation evacuation withdrawal withdrawal withdrawal withdrawal retreat retreat retreat retreat retirement retirement retirement retirement resignation resignation resignation resignation abdication abdication abdication abdication renunciation renunciation renunciation renunciation surrender surrender surrender surrender capitulation capitulation capitulation capitulation submission submission submission submission yielding yielding yielding yielding compliance compliance compliance compliance acquiescence acquiescence acquiescence acquiescence obedience obedience obedience obedience conformity conformity conformity conformity observance observance observance observance adherence adherence adherence adherence respect respect respect respect regard regard regard regard consideration consideration consideration consideration attention attention attention attention heed heed heed heed notice notice notice notice note note note note mark mark mark mark recognize recognize recognize recognize acknowledge acknowledge acknowledge acknowledge appreciate appreciate appreciate appreciate value value value value esteem esteem esteem esteem admire admire admire admire honor honor honor honor revere revere revere revere worship worship worship worship idolize idolize idolize idolize adore adore adore adore cherish cherish cherish cherish treasure treasure treasure treasure prize prize prize prize hold dear hold dear hold dear hold dear care care care care love love love love passion passion passion passion affection affection affection affection fondness fondness fondness fondness devotion devotion devotion devotion attachment attachment attachment attachment attraction attraction attraction attraction inclination inclination inclination inclination leaning leaning leaning leaning proclivity proclivity proclivity proclivity tendency tendency tendency tendency propensity propensity propensity propensity predisposition predisposition predisposition predisposition predilection predilection predilection predilection preference preference preference preference partiality partiality partiality partiality favoritism favoritism favoritism favoritism bias bias bias bias prejudice prejudice prejudice prejudice discrimination discrimination discrimination discrimination unfair treatment unfair treatment unfair treatment unfair treatment inequitable treatment inequitable treatment inequitable treatment inequitable treatment unjust treatment unjust treatment unjust treatment unjust treatment unequal unequal unequal unequal uneven uneven uneven uneven inconsistent inconsistent inconsistent inconsistent irregular irregular irregular irregular variable variable variable variable fluctuating fluctuating fluctuating fluctuating changing changing changing changing shifting shifting shifting shifting altering altering altering altering modifying modifying modifying modifying transforming transforming transforming transforming converting converting converting converting adapting adapting adapting adapting adjusting adjusting adjusting adjusting amending amending amending amending revising revising revising revising reviewing reviewing reviewing reviewing updating updating updating updating upgrading upgrading upgrading upgrading improving improving improving improving enhancing enhancing enhancing enhancing boosting boosting boosting boosting raising raising raising raising increasing increasing increasing increasing augmenting augmenting augmenting augmenting enlargening enlargening enlargening enlargening expanding expanding expanding expanding extending extending extending extending broadening broadening broadening broadening widening widening widening widening deep deep deep deep profound profound profound profound intense intense intense intense strong strong strong strong powerful powerful powerful powerful forceful forceful forceful forceful vigorous vigorous vigorous vigorous dynamic dynamic dynamic dynamic energetic energetic energetic energetic lively lively lively lively vibrant vibrant vibrant vibrant spirited spirited spirited spirited animated animated animated animated brisk brisk brisk brisk active active active active busy busy busy busy bustling bustling bustling bustling hectic hectic hectic hectic fast-paced fast-paced fast-paced fast-paced rapid rapid rapid rapid quick quick quick quick swift swift swift swift speedy speedy speedy speedy fleet fleet fleet fleet nimble nimble nimble nimble agile agile agile agile spry spry spry spry lithe lithe lithe lithe limber limber limber limber supple supple supple supple flexible flexible flexible flexible pliable pliable pliable pliable bendable bendable bendable bendable malleable malleable malleable malleable adaptable adaptable adaptable adaptable versatile versatile versatile versatile resourceful resourceful resourceful resourceful ingenious ingenious ingenious ingenious inventive inventive inventive inventive innovative innovative innovative innovative original original original original novel novel novel novel new new new new fresh fresh fresh fresh modern modern modern modern contemporary contemporary contemporary contemporary current current current current up-to-date up-to-date up-to-date up-to-date state-of-the-art state-of-the-art state-of-the-art state-of-the-art cutting-edge cutting-edge cutting-edge cutting-edge leading leading leading leading pioneering pioneering pioneering pioneering trailblazing trailblazing trailblazing trailblazing groundbreaking groundbreaking groundbreaking groundbreaking revolutionary revolutionary revolutionary revolutionary radical radical radical radical transformative transformative transformative transformative progressive progressive progressive progressive forward-thinking forward-thinking forward-thinking forward-thinking advanced advanced advanced advanced sophisticated sophisticated sophisticated sophisticated complex complex complex complex intricate intricate intricate intricate elaborate elaborate elaborate elaborate detailed detailed detailed detailed comprehensive comprehensive comprehensive comprehensive exhaustive exhaustive exhaustive exhaustive thorough thorough thorough thorough complete complete complete complete full full full full all-encompassing all-encompassing all-encompassing all-encompassing inclusive inclusive inclusive inclusive embracing embracing embracing embracing covering covering covering covering encompassing encompassing encompassing encompassing spanning spanning spanning spanning bridging bridging bridging bridging connecting connecting connecting connecting linking linking linking linking joining joining joining joining uniting uniting uniting uniting bringing together bringing together bringing together bringing together combining combining combining combining integrating integrating integrating integrating blending blending blending blending merging merging merging merging amalgamating amalgamating amalgamating amalgamating fusing fusing fusing fusing coalescing coalescing coalescing coalescing consolidating consolidating consolidating consolidating centralizing centralizing centralizing centralizing concentrating concentrating concentrating concentrating focusing focusing focusing focusing specializing specializing specializing specializing devoting devoting devoting devoting dedicat</p>
