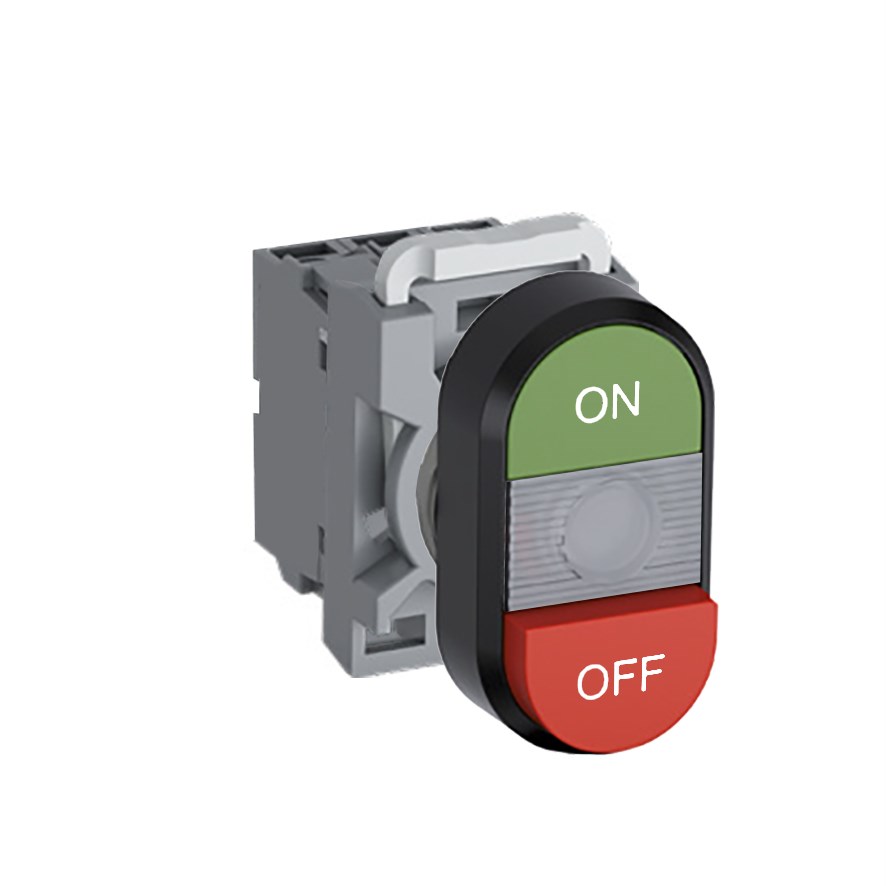

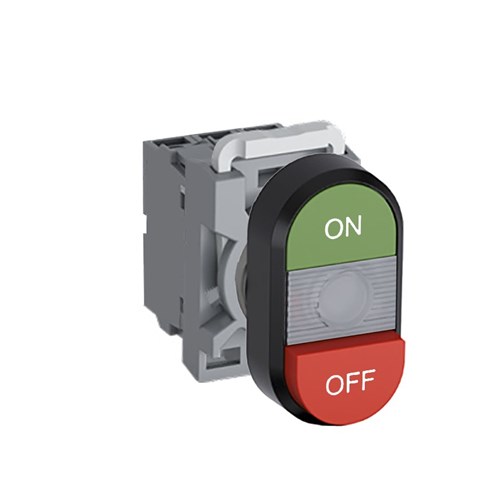

ABB MPDIECGRO611 Illuminated Double Pushbutton Kit Flush/Extended Clear On/Off Green/Red 220VDC 1NO+1NC LED Block

Product Code: MPDIECGRO611

  • Illuminated with built-in LED for visibility
  • IP66 front protection for harsh environments
  • Operates in -25 to 70°C temperature range
  • Suitable for mining, construction industries
  • Includes operator, contact block & holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Clear
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Clear
Lamp Type Built-in LED
Legend On (Upper), Off (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This accessory is designed to meet the robust demands of mining, construction, and heavy industry applications. With a rated voltage of 220 VDC, it ensures reliable performance in challenging environments. The illumination feature is powered by a built-in LED, providing clear visibility with its clear lamp color.</p><p>Engineered for durability, the product boasts an impressive degree of protection with IP66 at the front and IP20 at the terminal. This makes it resistant to dust ingress and powerful water jets from any direction, ensuring longevity even under harsh conditions.</p><p>Compliance with multiple standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others guarantees that this accessory adheres to international safety and operational benchmarks. It has also been tested under UL 508 and CSA C22.2 No. 14 standards for North American markets.</p><p>The device operates efficiently within a wide ambient temperature range from -25 to 70 degrees Celsius, making it suitable for various climatic conditions. Its rated insulation voltage stands at an impressive 690 V while offering a rated impulse withstand voltage of up to 6 kV—ensuring superior electrical insulation properties.</p><p>Featuring a contact configuration of 1NO+1NC (normally open plus normally closed), this accessory provides versatile control options tailored for complex industrial setups. The actuator type is adaptable with both flush and extended options available depending on installation requirements.</p><p>The button comes in green for &amp;#39;On&amp;#39; (upper) indication and red for &amp;#39;Off&amp;#39; (lower), aligned with standard safety protocols using color-coded signals that enhance user interaction efficiency. The legend markings further aid in quick identification during operation.</p><p>Constructed with plastic bezel material around a cutout size of 22 mm, it offers ease in integration into existing panels or systems without compromising structural integrity or aesthetic appeal. The light blocks are comprised of an LED block type which contributes to energy efficiency while maintaining bright illumination levels necessary for industrial settings.</p><p>Included components such as the operator unit itself along with contact block holder ensure comprehensive setup straight out-of-the-box—streamlining installation processes significantly reducing downtime associated commonly found across similar products within this category.</p><p>Overall this accessory represents dependable functionality backed by rigorous testing against industry norms making it ideal choice professionals seeking reliable solutions their technical operations Manufacturer Part Number: [not provided].</p>
