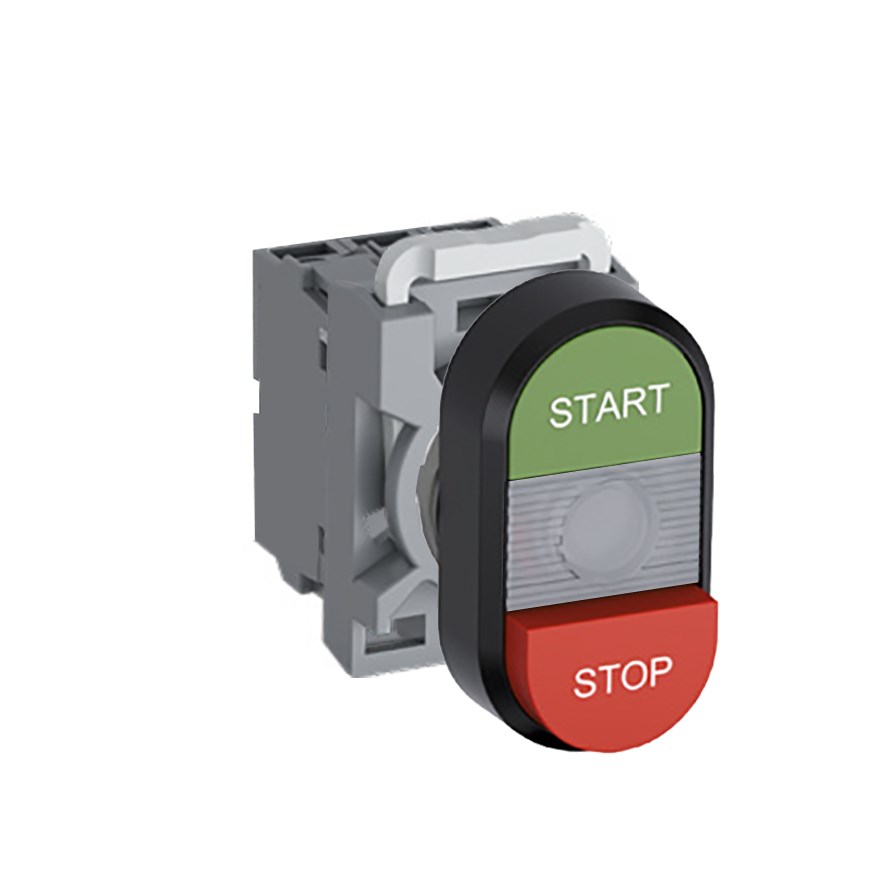

ABB MPDIECGRS102 Illuminated Double Pushbutton Kit Flush/Extended Clear Start/Stop Green/Red 24VAC/DC 2NC

Product Code: MPDIECGRS102

  • 24 VAC/DC illuminated accessory with LED lamp
  • IP66 front protection for harsh environments
  • Operates in -25 to 70°C temperature range
  • Includes operator, contact block, and LED block
  • Suitable for mining and heavy industry use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Clear
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Clear
Lamp Type Built-in LED
Legend Start (Upper), Stop (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to industrial and commercial applications, having reliable and robust accessories is crucial. This particular accessory is designed for those who value durability and performance in demanding environments such as mining, construction, and heavy industry. It operates efficiently at a rated voltage of 24 VAC/DC, making it versatile for various setups.</p><p>The product boasts an impressive degree of protection with IP66 at the front and IP20 at the terminal, ensuring resilience against dust and powerful water jets while maintaining safety standards. These attributes are backed by compliance with rigorous international standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications.</p><p>Designed to perform in ambient temperatures ranging from -25 to 70 degrees Celsius, this accessory can withstand harsh conditions without compromising functionality. The rated insulation voltage stands at a solid 690 V with a rated impulse withstand voltage of up to 6 kV – factors that ensure reliability in high-demand settings.</p><p>Its contact configuration features two normally closed (2NC) contacts which provide secure operations when needed most. The actuator type offers flexibility between flush or extended options depending on your specific requirements.</p><p>Illumination is provided by a built-in LED lamp with clear lamp colour enhancing visibility while reducing energy consumption over time. The legend markings include &amp;quot;Start&amp;quot; on the upper part and &amp;quot;Stop&amp;quot; on the lower part of the button – practical for instant recognition during operation.</p><p>Constructed with a plastic bezel material for longevity under tough conditions, this accessory fits seamlessly into standard cutout sizes of 22 mm ensuring compatibility across installations. Upper green button colour paired with lower red adds intuitive visual cues that align with common operational practices.</p><p>The device includes essential components like an operator unit contact block holder along with an LED block ensuring you have everything necessary right out of the box simplifying installation processes significantly.</p><p>This accessory combines practicality efficiency meeting stringent industry demands without sacrificing ease-of-use or safety making it an ideal choice for professionals seeking dependable solutions within their technical frameworks.</p>
