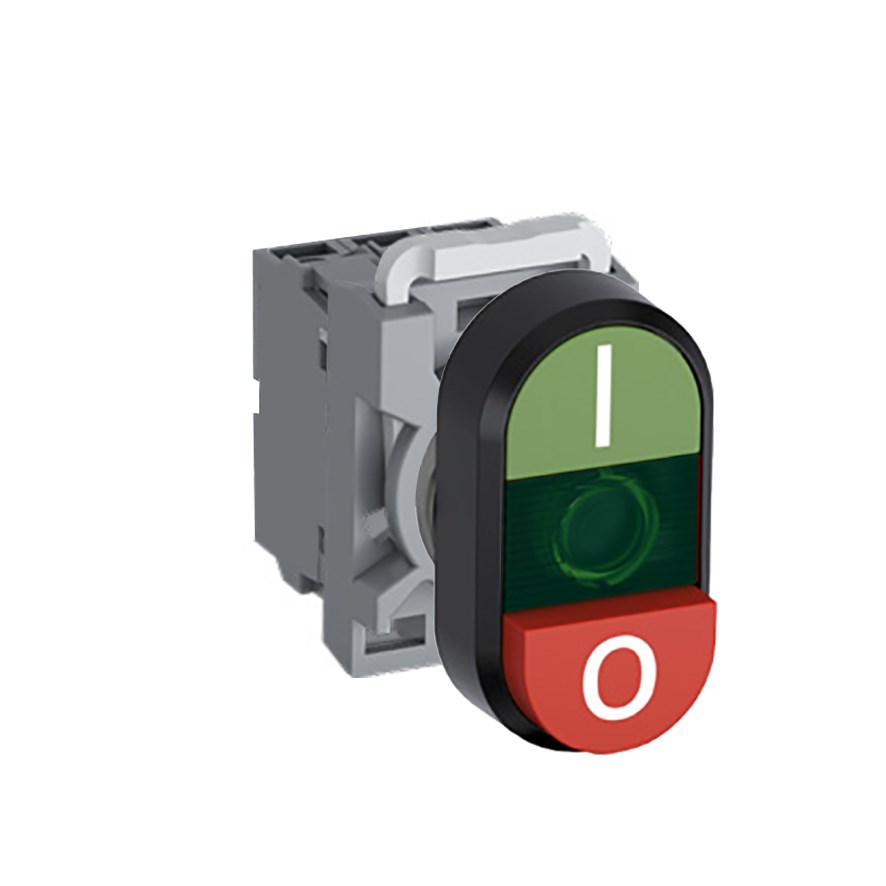

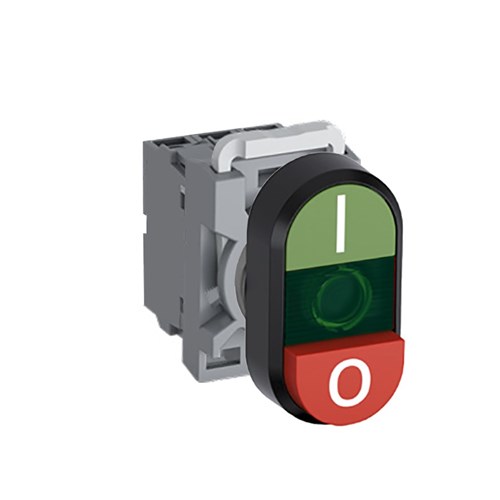

ABB MPDIEGGRI402 Illuminated Double Pushbutton Kit Flush/Extended Green I/O Green/Red 110VAC/DC 2NC LED Block

Product Code: MPDIEGGRI402

  • Illuminated accessory with built-in LED
  • IP66 front protection for durability
  • Operates at -25 to 70°C ambient temp
  • Suitable for mining, construction, heavy industries
  • Includes operator, contact block, and holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Green
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend I (Upper), O (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When working in demanding environments such as mining, construction, or heavy industry, having reliable and robust equipment is essential. This accessory product offers a comprehensive solution for those seeking durability and efficiency. With its rated voltage of 110 VAC/DC and built-in LED illumination, it ensures visibility and performance even under challenging conditions.</p><p>The product&amp;#39;s design incorporates a high degree of protection with IP66 on the front side and IP20 at the terminal. This makes it suitable for harsh environments where dust and water ingress can be a concern. The standards and approvals it meets, including EN IEC 60947-1, UL 508, and CSA C22.2 No. 14 among others, further attest to its reliability and compliance with international safety norms.</p><p>Operating efficiently within an ambient temperature range from -25 to 70 degrees Celsius, this accessory is versatile enough for use in various climates without compromising functionality. It features a rated insulation voltage of 690 V along with a rated impulse withstand voltage of 6 kV—key specifications that ensure electrical safety during operation.</p><p>The contact configuration is designed as 2NC (two normally closed contacts), providing dependable control options suited to industrial applications. Its actuator type allows for both flush or extended operations depending on user requirements.</p><p>A notable feature includes its dual-color button system: green on top indicating &amp;#39;I&amp;#39; (on) and red below marked &amp;#39;O&amp;#39; (off). This clear demarcation aids operators in quickly identifying operational states at a glance—a critical factor in fast-paced work settings.</p><p>Constructed with plastic bezel material for durability while maintaining lightweight characteristics, the device fits into standard cutout sizes of 22 mm ensuring compatibility with existing panels or systems without needing additional modifications.</p><p>The light blocks utilize an LED block type offering long-lasting illumination that outperforms traditional lighting solutions both in energy efficiency and lifespan—an important consideration when aiming to reduce maintenance downtime.</p><p>Included components such as the operator unit itself alongside contact blocks, holders, and LED blocks mean installation is straightforward—saving time during setup or replacement procedures.</p><p>Overall this accessory provides an effective solution tailored for industries requiring high-performance products capable of enduring tough operational demands while ensuring user safety through stringent adherence to recognized standards.</p>
