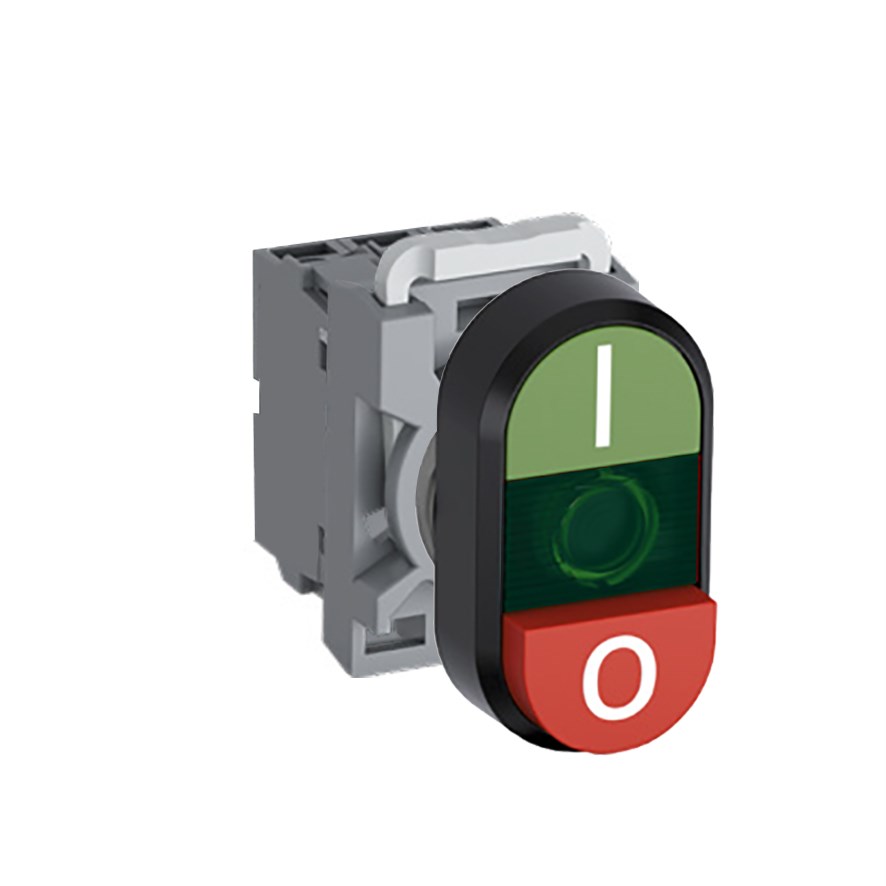

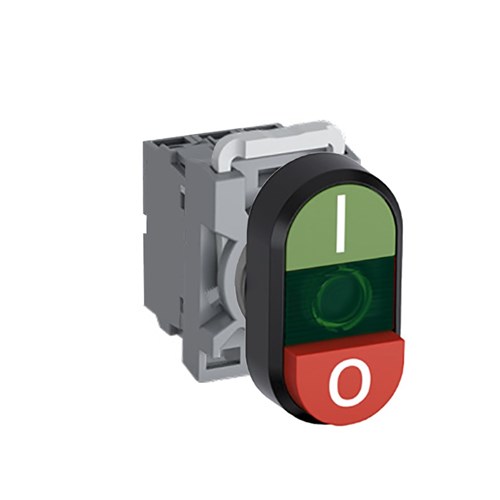

ABB MPDIEGGRI602 Illuminated Double Pushbutton Kit Flush/Extended Green I/O Green/Red 220VDC 2NC LED Block

Product Code: MPDIEGGRI602

  • Illuminated accessory with built-in LED
  • IP66 front protection for durability
  • Operates from -25 to 70°C ambient temp
  • Suitable for mining & heavy industry use
  • Includes operator, contact block & holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Green
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend I (Upper), O (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to robust and reliable accessories for industrial applications, this product stands out as a solid choice. Designed specifically for demanding environments such as mining, construction, and heavy industry, it combines durability with essential functionality. </p><p>The accessory operates at a rated voltage of 220 VDC and features an illuminated design that enhances visibility in various settings. Its degree of protection is impressive, with IP66 at the front ensuring excellent resistance against dust and water ingress, while IP20 at the terminal provides adequate safety from touch by fingers or similar objects.</p><p>Meeting stringent standards like EN IEC 60947-1 and UL 508 among others ensures its compliance with international safety and performance benchmarks. This is crucial for professionals who prioritize adherence to global standards in their operations.</p><p>With an ambient temperature range of -25 to 70 degrees Celsius, this product is well-suited for diverse environmental conditions. The rated insulation voltage of 690 V further underscores its robustness in handling high-voltage applications safely.</p><p>The contact configuration includes two normally closed (2NC) contacts which are ideal for secure circuit interruption when needed. It also boasts a rated impulse withstand voltage of 6 kV, indicating its capability to handle transient overvoltages effectively.</p><p>The actuator type offers versatility with both flush and extended options available depending on user preference or specific application needs. The built-in LED lamp provides clear indication with green illumination enhancing operational clarity.</p><p>A plastic bezel material ensures lightweight yet sturdy construction while maintaining cost-effectiveness without compromising quality. The cutout size is standardized at 22 mm facilitating easy integration into existing systems or panels.</p><p>For ease of identification during operation, the button features a dual-color scheme: green on the upper part marked &amp;#39;I&amp;#39; for &amp;#39;on&amp;#39;, and red on the lower part marked &amp;#39;O&amp;#39; for &amp;#39;off&amp;#39;. This intuitive design aids quick decision-making under pressure in industrial settings where time is critical.</p><p>Included components such as the operator, contact block, contact block holder, and LED block make installation straightforward while ensuring all necessary parts are readily available upon purchase.</p><p>Overall, this accessory&amp;#39;s combination of technical specifications makes it suitable not only for harsh industrial environments but also aligns well with professional requirements seeking reliability coupled with practical functionality.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
