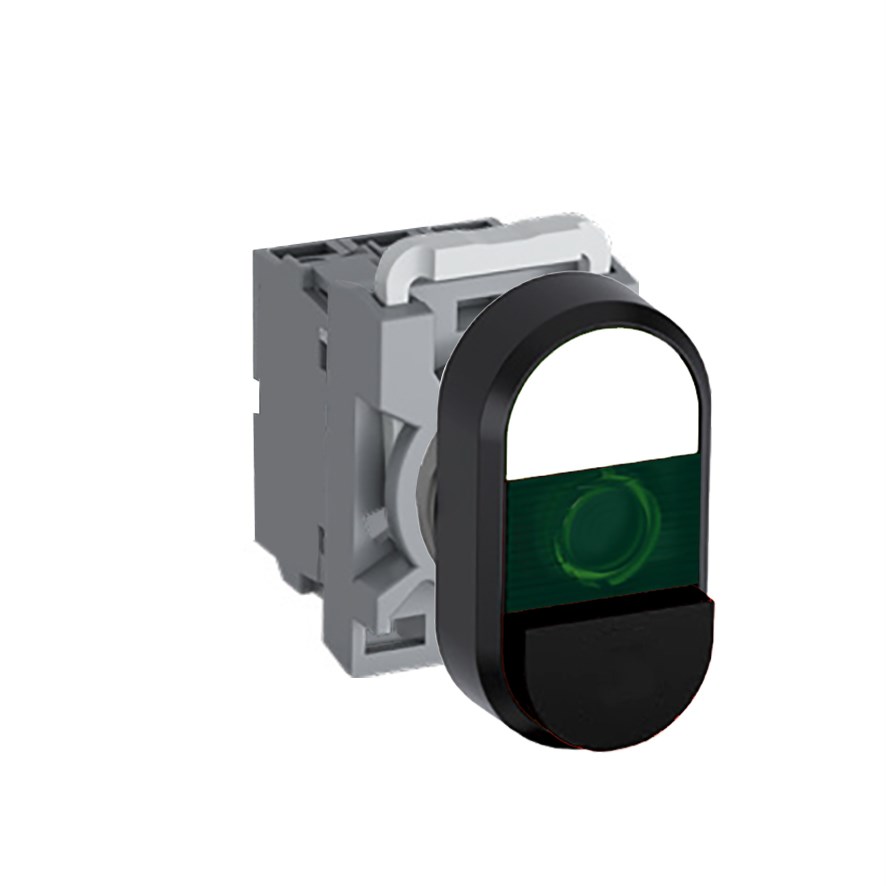

ABB MPDIEGWB420 Illuminated Double Pushbutton Kit Flush/Extended Green White/Black 110VAC/DC 2NO LED Block

Product Code: MPDIEGWB420

  • Illuminated with built-in green LED
  • IP66 front protection for rugged use
  • Operates in -25 to 70°C temperatures
  • Suitable for mining, construction industries
  • Includes operator and contact block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Green
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend No Text
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to robust and reliable accessories for industrial applications, this product stands out as a versatile solution for those in mining, construction, and heavy industry sectors. Built with precision and adherence to stringent standards, it ensures safety and efficiency in demanding environments.</p><p>Operating at a rated voltage of 110 VAC/DC, this accessory is designed to handle the rigors of industrial use. Its illumination feature is powered by a built-in LED lamp that emits a green light, offering clear visibility even in challenging conditions. The button&amp;#39;s design includes an upper white section and lower black section, providing intuitive operation.</p><p>The product boasts a high degree of protection with an IP66 rating on the front side, safeguarding against dust ingress and powerful water jets. The terminal side has an IP20 rating, ensuring basic protection against finger contact. This makes it suitable for both indoor and outdoor applications where exposure to harsh elements is common.</p><p>Conforming to multiple international standards such as EN IEC 60947-1, EN IEC 60947-5-1/5-5 among others, it assures compliance with global electrical safety norms. Additionally, certifications from UL 508 and CSA C22.2 No. 14 further enhance its credibility across different regions.</p><p>With an ambient temperature range from -25&amp;#176;C to 70&amp;#176;C, this accessory maintains performance integrity across various climates—whether it&amp;#39;s the coldest mines or the hottest construction sites. Its rated insulation voltage stands at an impressive 690 V while supporting a rated thermal current of up to 10 A.</p><p>The actuator type offers flexibility between flush or extended configurations depending on application needs. The contact configuration features two normally open (2NO) contacts which are ideal for straightforward circuit designs requiring simple open-close operations.</p><p>For added durability and ease of installation, the bezel material is made from resilient plastic while accommodating a standard cutout size of 22 mm—a common specification that aligns well with existing setups without needing extensive modifications.</p><p>Included components like the operator unit along with contact block holder ensure comprehensive functionality right out of the box—eliminating additional purchases or complex assembly steps often associated with similar products.</p><p>In conclusion, this accessory combines reliability with practical design elements suited for heavy-duty applications across diverse industries—making it not just another component but rather an integral part of your operational infrastructure.</p>
