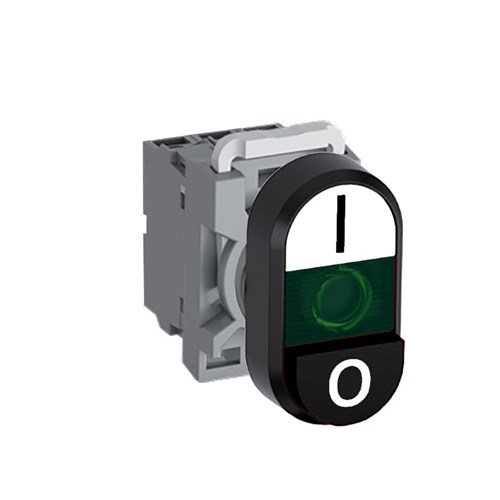

ABB MPDIEGWBI102 Illuminated Double Pushbutton Kit Flush/Extended Green I/O White/Black 24VAC/DC 2NC LED Block

Product Code: MPDIEGWBI102

  • Illuminated with built-in green LED
  • IP66 front protection for durability
  • Operates at 24 VAC/DC rated voltage
  • Suitable for mining, construction, heavy industry
  • Includes operator, contact block, and LED block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Green
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend I (Upper), O (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This accessory is a versatile component designed for demanding environments, particularly in mining, construction, and heavy industry applications. Its robust build and reliable performance make it a suitable choice for professionals seeking dependable operation in challenging conditions.</p><p>Key to its functionality is the rated voltage of 24 VAC/DC, ensuring compatibility with various industrial systems. The accessory&amp;#39;s illumination feature is powered by a built-in green LED lamp, providing clear visibility even in low-light settings. This makes it an excellent fit for operations where clarity and precision are paramount.</p><p>The product boasts a high degree of protection with an IP66 rating on the front and IP20 at the terminal. This means it is well-protected against dust ingress and water jets from any direction on the front side, while maintaining adequate safety at the terminals. Such specifications are crucial for industries where exposure to harsh elements is frequent.</p><p>Compliance with numerous standards such as EN IEC 60947-1, EN IEC 60947-5-1, UL 508 among others ensures that this product meets international safety and quality benchmarks. These certifications provide peace of mind that it adheres to rigorous testing protocols.</p><p>The accessory operates efficiently within an ambient temperature range of -25 to 70 degrees Celsius, making it adaptable to both cold and hot environments without compromising performance. With a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV, this component can handle significant electrical stress while maintaining operational integrity.</p><p>Its contact configuration includes two normally closed (2NC) contacts which are essential for many control applications requiring secure disconnection under load conditions. The actuator type offers both flush and extended options catering to different ergonomic preferences or panel design requirements.</p><p>A notable feature is its dual-color button design; white on top marked with &amp;quot;I&amp;quot; for ON operations and black below marked &amp;quot;O&amp;quot; indicating OFF status. This intuitive legend aids operators in quick decision-making processes during critical tasks.</p><p>The bezel material made from plastic ensures durability while keeping weight considerations minimal—a factor often appreciated during installation or maintenance activities. Furthermore, the cutout size measures at 22 mm which aligns with standard sizes used across various equipment panels facilitating easy integration into existing setups.</p><p>Included components such as the operator unit contact block holder along with LED block ensure that users have all necessary parts ready out-of-the-box minimizing downtime associated with sourcing additional items separately.</p><p>Overall this accessory stands out due its comprehensive feature set tailored specifically towards rugged industrial use-cases offering reliability backed by stringent compliance standards—an ideal choice when precision matters most!</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
