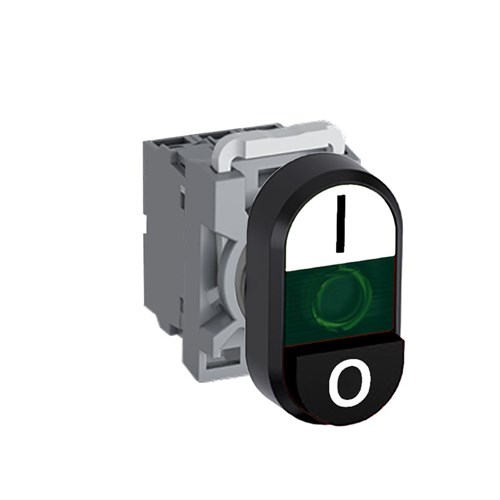

ABB MPDIEGWBI620 Illuminated Double Pushbutton Kit Flush/Extended Green I/O White/Black 220VDC 2NO LED Block

Product Code: MPDIEGWBI620

  • 220 VDC illuminated accessory with IP66 front protection
  • Operates in -25 to 70°C for harsh environments
  • Green LED lamp with flush/extended actuator
  • 2NO contact configuration, rated at 10 A
  • Suitable for mining, construction and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Green
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend I (Upper), O (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This accessory is a robust and reliable choice for those involved in mining, construction, and heavy industry applications. Designed to withstand challenging environments, it features an IP66 front protection rating, ensuring resistance against dust and powerful water jets. The terminal side is rated at IP20, providing basic protection from finger contact.</p><p>Operating on a rated voltage of 220 VDC with a built-in LED illumination system, this product ensures clear visibility even in low-light conditions. The lamp emits a green hue which can be crucial for signaling purposes in industrial settings. Its flush/extended actuator type offers versatility depending on user preference or specific application needs.</p><p>The accessory complies with multiple standards and approvals including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others. These certifications attest to its safety and reliability across various international markets such as the UL 508 and CSA C22.2 No. 14.</p><p>Engineered to operate within a broad ambient temperature range from -25 to 70 degrees Celsius, this product adapts well to both harsh outdoor environments and controlled indoor settings. With a rated insulation voltage of 690 V and an impressive rated impulse withstand voltage of 6 kV, it provides enhanced electrical safety margins.</p><p>The contact configuration includes two normally open (2NO) contacts capable of handling up to a rated thermal current of 10 A. This makes it suitable for controlling circuits that require reliable performance under load conditions.</p><p>Its design incorporates practical features like the plastic bezel material which adds durability while maintaining lightweight characteristics essential for easy installation into panels with a cutout size of 22 mm. The button&amp;#39;s aesthetic appeal is enhanced by its contrasting white upper section marked &amp;#39;I&amp;#39; (for on) and black lower section marked &amp;#39;O&amp;#39; (for off), making operation intuitive even at first glance.</p><p>Included components such as the operator unit itself along with contact block holder ensure straightforward assembly without additional purchases necessary—saving time during setup phases common in project timelines where efficiency matters most.</p><p>Overall this accessory delivers dependable functionality backed by rigorous testing standards making sure your operations run smoothly day after day regardless if you&amp;#39;re deep underground or high above ground level working towards completion deadlines set forth under demanding circumstances often encountered within these sectors requiring nothing less than top-tier equipment solutions tailored specifically around their unique challenges faced daily out there amongst them all who rely upon products like yours truly standing ready steadfastly serving purpose intended every step way forward ahead together united achieving goals set forth hand-in-hand always ever onward upward bound indeed!</p>
