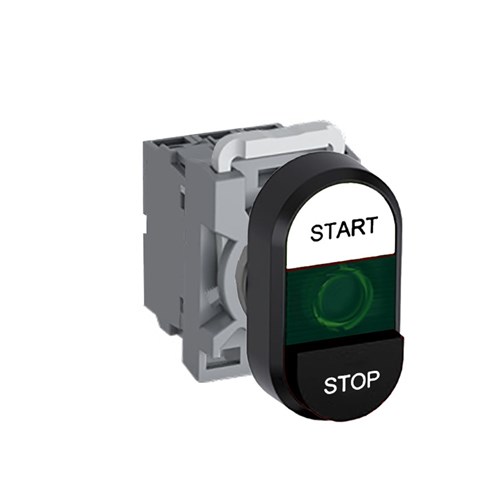

ABB MPDIEGWBS602 Illuminated Double Pushbutton Kit Flush/Extended Green Start/Stop White/Black 220VDC 2NC

Product Code: MPDIEGWBS602

  • Suitable for mining and construction use
  • IP66 front protection for harsh environments
  • Operates in -25 to 70°C temperature range
  • Built-in green LED illumination
  • 22 mm cutout size with flush/extended actuator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Green
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend Start (Upper), Stop (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This accessory is designed for demanding environments, making it a reliable choice for mining, construction, and heavy industry applications. Engineered with precision, this product operates efficiently at a rated voltage of 220 VDC and features an illuminated design that enhances visibility in various operational settings.</p><p>Durability is ensured with its impressive degree of protection: IP66 on the front to resist dust and water ingress, and IP20 at the terminal. This makes it suitable for harsh conditions where reliability is paramount. The accessory adheres to multiple international standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, ensuring compliance with global safety requirements.</p><p>Performance remains consistent across a wide ambient temperature range from -25&amp;#176;C to 70&amp;#176;C. With a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV, this accessory can handle high electrical stresses without compromising safety or functionality.</p><p>The contact configuration includes two normally closed (2NC) contacts which are essential for secure operations. The actuator type offers flexibility with both flush and extended options available depending on user preference or specific application needs.</p><p>A built-in LED provides illumination in green light color which aids in quick status identification during operation. It uses a robust LED block known for longevity and energy efficiency. The legend markings are clear with &amp;quot;Start&amp;quot; indicated on the upper section and &amp;quot;Stop&amp;quot; on the lower section—facilitating straightforward operation even under challenging conditions.</p><p>Constructed from durable plastic material, the bezel ensures long-lasting performance while maintaining aesthetic appeal. Designed to fit into standard cutouts of size 22 mm means integration into existing systems is seamless.</p><p>The button colors are strategically chosen; white for the upper part indicating &amp;quot;Start&amp;quot; and black for the lower part denoting &amp;quot;Stop.&amp;quot; This color differentiation helps prevent operational errors by providing intuitive visual cues.</p><p>Included in this package are essential components such as an operator unit, contact block holder along with the LED block making installation straightforward without needing additional purchases or modifications.</p><p>In essence, this product stands out as an efficient solution tailored specifically towards industries requiring robust yet adaptable accessories capable of enduring rigorous operational demands while maintaining compliance with stringent standards like UL 508 and CSA C22.2 No.14 among others—a testament to its quality engineering suitable for Australian technical audiences seeking dependable industrial solutions.</p>
