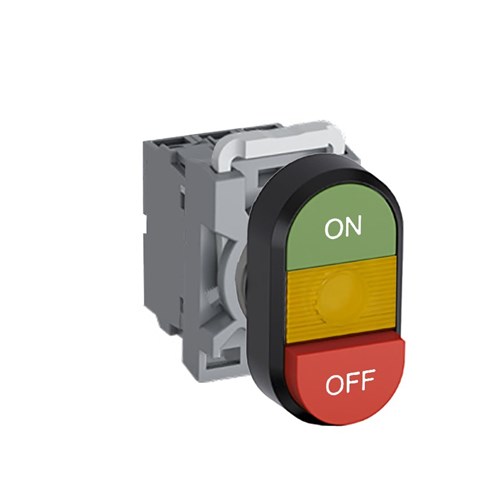

ABB MPDIEYGRO120 Illuminated Double Pushbutton Kit Flush/Extended Yellow On/Off Green/Red 24VAC/DC 2NO LED Block

Product Code: MPDIEYGRO120

  • Illuminated with built-in yellow LED
  • IP66 front protection, durable in harsh conditions
  • Operates at 24 VAC/DC, versatile use
  • Suitable for mining and heavy industry
  • Flush/extended actuator for easy operation
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Yellow
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Yellow
Lamp Type Built-in LED
Legend On (Upper), Off (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>If you&amp;#39;re in the mining, construction, or heavy industry sectors and are on the lookout for a reliable accessory that meets your technical needs, this product could be just what you need. Designed with practicality and durability in mind, it offers a range of features that make it suitable for demanding environments.</p><p>This accessory operates efficiently at a rated voltage of 24 VAC/DC. It&amp;#39;s illuminated with a built-in LED lamp, which not only ensures visibility but also adds to its operational efficiency. The lamp emits a yellow light, making it easy to identify even in dimly lit conditions. </p><p>Built to withstand harsh environments, the product boasts an impressive degree of protection: IP66 at the front and IP20 at the terminal. This means it&amp;#39;s well-protected against dust and water ingress from all directions when installed correctly—ideal for tough industrial settings.</p><p>The accessory complies with several standards and approvals including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others. These certifications underline its quality and reliability in various applications.</p><p>Temperature resilience is another strong suit; it operates effectively within an ambient temperature range of -25 to 70&amp;#176;C. This flexibility ensures consistent performance despite fluctuations in environmental conditions.</p><p>With a rated insulation voltage of 690 V and an impulse withstand voltage of 6 kV, this product is engineered for safety under high-stress conditions. The contact configuration includes two normally open (2NO) contacts capable of handling up to 10 A thermal current—suitable for robust industrial use.</p><p>It features both flush and extended actuator types depending on your installation preferences while maintaining ease of operation through its intuitive design marked by &amp;#39;On&amp;#39; (upper) and &amp;#39;Off&amp;#39; (lower) legends on the button interface.</p><p>The bezel material is plastic—a practical choice balancing cost-effectiveness with adequate strength—and fits into a standard cutout size of 22 mm ensuring compatibility with existing setups without requiring modifications.</p><p>The button itself comes color-coded: green for &amp;#39;On&amp;#39; (upper) operations and red for &amp;#39;Off&amp;#39; (lower), providing clear visual cues during usage—an essential feature when quick decision-making is needed onsite.</p><p>Included in the package are an operator unit along with contact block components such as the contact block holder plus LED block—all designed to simplify assembly while maintaining structural integrity over time within rugged workspaces synonymous with mining or construction sites where reliability cannot be compromised upon lightly given their critical nature towards productivity goals being met successfully every day consistently without fail whatsoever!</p>
