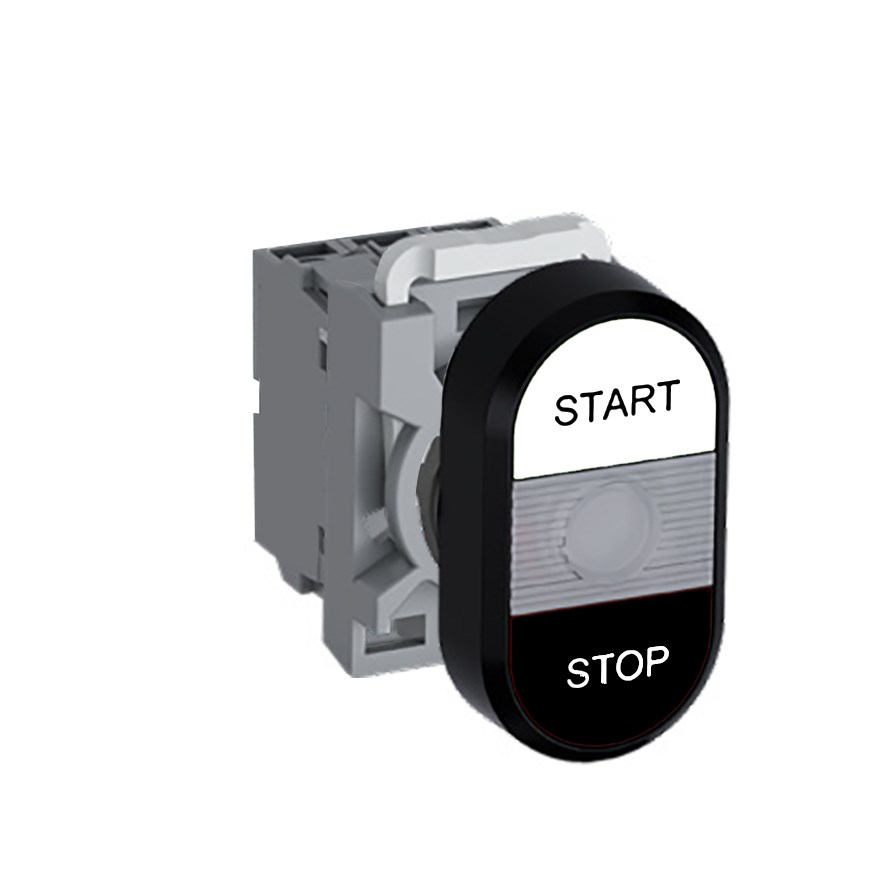

ABB MPDIFCWBS020 Illuminated Double Pushbutton Kit Flush/Flush Clear Start/Stop White/Black 12VAC/DC 2NO LED Block

Product Code: MPDIFCWBS020

  • Illuminated with built-in LED for clear visibility
  • Durable IP66 front protection, ideal for harsh environments
  • Operates at 12 VAC/DC with a robust 690 V insulation voltage
  • Designed for mining, construction, and heavy industry use
  • Features white 'Start' and black 'Stop' buttons
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Clear
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Clear
Lamp Type Built-in LED
Legend Start (Upper), Stop (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 12 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When considering accessories for industrial and commercial applications, especially in sectors like mining, construction, and heavy industry, reliability, and compliance with standards are paramount. This accessory stands out with its robust design and comprehensive feature set tailored to meet demanding environments.</p><p>Designed for versatility, this illuminated accessory operates at a rated voltage of 12 VAC/DC. Its illumination is powered by a built-in LED lamp that emits a clear light, ensuring visibility even in low-light conditions. The accessory boasts a flush actuator type that combines both form and function seamlessly.</p><p>One of the standout features is its impressive degree of protection: IP66 at the front ensures resistance against dust ingress and powerful water jets, while IP20 at the terminal offers basic protection against finger contact. This makes it suitable for harsh environments where exposure to elements is common.</p><p>The product adheres to several rigorous standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others. It also meets UL 508 and CSA C22.2 No. 14 certifications which are essential for products used within North American markets.</p><p>With an ambient temperature range from -25 to 70 degrees Celsius, this accessory can withstand extreme temperatures without compromising performance. It has a rated insulation voltage of 690 V and an impulse withstand voltage of up to 6 kV—underscoring its capability to handle electrical surges effectively.</p><p>The contact configuration is designed as 2NO (two normally open contacts), supporting seamless integration into existing systems or new installations requiring such configurations. A rated thermal current of 10 A ensures it can handle substantial electrical loads typical in industrial settings.</p><p>For ease of installation, it fits into a standard cutout size of 22 mm—a common specification in control panels across various industries. The bezel material made from plastic provides durability while maintaining lightweight characteristics necessary for easy handling during installation or maintenance tasks.</p><p>The button&amp;#39;s dual-color scheme—white on the upper part marked &amp;quot;Start&amp;quot; and black on the lower labeled &amp;quot;Stop&amp;quot;—offers intuitive operation aligned with international color coding practices outlined in standards like EN IEC 60073.</p><p>Included components such as an operator unit along with contact block holder enhance its utility by offering everything needed for immediate setup post-purchase without additional procurement hassles.</p><p>In summary, this accessory delivers dependable performance backed by adherence to global safety standards making it ideal not only technically but also operationally sound choice across diverse industrial applications where precision matters most.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
