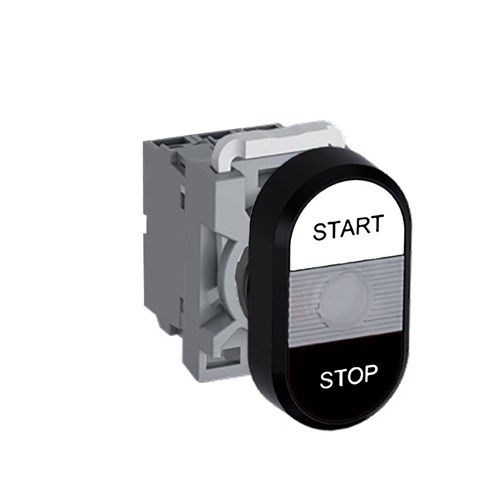

ABB MPDIFCWBS102 Illuminated Double Pushbutton Kit Flush/Flush Clear Start/Stop White/Black 24VAC/DC 2NC LED Block

Product Code: MPDIFCWBS102

  • Illuminated with built-in LED for visibility
  • IP66 front protection against dust and water
  • Operates in -25 to 70°C ambient temperature range
  • Suitable for mining, construction, heavy industry
  • Includes operator, contact block, holder, and LED block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Clear
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Clear
Lamp Type Built-in LED
Legend Start (Upper), Stop (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>For professionals in the mining, construction, and heavy industry sectors seeking a reliable accessory to enhance operational efficiency, this product offers robust features tailored to meet demanding environments. Designed with precision and adherence to international standards, it promises durability and functionality.</p><p>The accessory operates at a rated voltage of 24 VAC/DC, ensuring compatibility with various systems. Its illumination feature is powered by a built-in LED lamp that delivers clear visibility while maintaining energy efficiency. The lamp&amp;#39;s clear color ensures clarity in diverse lighting conditions.</p><p>Engineered for resilience, the product boasts an IP66 degree of protection on its front side, safeguarding against dust and powerful water jets. The terminal protection rating of IP20 further enhances its reliability in industrial settings. Compliance with standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others underscores its commitment to quality and safety.</p><p>With an impressive ambient temperature range from -25 to 70 degrees Celsius, this accessory can withstand harsh environmental conditions without compromising performance. It supports a rated insulation voltage of up to 690 V and has a rated impulse withstand voltage of 6 kV for enhanced electrical safety.</p><p>The contact configuration is designed as 2NC (normally closed), providing dependable control options for your operations. The actuator type is flush/flush which allows seamless integration into existing systems without protruding elements that could be prone to damage or accidental activation.</p><p>A notable feature includes the dual-color button design: white for &amp;#39;Start&amp;#39; (upper) and black for &amp;#39;Stop&amp;#39; (lower). This intuitive color coding aids operators in quick identification during critical tasks. Additionally, the legend marked on the bezel provides unambiguous instructions enhancing user experience.</p><p>Constructed with durable plastic material for its bezel, this component offers longevity even under rigorous use. Its compact cutout size of 22 mm makes it suitable for installations where space might be constrained but functionality cannot be compromised.</p><p>Included within this package are essential components such as the operator unit itself along with contact block holder and LED block – ensuring you have all necessary parts ready for immediate deployment upon receipt.</p><p>In summary; whether you&amp;#39;re upgrading current setups or installing new systems altogether; rest assured knowing that every aspect has been meticulously crafted keeping industrial requirements at heart whilst delivering unparalleled reliability across applications ranging from mining sites through construction projects right down into heavy industries alike!</p>
