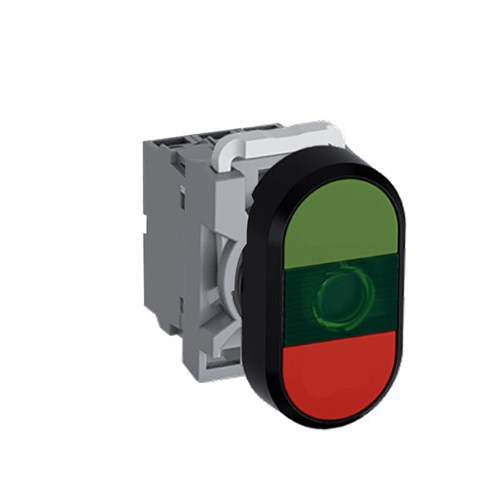

ABB MPDIFGGR002 Illuminated Double Pushbutton Kit Flush/Flush Green Green/Red 12VAC/DC 2NC LED Block

Product Code: MPDIFGGR002

  • Suitable for mining, construction, heavy industry
  • IP66 front protection for harsh environments
  • Operates at 12 VAC/DC with built-in LED illumination
  • Green/red button with flush actuator design
  • Includes operator, contact block, holder & LED block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Green
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend No Text
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 12 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When selecting components for industrial applications, it&amp;#39;s crucial to choose products that meet rigorous standards and offer reliable performance. This accessory is designed with these priorities in mind, making it suitable for demanding environments such as mining, construction, and heavy industry.</p><p>The accessory operates at a rated voltage of 12 VAC/DC and features an illuminated design to enhance visibility in various conditions. Its robust build ensures a degree of protection with IP66 on the front side and IP20 at the terminal, safeguarding against dust ingress and water jets from any direction.</p><p>Compliance with multiple international standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 along with certifications like UL 508 and CSA C22.2 No. 14 underscores its reliability across different regulatory landscapes.</p><p>This product can withstand ambient temperatures ranging from -25 to 70 degrees Celsius without compromising functionality. It boasts a rated insulation voltage of up to 690 V and can handle impulse voltages up to 6 kV — critical factors when considering electrical safety in industrial settings.</p><p>The contact configuration is set as two normally closed (2NC), offering versatility in control systems where fail-safe operation is paramount. The actuator type is flush/flush which provides a sleek yet functional interface for operators.</p><p>Equipped with green built-in LEDs for illumination, this accessory enhances operational clarity while maintaining energy efficiency. The device&amp;#39;s lamp color matches its button color scheme: green on top for go or start functions and red below typically indicating stop or emergency states.</p><p>Constructed from durable plastic material, the bezel ensures longevity even under frequent use. Designed to fit into a standard cutout size of 22 mm makes integration into existing panels straightforward.</p><p>Included within this package are essential components such as the operator unit itself alongside contact blocks plus holders ensuring you have everything required for seamless installation. The LED block included further simplifies setup by integrating lighting directly into the assembly process eliminating additional wiring complexity often associated with separate light indicators.</p><p>Overall this accessory offers an excellent balance between functionality durability compliance ease-of-use making it an ideal choice wherever reliability matters most especially within harsh operating conditions characteristic of sectors like mining construction heavy industries etc where downtime simply isn’t acceptable MPN: [Manufacturer Part Number].</p>
