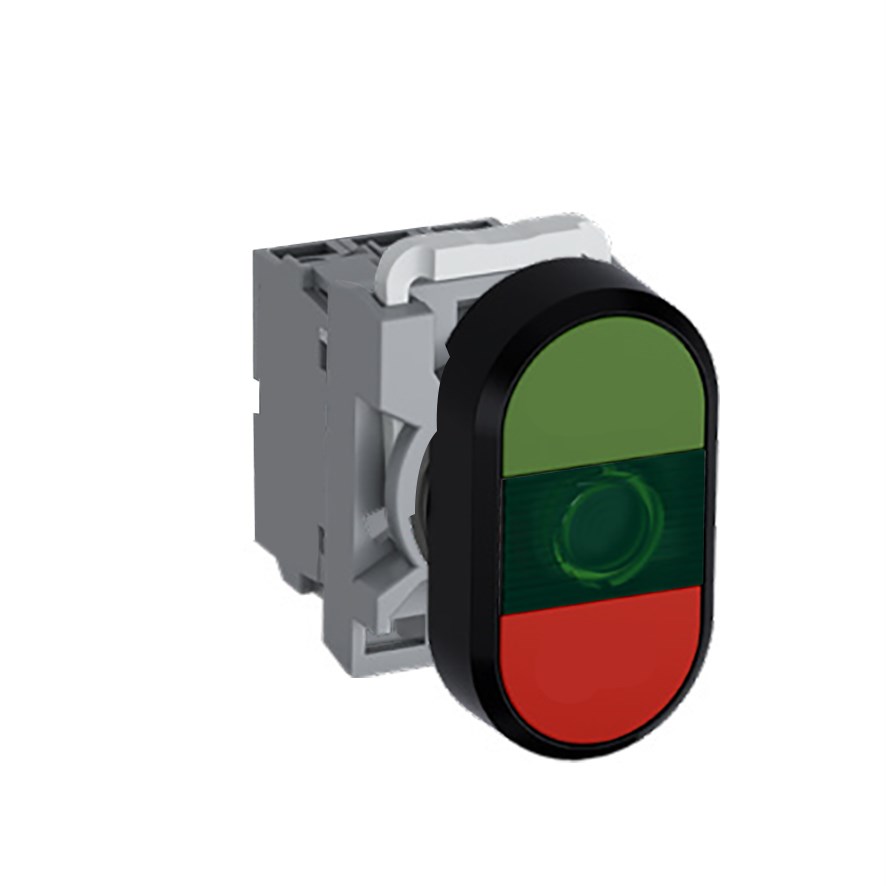

ABB MPDIFGGR102 Illuminated Double Pushbutton Kit Flush/Flush Green Green/Red 24VAC/DC 2NC LED Block

Product Code: MPDIFGGR102

  • Illuminated accessory with built-in LED
  • Operates at 24 VAC/DC, rated insulation 690 V
  • IP66 front protection, IP20 terminal
  • Suitable for mining and heavy industry use
  • Green upper/red lower button with flush actuator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Green
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend No Text
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This accessory is designed to meet the rigorous demands of industrial and commercial environments, making it a reliable choice for professionals in fields such as mining, construction, and heavy industry. With a rated voltage of 24 VAC/DC, it ensures efficient performance across various applications.</p><p>The product is illuminated with a built-in green LED lamp, providing clear visibility even in low-light conditions. The flush actuator type offers a streamlined design that complements its practical functionality. Its robust construction includes an IP66 degree of protection at the front and IP20 at the terminal, ensuring resilience against dust and water ingress while maintaining safety standards.</p><p>Engineered to withstand ambient temperatures ranging from -25 to 70 degrees Celsius, this accessory remains operational under extreme environmental conditions. It complies with multiple international standards and approvals including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others. These certifications affirm its quality and reliability in demanding settings.</p><p>The contact configuration features two normally closed (2NC) contacts which are ideal for ensuring circuit integrity when not manually actuated. Additionally, it has a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV—attributes that contribute to its high-performance capabilities under electrical stress.</p><p>With a cutout size of 22 mm and made from durable plastic bezel material, it&amp;#39;s designed for ease of installation without compromising on durability or style. The button itself displays distinct colors—green on the upper part and red on the lower part—enhancing user interaction by providing intuitive visual cues.</p><p>The light blocks are powered by an LED block type known for energy efficiency and longevity. This comprehensive package includes an operator component along with contact blocks, holders, and LED blocks—all integral parts that facilitate seamless integration into existing systems.</p><p>Designed without text legends on the button surface keeps it versatile for universal application across different sectors without necessitating customization or modification based on specific language requirements.</p><p>Overall this accessory combines practicality with ruggedness tailored specifically for industries where reliability cannot be compromised—a testament to thoughtful engineering aimed at delivering consistent results day after day regardless of challenging working conditions one might encounter in Australian industrial landscapes.</p>
