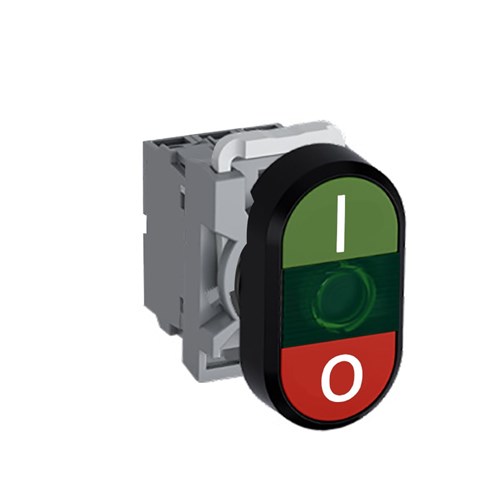

ABB MPDIFGGRI102 Illuminated Double Pushbutton Kit Flush/Flush Green I/O Green/Red 24VAC/DC 2NC LED Block

Product Code: MPDIFGGRI102

  • Illuminated accessory with 24 VAC/DC voltage
  • IP66 front protection, suitable for harsh environments
  • Operates in -25 to 70°C ambient temperature range
  • Flush actuator with green LED lamp
  • Suitable for mining and heavy industry use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Green
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend I (Upper), O (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When selecting an accessory for rigorous environments like mining, construction, and heavy industry, it is crucial to focus on durability and compliance with international standards. This particular product stands out due to its robust build and adherence to multiple safety standards. </p><p>The accessory operates at a rated voltage of 24 VAC/DC, making it versatile for various applications. It features illumination through a built-in LED lamp in green, ensuring visibility in low-light conditions. The design incorporates a flush actuator type for ease of operation.</p><p>With an IP66 protection rating at the front and IP20 at the terminal, this accessory is well-suited for challenging environments where dust and water resistance are essential. The high degree of protection ensures that the product can withstand harsh industrial settings while maintaining performance integrity.</p><p>Meeting several standards such as EN IEC 60947-1, EN IEC 60947-5-1, UL 508 among others, the product guarantees compliance with both European and North American safety regulations. This makes it reliable across different markets globally.</p><p>Temperature resilience is another key feature; operating efficiently from -25&amp;#176;C up to 70&amp;#176;C allows this product to function effectively in extreme climates without compromising reliability or safety.</p><p>The contact configuration consists of two normally closed (2NC) contacts which provide a dependable switching mechanism suitable for critical control applications. Additionally, it supports a rated thermal current of up to 10 A ensuring compatibility with various electrical systems.</p><p>For enhanced safety during transient overvoltages, the rated impulse withstand voltage is set at 6 kV providing extra protection against power surges that could potentially damage equipment.</p><p>Aesthetically designed with practicality in mind, this accessory includes a plastic bezel material offering lightweight yet durable construction. The cutout size measures at an industry-standard of 22 mm facilitating easy integration into existing panels or systems.</p><p>The button features dual coloration: green on top marked ‘I’ indicating power-on status and red below marked ‘O’ denoting power-off status which enhances operational clarity especially within complex setups where quick identification is necessary.</p><p>Included components such as operator unit contact block holder along with LED block streamline installation process reducing downtime during setup or maintenance activities thereby optimizing operational efficiency overall within industrial contexts demanding high uptime requirements consistently over time.</p>
