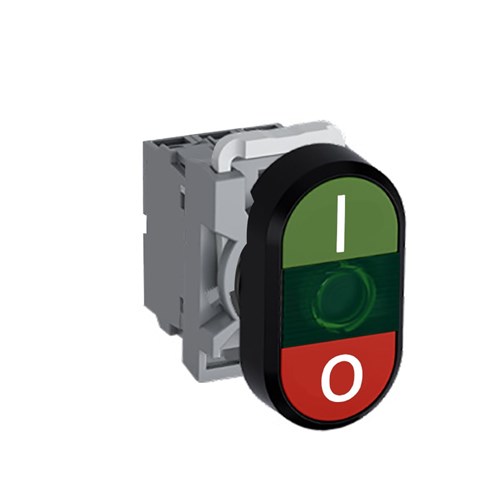

ABB MPDIFGGRI120 Illuminated Double Pushbutton Kit Flush/Flush Green I/O Green/Red 24VAC/DC 2NO LED Block

Product Code: MPDIFGGRI120

  • Illuminated with built-in green LED
  • IP66 front protection, robust for harsh environments
  • Operates at 24 VAC/DC with 2NO contacts
  • Suitable for mining and construction sectors
  • Includes operator, contact block, and holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Green
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend I (Upper), O (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to selecting reliable accessories for demanding industrial environments, this accessory stands out with its robust design and technical specifications. Designed for use in mining, construction, and heavy industry applications, it offers a blend of durability and functionality.</p><p>The accessory operates at a rated voltage of 24 VAC/DC, ensuring compatibility with various electrical systems. Its illumination feature is powered by a built-in LED lamp that emits a green light, making it easy to identify in diverse settings. The actuator type is flush/flush, providing a seamless interface that&amp;#39;s both intuitive and efficient.</p><p>With an IP66 rating on the front side and IP20 at the terminal, this product ensures excellent protection against dust and water ingress, suitable for harsh conditions. It complies with multiple international standards such as EN IEC 60947-1 and UL 508 among others, affirming its quality and safety credentials.</p><p>The ambient temperature range extends from -25 to 70 degrees Celsius, allowing operation in extreme climates without compromising performance. The accessory features a rated insulation voltage of 690 V and can withstand impulse voltages up to 6 kV—an assurance of resilience against electrical surges.</p><p>Its contact configuration includes two normally open (2NO) contacts designed to handle a rated thermal current of up to 10 A efficiently. The button sports dual colors: green on the upper section marked &amp;#39;I&amp;#39; for ON operations and red on the lower section labeled &amp;#39;O&amp;#39; for OFF functions—facilitating clear operational cues.</p><p>Constructed from plastic bezel material with a cutout size of 22 mm, installation is straightforward yet secure. Additionally included are crucial components such as the operator unit, contact block holder, contact block itself as well as an LED block—all contributing towards streamlined assembly or maintenance processes.</p><p>In summary this accessory combines practical design elements with rigorous adherence to safety standards making it an ideal choice when reliability cannot be compromised across various industrial sectors where consistent performance matters most</p>
