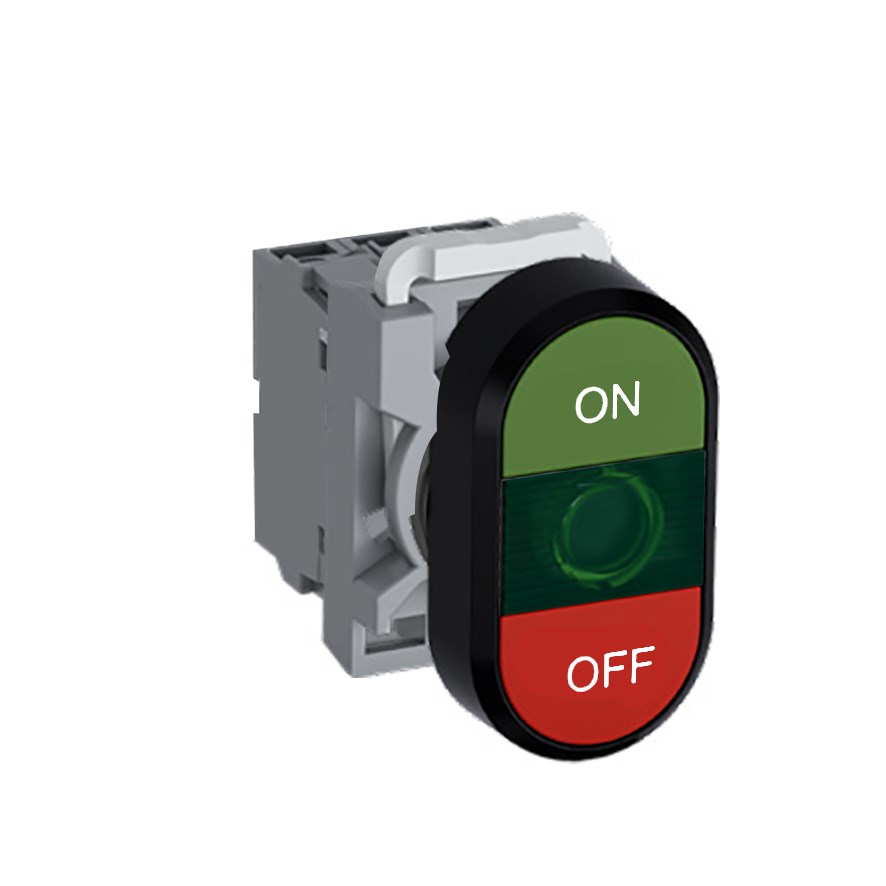

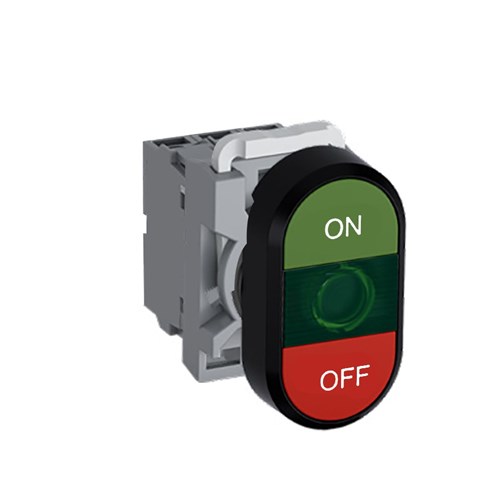

ABB MPDIFGGRO702 Illuminated Double Pushbutton Kit Flush/Flush Green On/Off Green/Red 230VAC/DC 2NC LED Block

Product Code: MPDIFGGRO702

  • Suitable for mining and construction industries
  • Illuminated with built-in green LED
  • Durable IP66 front protection rating
  • Operates in -25 to 70°C temperature range
  • Features flush actuator design
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Green
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend On (Upper), Off (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to selecting the right accessory for demanding industrial applications, this product stands out with its practical features and robust construction. Designed specifically for mining, construction, and heavy industry environments, it offers reliability and functionality where you need it most.</p><p>With a rated voltage of 230 VAC/DC, this accessory ensures compatibility with standard power systems. The illumination feature is powered by a built-in LED lamp that emits a green light, providing clear visibility even in low-light conditions. This makes it ideal for situations where quick visual confirmation is necessary.</p><p>The degree of protection provided by this product is noteworthy: an IP66 rating at the front safeguards against dust and powerful water jets, while the IP20 rating at the terminals ensures basic protection from finger contact. These ratings make it suitable for rugged environments where exposure to harsh elements can be expected.</p><p>Conforming to multiple standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others, this product meets international safety and performance criteria. It also holds approvals under UL 508 and CSA C22.2 No. 14 standards which are crucial for operations in North America.</p><p>Operating efficiently across a wide ambient temperature range of -25 to 70 degrees Celsius adds another layer of versatility to its application potential. The rated insulation voltage of 690 V and rated impulse withstand voltage of 6 kV ensure that it can handle electrical surges effectively.</p><p>Featuring a contact configuration of 2NC (normally closed), users can rely on its dependable performance in controlling circuits or machinery shutdowns when required. The actuator type is flush/flush providing ease of use without protruding parts that could be accidentally engaged or damaged.</p><p>This accessory boasts a bezel made from durable plastic material enhancing its longevity while maintaining lightweight characteristics. With cutout size specifications at 22 mm, installation into panels or control boards becomes straightforward without extensive modifications needed.</p><p>The button itself presents dual colors: green on the upper part indicating &amp;#39;On&amp;#39; status with red below signaling &amp;#39;Off&amp;#39;, making operation intuitive even under pressure or emergency scenarios.</p><p>Included components like an operator unit along with contact block holder further simplify integration into existing setups reducing downtime during maintenance or upgrades significantly.</p><p>In summary if you&amp;#39;re seeking an accessory designed for tough industrial settings offering both dependability and compliance then consider integrating these features into your system&amp;#39;s architecture today!</p>
