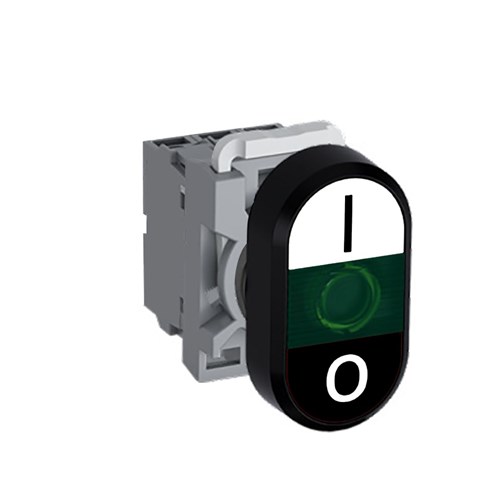

ABB MPDIFGWBI420 Illuminated Double Pushbutton Kit Flush/Flush Green I/O White/Black 110VAC/DC 2NO LED Block

Product Code: MPDIFGWBI420

  • Suitable for mining and heavy industry use
  • IP66 front protection, durable in harsh conditions
  • Operates at -25 to 70°C, versatile temp range
  • Built-in green LED illumination for clear visibility
  • Includes operator, contact block, and holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Green
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend I (Upper), O (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This accessory is designed to meet the rigorous demands of industrial and commercial environments, particularly in sectors like mining, construction, and heavy industry. With a rated voltage of 110 VAC/DC, it provides reliable performance for various applications. The product features illumination through a built-in green LED lamp, ensuring visibility even in dimly lit conditions.</p><p>Built to withstand harsh environments, the front of this accessory boasts an IP66 degree of protection while the terminal offers IP20 protection. This makes it resilient against dust and powerful water jets on the front side while providing basic protection at the terminals. It complies with multiple standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others, ensuring adherence to international safety and quality benchmarks.</p><p>The ambient temperature range for operation spans from -25 to 70 degrees Celsius, allowing functionality across diverse climate conditions. Its rated insulation voltage stands at 690 V with a rated impulse withstand voltage of 6 kV which speaks volumes about its durability under electrical stress.</p><p>Featuring a contact configuration of 2NO (two normally open contacts), it ensures effective circuit control. The actuator type is flush/flush which contributes to its sleek design without compromising usability. The button itself has a dual color scheme—white for the upper section marked &amp;#39;I&amp;#39; and black for the lower section marked &amp;#39;O&amp;#39;, clearly indicating operational states.</p><p>Its bezel is crafted from durable plastic material while maintaining an ergonomic design suitable for frequent use. A standard cutout size of 22 mm facilitates easy integration into existing systems or panels without requiring extensive modifications.</p><p>The light blocks are based on LED technology which not only enhances energy efficiency but also extends operational lifespan compared to traditional lighting options. Included components such as operator contact block holder ensure comprehensive setup right out of the box.</p><p>In summary this accessory combines robustness with precision making it ideal for challenging industrial settings where reliability cannot be compromised Manufacturer Part Number: [Not Provided]</p>
