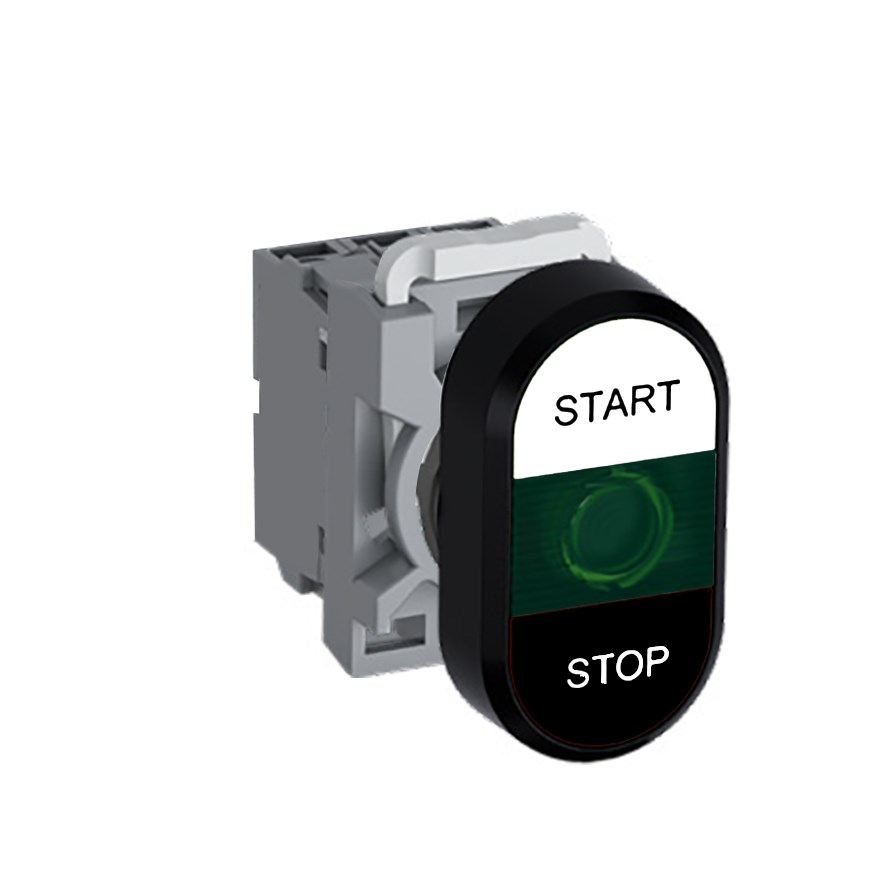

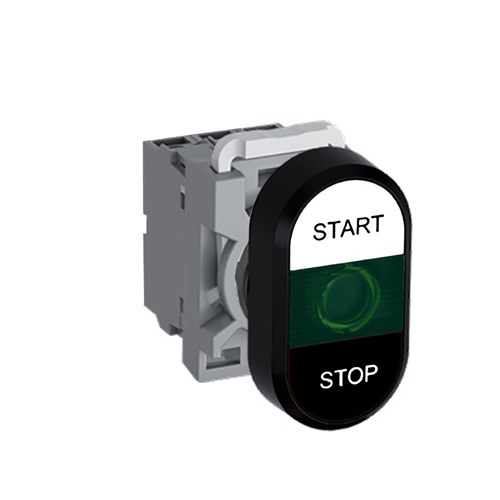

ABB MPDIFGWBS420 Illuminated Double Pushbutton Kit Flush/Flush Green Start/Stop White/Black 110VAC/DC 2NO

Product Code: MPDIFGWBS420

  • Illuminated with built-in green LED
  • Robust IP66 front protection
  • Operates in -25 to 70°C environments
  • Suitable for mining & construction use
  • Includes operator, contact block & holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Green
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend Start (Upper), Stop (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This versatile accessory is designed for industrial environments, offering reliable performance and compliance with rigorous standards. It operates at a rated voltage of 110 VAC/DC, making it suitable for a wide range of electrical systems. The product is illuminated by a built-in green LED lamp, ensuring visibility in various lighting conditions.</p><p>With robust protection ratings—IP66 on the front and IP20 at the terminal—this accessory can withstand harsh environmental factors while maintaining safety and functionality. It&amp;#39;s crafted to meet numerous international standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, as well as UL 508 and CSA C22.2 No. 14 certifications.</p><p>Engineered for durability, it functions effectively within an ambient temperature range of -25 to 70 degrees Celsius. It boasts a rated insulation voltage of up to 690 V and can handle impulse voltages up to 6 kV. The contact configuration features two normally open (2NO) contacts that are ideal for simple control operations.</p><p>The actuator type is flush/flush with buttons colored white on the upper part marked &amp;#39;Start&amp;#39; and black on the lower part marked &amp;#39;Stop&amp;#39;. This straightforward design promotes intuitive use in demanding settings such as mining, construction, and heavy industry applications.</p><p>Built from durable plastic material with a cutout size of 22 mm, this accessory integrates seamlessly into existing panels or new installations. The light block type utilizes an LED block which contributes to its energy efficiency and long operational life.</p><p>Included components such as an operator unit, contact block holder along with the LED block ensure comprehensive assembly right out of the box without needing additional purchases or modifications.</p><p>This product&amp;#39;s reliability makes it an excellent choice for professionals seeking dependable solutions in challenging industrial environments where precision and resilience are paramount.</p>
