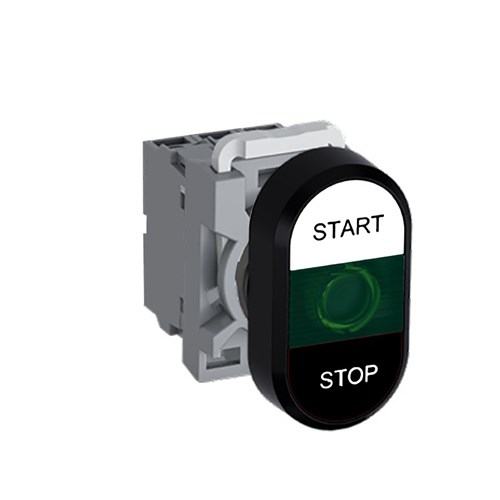

ABB MPDIFGWBS702 Illuminated Double Pushbutton Kit Flush/Flush Green Start/Stop White/Black 230VAC/DC 2NC

Product Code: MPDIFGWBS702

  • Rated voltage: 230 VAC/DC, illumination included
  • IP66 front protection for tough environments
  • Operates in -25 to 70°C ambient temperature
  • Built-in green LED lamp, flush actuator
  • Suitable for mining and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Green
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type Built-in LED
Legend Start (Upper), Stop (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This industrial accessory is designed to meet the rigorous demands of mining, construction, and heavy industry applications. It offers a robust solution with its reliable performance and compliance with a wide range of standards.</p><p>Rated for 230 VAC/DC, this illuminated accessory ensures visibility even in challenging environments. The built-in LED lamp comes in green, providing clear indication while maintaining energy efficiency. With an IP66 degree of protection at the front and IP20 at the terminal, it withstands dust and powerful water jets, making it suitable for harsh conditions.</p><p>The product adheres to numerous international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others. This ensures it meets high safety and performance requirements globally. Additionally, UL 508 and CSA C22.2 No. 14 approvals underline its reliability for North American markets.</p><p>Operating efficiently between -25 to 70 degrees Celsius ambient temperature range, this accessory is versatile across various climates. Its rated insulation voltage stands at 690 V with a rated impulse withstand voltage of 6 kV—demonstrating robustness against electrical surges.</p><p>The contact configuration features two normally closed (2NC) contacts with a rated thermal current of up to 10 A—ideal for controlling circuits requiring fail-safe operations. The actuator type is flush/flush with an ergonomic design that includes both &amp;#39;Start&amp;#39; (upper) and &amp;#39;Stop&amp;#39; (lower) legends on the button face.</p><p>Constructed from durable plastic bezel material, the device fits into a standard cutout size of 22 mm ensuring compatibility with existing setups without needing additional modifications.</p><p>Included are operator components: contact block holder along with LED block—all contributing towards easy assembly or replacement when necessary. The light blocks employ LED technology offering longevity over traditional lighting methods reducing maintenance downtime significantly.</p><p>In summary this accessory provides dependable control solutions tailored specifically towards demanding industrial sectors where reliability cannot be compromised while adhering strictly to international safety norms ensuring peace-of-mind operation throughout its lifecycle.</p>
