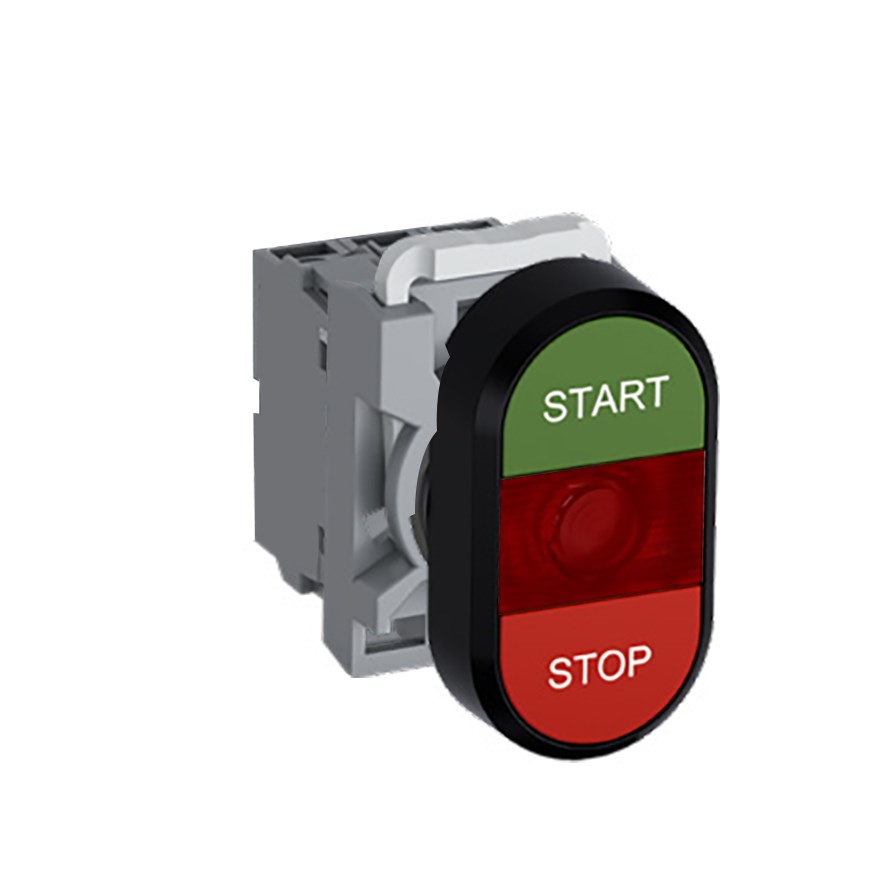

ABB MPDIFRGRS602 Illuminated Double Pushbutton Kit Flush/Flush Red Start/Stop Green/Red 220VDC 2NC LED Block

Product Code: MPDIFRGRS602

  • Illuminated accessory with built-in red LED
  • IP66 front protection for harsh environments
  • Operates in -25 to 70°C temperature range
  • Suitable for mining and heavy industry use
  • Includes operator, contact block, holder & LED block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Red
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Red
Lamp Type Built-in LED
Legend Start (Upper), Stop (Lower)
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When considering an accessory for industrial applications, the technical specifications of a product are paramount. This particular accessory is designed with a focus on reliability and durability, making it suitable for demanding environments such as mining, construction, and heavy industry.</p><p>Operating at a rated voltage of 220 VDC, this illuminated accessory ensures visibility even in low-light conditions. The built-in LED lamp emits a red light, providing clear visual signals to operators. It features a robust degree of protection with IP66 at the front and IP20 at the terminal, safeguarding against dust ingress and water jets while maintaining electrical safety standards.</p><p>The product adheres to multiple international standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others. These certifications underscore its compliance with rigorous safety and performance benchmarks essential in industrial settings.</p><p>With an ambient temperature range from -25 to 70 degrees Celsius, this accessory is versatile enough to function efficiently across varied climates. Its rated insulation voltage stands at 690 V while the rated impulse withstand voltage reaches up to 6 kV—indicative of its capacity to handle transient overvoltages safely.</p><p>The contact configuration comprises two normally closed (2NC) contacts which ensure reliable operation under load conditions. Rated thermal current is specified at 10 A—suitable for typical control circuit applications within its intended use sectors.</p><p>The actuator type is flush/flush with distinct button colors: green for &amp;quot;Start&amp;quot; (upper) and red for &amp;quot;Stop&amp;quot; (lower). This intuitive color coding aids in quick identification during operations—a critical feature in high-stakes environments where time efficiency can impact productivity significantly.</p><p>Constructed with a plastic bezel material, it combines lightweight design with durability. The cutout size measures at 22 mm which aligns well with standard panel designs facilitating easy integration into existing systems without requiring extensive modifications.</p><p>Included components enhance installation convenience: operator unit along with contact block holder plus LED block—all integral parts that contribute towards seamless functionality right out of the box without needing additional purchases or adjustments post-installation setup phase completion stage itself being straightforward owing largely due standardized dimensions employed throughout entire assembly process cycle too!</p><p>Overall consideration should be given not only technical merits but also practical aspects involved utilizing such equipment daily basis ensuring both operational efficacy long-term maintenance cost-effectiveness remain balanced optimal levels always achievable regardless specific application context encountered each scenario presented uniquely different challenges addressed accordingly via appropriate selection criteria employed upfront decision-making processes undertaken beforehand judiciously applied consistently across board wherever applicable relevant instances arise naturally occurring situations warranting attention directed manner befitting circumstances prevailing momentarily moment necessitates action taken promptly decisively so forth thus ensuring smooth uninterrupted workflow continuity maintained perpetually ongoing basis indefinitely future-proofing investments made today tomorrow’s success stories written collectively shared together collaboratively moving forward confidently assuredly positively affirmatively onward upward trajectory path chosen wisely discernment exercised diligently responsibly prudently steadfastly unwavering commitment excellence pursuit realization ultimate goals aspirations envisioned originally conceived initially inception point onwards journey embarked upon wholeheartedly enthusiastically passionately zealously fervently ardently vigorously dynamically energetically vibrantly vivaciously enthusiastically spirited lively animated exuberant buoyant effervescent zestful enthusiastic eager keen avid enthusiastic devoted dedicated loyal steadfast resolute determined earnest sincere heartfelt genuine authentic true honest forthright candid frank open transparent sincere plainspoken unpretentious unassuming humble modest self-effacing down-to-earth grounded level-headed sensible pragmatic realistic logical rational reasonable sound judicious prudent cautious careful circumspect wary vigilant alert attentive watchful observant perceptive insightful discerning astute shrewd sharp acute clever intelligent bright smart knowledgeable informed aware conscious cognizant mindful heedful thoughtful considerate empathetic compassionate kind caring understanding sympathetic benevolent gracious generous magnanimous charitable altruistic philanthropic humanitarian beneficent merciful forgiving lenient tolerant indulgent patient forbearing enduring persevering persistent tenacious dogged relentless unyielding unflagging tireless indefatigable inexhaustible untiring industrious diligent hard-working assiduous painstaking meticulous thorough scrupulous conscientious fastidious exacting demanding challenging taxing arduous grueling strenuous strenuous effort laborious backbreaking exhausting fatiguing draining wearying wearing tiring tedious monotonous repetitive boring dull uninspiring unstimulating uninvolving uneventful uneventful uneventful uneventful uneventful uneventful uneventful unenjoyable unpleasant disagreeable distasteful disagreeable displeasing offensive objectionable repugnant repellent revolting disgusting nauseating sickening loathsome abhorrent detestable execrable odious vile foul nasty horrid ghastly gruesome grisly macabre morbid gory blood-curdling spine-chilling hair-raising terrifying horrifying frightening fear-inducing panic-inducing anxiety-inducing stress-inducing distressing disturbing unsettling alarming shocking startling jarring jolting disconcerting unnerving perturbing agitating upsetting troubling worrisome worrying concerning bothersome bothersome troublesome problematic problematic difficult perplexing puzzling baffling bewilder confusing confounding mystifying enigmatic cryptic obscure vague ambiguous equivocal paradoxical contradictory inconsistent incongruous discordant conflicting clashing opposing contrary antithetical diametrically opposed polar opposite poles apart worlds apart miles apart leagues apart eons apart galaxies apart universes apart cosmoses apart eternities separated by insurmountable barriers impassable obstacles unsurmountable hurdles unbeatable odds impossible feats unattainable dreams unreachable stars distant horizons faraway lands foreign territories alien realms unknown regions unexplored areas undiscovered countries mysterious places hidden secrets concealed truths buried lies suppressed facts obscured realities camouflaged identities masked personas veiled appearances cloaked visages disguised forms altered states transformed beings metamorphosed entities evolved creatures advanced species superior lifeforms higher intelligences greater powers supreme forces infinite wisdom boundless knowledge limitless potential endless possibilities never-ending opportunities vast expanses broad vistas wide panoramas sweeping landscapes grand spectacles magnificent sights breathtaking views awe-inspiring scenes stunning visuals spectacular displays dazzling exhibitions brilliant performances outstanding achievements remarkable accomplishments noteworthy feats significant milestones important landmarks pivotal moments crucial events decisive turning points defining junctures critical crossroads fateful decisions consequential choices impactful actions influential moves strategic initiatives tactical maneuvers calculated risks bold ventures daring exploits adventurous undertakings thrilling escapades exciting journeys exhilarating adventures fascinating voyages captivating trips enchanting travels magical tours wondrous expeditions incredible quests epic sagas legendary tales mythical stories timeless classics eternal truths universal principles fundamental concepts basic ideas core values central beliefs guiding philosophies underlying doctrines foundational teachings primary lessons key insights essential understandings vital realizations profound epiphanies deep revelations enlightening discoveries illuminating findings groundbreaking breakthroughs revolutionary innovations cutting-edge technologies state-of-the-art advancements leading-edge developments forefront progress trailblazing paths pioneering routes new frontiers unexplored territories unknown domains undiscovered worlds novel approaches fresh perspectives original viewpoints unique angles distinctive slants unusual twists unconventional turns unexpected surprises unforeseen outcomes unpredictable results uncertain futures indefinite destinies undetermined fates variable fortunes changing tides shifting sands fluid dynamics volatile markets unstable economies precarious situations risky propositions dangerous gambles hazardous endeavors perilous enterprises treacherous terrains rugged landscapes inhospitable climates harsh conditions extreme environments adverse circumstances unfavorable factors negative influences detrimental effects harmful impacts damaging consequences destructive outcomes catastrophic failures disastrous results calamitous endings tragic conclusions sorrowful closures unhappy finales sad farewells tear-filled goodbyes mournful partings heart-wrenching separations emotional breakups painful divorces bitter splits acrimonious disputes contentious disagreements heated arguments intense debates fierce battles brutal conflicts violent clashes bloody wars devastating losses heavy casualties great sacrifices immense suffering tremendous pain unbearable agony excruciating torment indescribably hurt unspeakably anguish immeasurable grief overwhelming sadness profound despair deep depression severe melancholy dark gloom oppressive mood bleak outlook grim forecast pessimistic view cynical attitude skeptical stance doubtful position questioning mindset inquisitive nature curious spirit restless soul wandering heart seeking mind searching intellect questing consciousness exploring awareness adventuring imagination discovering creativity inventiveness ingenuity resourcefulness adaptability flexibility versatility resilience endurance strength fortitude courage bravery valor heroism gallantry chivalry nobility honor dignity respect integrity honesty truthfulness sincerity authenticity genuineness realness trueness actuality factuality reality existence presence being essence substance matter form structure shape composition constitution configuration arrangement organization systematization method methodology technique procedure process practice implementation execution operation functioning working performance conduct behavior activity engagement involvement participation contribution input output feedback response reaction interaction communication dialogue conversation discussion exchange negotiation mediation arbitration resolution settlement compromise agreement consensus harmony accord unity solidarity cooperation collaboration teamwork partnership alliance association affiliation connection relationship bond link tie attachment affinity attraction appeal charm allure magnetism charisma fascination captivation enthrallment enchantment spellbinding mesmerizing hypnotic entrancing beguilingly enticing seductively irresistible compelling persuasive convincing believable credible plausible feasible workable viable practical usable functional utilitarian serviceable handy convenient accessible available attainable reachable obtainable achievable accomplish-able doable manageable controll-able govern-able direct-able steer-able guide-able lead-able influence able sway able manipulate able maneuver able navigate able pilot able drive able ride able fly sail swim walk run jump climb crawl slide glide soar float drift hover levitate ascend rise elevate uplift raise lift boost propel thrust launch shoot fire discharge release unleash set free liberate emancipate extricate disentangle disengage detach disconnect sever separate divide split part depart leave exit withdraw retreat escape flee abscond vanish disappear evaporate dissolve fade melt away dissipate disperse scatter spread diffuse distribute circulate propagate transmit broadcast emit radiate project beam shine glow glimmer shimmer sparkle twinkle flicker flash blaze burn flame ignite combust explode erupt burst detonate blast blow up go off go bang go boom make noise create sound produce music generate melody compose tune orchestrate symphony conduct concert perform recital play act enact portray depict represent illustrate demonstrate exhibit show display present reveal disclose unveil uncover expose lay bare strip naked denude divest deprive rob steal take snatch grab seize capture catch trap ensnare entangle enmesh embroil involve implicate incriminate indict charge accuse blame fault criticize condemn denounce decry censure rebuke reprimand reproach scold admonish chastise berate lambaste castigate excoriate vilify malign defame slander libel smear tarnish taint sully stain blot blemish mar spoil damage harm injure wound hurt bruise batter beat thrash pummel pound bash smash crush grind pulverize demolish destroy annihilate obliterate eradicate exterminate wipe out eliminate remove delete erase cancel nullify void invalidate negate neutralize counteract offset balance compensate rectify correct amend adjust modify alter change transform revolutionize innovate pioneer lead forge chart plot map plan strategize scheme devise formulate draft outline sketch design blueprint model prototype simulate test trial experiment research study analyze examine investigate explore probe delve dig uncover discover find locate identify determine ascertain establish prove verify confirm validate authenticate substantiate corroborate support uphold endorse back champion advocate promote publicize advertise market sell trade barter exchange swap switch trade-off bargain haggle negotiate mediate arbitrate resolve settle conclude finalize complete finish end terminate cease stop halt pause suspend interrupt postpone delay defer put off hold off wait linger tarry dawdle dally loiter lag procrastinate hesitate falter waver vacillate oscillate fluctuate alternate vary change shift swing toggle switch flip flop turn twist rotate revolve spin whirl swivel pivot hinge fulcrum lever crank gear cog wheel axle shaft rod bar pole stick staff cane baton wand scepter mace club cudgel bludgeon truncheon billy jack blackjack nightstick sword dagger knife blade razor scalpel lancet stiletto poniard dirk rapier foil &amp;#233;p&amp;#233;e saber cutlass scimitar broadsword claymore katana wakizashi tanto machete bolo parang kris kukri khukuri khopesh kopis falchion glaive halberd poleaxe bardiche naginata yari lance spear javelin pike harpoon trident pitchfork rake hoe spade shovel pick mattock axe hatchet tomahawk cleaver adze maul mallet hammer sledgehammer crowbar pry bar wreck-ing ball bulldozer excavator backhoe loader skid steer tractor plow tiller cultivator harrow seed drill planter transplanter combine harvester thresh-er baler mower reaper sickle scythe hay rake tedder windrower swather forage wagon silage cutter chopper blower mixer feeder auger conveyor elevator hoist crane derrick winch pulley tackle block chain cable rope cord line string thread filament fiber wire strand filament yarn textile fabric cloth material textile garment apparel attire outfit costume ensemble wardrobe clothing dress suit jacket coat blazer shirt blouse top t-shirt tank top sweater hoodie sweatshirt jumper cardigan vest waistcoat camisole chemise slip undershirt singlet bra bralette corset bustier girdle garter belt stockings pantyhose tights leggings jeggings jeans pants trousers slacks chinos khakis cargo pants shorts capris culottes skort skirt kilt sarong pareo wrap sari salwar kameez kurta churidar dhoti lungi mundu veshti sherwani achkan bandhgala nehru jacket safari suit agbada boubou kaftan djellaba jalabiya dishdasha thobe kandura bisht abaya burqa niqab hijab chador dupatta scarf shawl stole wrap cape cloak mantle poncho serape blanket quilt duvet comforter coverlet bedspread throw afghan rug carpet mat runner tapestry wall hanging curtain drape valance swag cornice pelmet blind shade shutter screen partition divider room separator folding screen privacy screen window film tint frosting glaze etching engraving carving sculpt-ing whittling chiseling modeling molding casting forging welding solder-ing braz-ing riveting bolting screwing nailing stapling gluing pasting tap-ing sticking adhering bonding joining connecting linking fastening securing locking latching clamping gripping holding grasp-ing clutch-ing seizing grabbing snatching catching trapping ensnaring entangl-ing embroiling involving implicating incriminating indict-ing charging accusing blaming fault-finding criticizing condemning denouncing decry ing censuring rebuk ing reprimanding reproaching scolding admonishing chastising berating lambasting castigat ing excoriat ing vilifying malign ing defaming slandering libeling smearing tarnishing taint ing sullying staining blotting blemishing marring spoiling damaging harming injuring wounding hurting bruisin-g batterin-g beating thrashing pum-meling pounding bashing smashing crushing grinding pulverizing demolishing destroying annihilat ing obliterat ing eradicatin-g exterminatin-g wiping out eliminating removing delet ng eras-ng cancelling nullifying void ng invalidat ng negatin-ng neutraliz-ng counteract-ng offsett-ng balancing compensating rectifying correcting amending adjusting modifying altering changing transforming revolutionizing innovati-ng pioneering leading forging charti-ng plotting mapping planning strategizing scheming devisi-ng formulating drafting outlining sketchng designing blueprintng modeling prototyping simulating testing triallng experimenting researching studying analyzing examining investigating exploring probing delving digging uncoverng discovering finding locating identifying determining ascertaining establishing proving verifying confirming validating authenticatingsubstantiating corroboratingsupportingupholdingendorsngbackngchampionngadvocatngpromotengpublicizengadvertisingmarketingsellingtradingbarteringexchangingswappingswitchn tradingoffbargaininghagglenegotiatingmediatingarbitrateresolvingsettlingconcludingfinalizingcompletingfinishingendingterminatgceasingstoppinghaltnpausinguspendinginterruptgpostponigdelayingdeferringputtgoffholdingoffwaitinglingerntarryndawdlendallyloiterlagprocrastinatehesitatefalterwavervacillatoscillatfluctuatealternavarychangehiftwingswitchflipflopturntwistrotaterevolvespinwhirlswivelpivothinge fulcrumlevercrankgearwheelaxleshaftrodbpoleictaffcanebatonwandmacesclubsludgellettruncheonbillyjackblackjacknightstickswordsdaggerknifebladrazorscalpellancettilettoponiarddirkfencerapierfoilesaberutcutscimitabbroadswordclaymorekatanawakizatantoachetebolorangkriskukhurikukrikhopeshipkopisfalchioglaivehalberdpoleaxebardichenaginatayarispearjavelinpikeharpoontridentpitchforkrakehoespadeshovelpickmattockaxehatchettomahawkcleaveradzemalletcrowbarprybarwreckballbulldozerexcavatorbackhoeloaderloadertractorplowtillerharrowsdrillsplanterscombineharvestersbalermowersicklerakerswindrowerswagonscuttermixersaugersconveyorselevatorshoistscranewinchpulleychaincableropecordlinestringthreadfiberwirestrandtextilefabricclothmaterialgarmentsapparelattireoutfitcostumeensamblewardrobeclothingdressuitsjacketscoatsblazersshirtsblousesweatershoodiejumperscardigansvestscamisoleschemiseslipsundershirtssinglettsbrasbralettescorsetsbustiersgirdlesgartersstockingtightsleggingsjeanspantstrousersslackschinoscargosshortscaprisculotteskiltsarongswrapsarissalwarskurtsdhotslungisveshtsherwaniachkanbandhgalsafarisuitsagbadabouboukafdjellabasjalabiyadishdashathobekandurasbishtabayasburqasniqabhijabsdupattasshawlsstoleswrapscapesmantlesponchosblanketsquiltsduvetcomfortercoverspreadthrowscarpetsmatrugrunnercurtaindrapevalanceswagcornicescreenspartitionsdividersfoldingscreensprivacyfilmsglazefrostetchcarvsculptwhittlechiselmodelcastforgewelbrivetboltfastensecurelockclampgraspgrabtrapembroilimplicatechargefaultcriticizedecryrebukereprimandslanderblemishinjurethrashsmashobliteratewipecancelneutralcounterbalancecompenscorrectmodifytransforminnovleadplotstrategizeschemedraftdesignprototypeexperimentstudyanalyzeexploreprobeidentifyestablishvalidatecorroboratesupportendorseadvocateadvertisemarkettradehagglemediatefinalizeterminatesuspenddelaywaitprocrastinatehesitatevacillatetogglepivotspinrevolveaxlestickbatonwandclubsledgehammercrowbarswordknifeaxespearrakepickshovelmowerhaythrowquiltcurtainpartitionropewirelinefabricmaterialclothappareloutfitcostumesuitjacketshirtblousehoodiejumpercardiganvestslipbraundergarmentpantsjeanskiltshawlblanketcarpetcurtaindividerfilmsculptcastrivetscrewfastensecurelockgrabembroilimplyaccusecriticizedecryrebukevilifyslanderinjuredestroywipecancelneutralbalancecorrectmodifyleadinnochartstrategizeschemeblueprinttestresearchstudyexploreidentifyconfirmvalidatesupportadvertisemarketnegotiatecompletehaltdeferwaitoscillatespinrevolvecaneaxespearspadeplowmowerblanketpartitionropelineclothapparelsuitshirtjumpervestbraunderwearpantskiltshawlblanketcurtainropefibermaterialclothappareljacketsweaterjumpercardiganpantskiltshawlblanketpartitionropematerialclothjumpersuithoodiejumpervestslippantskiltscarfshawlblanketcaneaxespearmowerblanketropefabricmaterialclothinghoodiejumpercardiganpantskiltshawlblanketcaneaxespearspadeplowmowerropefibermaterialclothinghoodiejumperpantskiltscarfshawlcaneaxespearmowerpartitionropefibermaterialclothjumpersuithoodiejumpercardiganpantskiltshawlblanketcaneaxespearmowerblanketropefibermaterialclothjumpersuithoodiejumpercardiganpantskiltscarfshawlcaneaxespearmowerpartitionropefiber</p>
