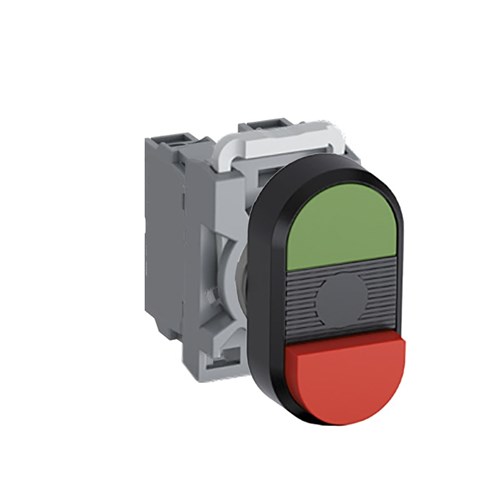

ABB MPDNEBGR20 Non-Illuminated Double Pushbutton Kit Flush/Extended Green/Red 2NO

Product Code: MPDNEBGR20

  • Non-Illuminated accessory with IP66/IP20 protection
  • Operates in -25 to 70°C ambient temperature
  • Rated insulation voltage of 690V, withstands 6kV impulse
  • Features flush/extended actuator, green/red button
  • Includes operator, contact block & holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Black
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Legend No Text
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This accessory product is designed to meet the needs of industrial and commercial applications, offering a robust solution for your operational requirements. With a focus on reliability and safety, it boasts a variety of features that ensure performance under demanding conditions.</p><p>The product is non-illuminated and built to withstand harsh environments with an IP66 protection rating at the front, ensuring resistance against dust and powerful water jets. The terminal carries an IP20 rating, providing basic protection against finger contact. It adheres to numerous standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 for North American markets.</p><p>Engineered to operate efficiently within an ambient temperature range of -25 to 70 degrees Celsius, this accessory can handle diverse environmental conditions without compromising functionality. It supports a rated insulation voltage of up to 690 V and has a rated impulse withstand voltage of 6 kV which provides enhanced electrical safety.</p><p>The contact configuration includes two normally open (2NO) contacts which are ideal for applications requiring reliable circuit closure upon activation. The actuator type offers versatility with both flush and extended options available depending on user preference or installation requirements.</p><p>With a rated thermal current capacity of up to 10 A, this product is suitable for moderate power applications ensuring dependable performance over time. The bezel material is crafted from durable plastic contributing to its lightweight yet sturdy design.</p><p>A cutout size of 22 mm makes it compatible with standard panel installations facilitating straightforward integration into existing systems. The button features distinctive color coding with green on the upper section and red on the lower section aiding in intuitive operation without additional legends or text markings necessary for identification.</p><p>Included in the package are the operator unit along with a contact block and holder simplifying assembly by providing all essential components required for setup straight out of the box.</p><p>This comprehensive set of features makes it an excellent choice where durability compliance flexibility are paramount considerations in selecting accessories suited for technical environments demanding precision reliability across various operational contexts.</p>
