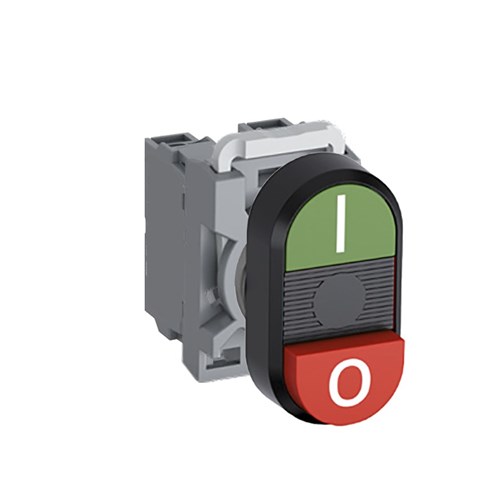

ABB MPDNEBGRI11 Non-Illuminated Double Pushbutton Kit Flush/Extended I/O Green/Red 1NO+1NC

Product Code: MPDNEBGRI11

  • IP66 front protection; durable design
  • Operates in -25 to 70°C environments
  • Rated insulation voltage of 690V
  • Includes operator, contact block & holder
  • Green/Red button with flush/extended actuator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Black
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Legend I (Upper), O (Lower)
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This robust accessory is designed to meet the demands of industrial and commercial applications with precision and reliability. It stands out for its non-illuminated design, ensuring straightforward operation without unnecessary distractions. The product features a dual protection system with IP66 at the front, suitable for harsh environments, while maintaining an IP20 rating at the terminals for safety.</p><p>Compliance with multiple standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, and more ensures that this accessory meets rigorous international safety and performance benchmarks. Additionally, it holds approvals from UL 508 and CSA C22.2 No. 14, making it a versatile choice for both local and international markets.</p><p>Operating efficiently in ambient temperatures ranging from -25 to 70 degrees Celsius, this accessory is built to withstand various environmental conditions without compromising functionality. With a rated insulation voltage of 690 V and a rated impulse withstand voltage of up to 6 kV, it offers robust electrical resilience.</p><p>The contact configuration includes one normally open (NO) and one normally closed (NC) contact setup. This provides flexibility in control circuit applications where both states are necessary or beneficial. Furthermore, it supports a rated thermal current of up to 10 A.</p><p>Designed with user convenience in mind, the actuator type comes in both flush and extended options catering to different installation preferences or space constraints. The bezel material is made of durable plastic ensuring longevity while maintaining an aesthetically pleasing appearance.</p><p>For ease of identification during operation or maintenance tasks the legend is clearly marked with &amp;#39;I&amp;#39; on the upper section indicating ON status paired with green button color while &amp;#39;O&amp;#39; on lower section indicates OFF status paired with red button color enhancing intuitive use even under low visibility conditions.</p><p>Installation is simplified by its standard cutout size of 22 mm making integration into existing setups seamless without needing additional modifications or adaptors. This package includes everything needed for immediate deployment: an operator contact block along with its holder ensuring all components work harmoniously together straight out-of-the-box reducing downtime significantly during initial setup phases or replacements when necessary.</p>
