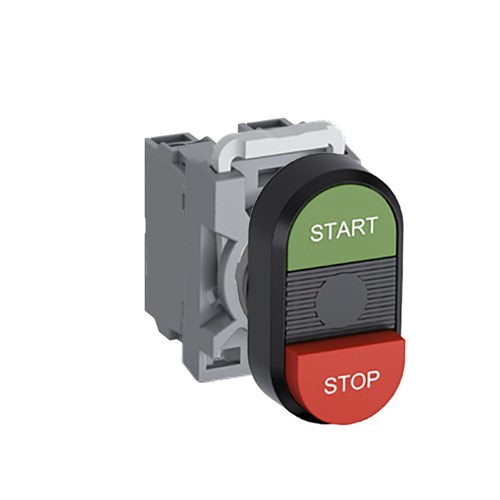

ABB MPDNEBGRS20 Non-Illuminated Double Pushbutton Kit Flush/Extended Start/Stop Green/Red 2NO

Product Code: MPDNEBGRS20

  • Non-illuminated, IP66/IP20 protection
  • Complies with IEC and UL standards
  • Operates in -25 to 70°C environment
  • Flush/extended actuator design
  • Includes operator and contact block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Black
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Legend Start (Upper), Stop (Lower)
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When considering accessories for your industrial or commercial electrical systems, the right choice can enhance both functionality and safety. This particular accessory offers a well-rounded set of features that make it a reliable component in any setup.</p><p>This product is designed with practicality in mind, featuring a non-illuminated interface that ensures straightforward operation without unnecessary distractions. Its robust construction includes an IP66 rating on the front, providing excellent protection against dust and powerful jetting water, making it suitable for harsh environments. Meanwhile, the terminal has an IP20 rating to guard against finger access and solid objects.</p><p>Compliance with multiple international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, among others, underscores its reliability and adherence to global safety norms. It also meets UL 508 and CSA C22.2 No. 14 standards for North American markets.</p><p>Operating efficiently across a wide ambient temperature range from -25 to 70 degrees Celsius makes this accessory adaptable to various climates and conditions. Its rated insulation voltage stands at a substantial 690 V while offering a rated impulse withstand voltage of 6 kV—indicative of its capability to handle transient overvoltages effectively.</p><p>The contact configuration is set as two normally open (2NO), which can be ideal for applications where you need separate circuits controlled by one actuator mechanism. The flush/extended actuator type provides flexibility in design preferences or operational requirements.</p><p>With a rated thermal current of up to 10 A, this accessory supports moderate power loads typical in many industrial applications. The legend markings are intuitive: &amp;quot;Start&amp;quot; on the upper section with green coloring and &amp;quot;Stop&amp;quot; on the lower part marked red—facilitating quick identification during use.</p><p>The bezel material crafted from plastic ensures durability while maintaining cost-effectiveness without compromising performance integrity. Designed for easy integration into existing systems or new installations alike, it fits into standard cutout sizes of 22 mm.</p><p>Included components like the operator, contact block, and contact block holder ensure everything needed for installation is provided out-of-the-box—streamlining setup processes significantly.</p><p>In summary, whether upgrading existing equipment or planning new installations within Australia’s demanding technical landscapes—this accessory promises dependable service backed by rigorous standards compliance and thoughtful design elements tailored towards ease-of-use and longevity in challenging environments.</p>
