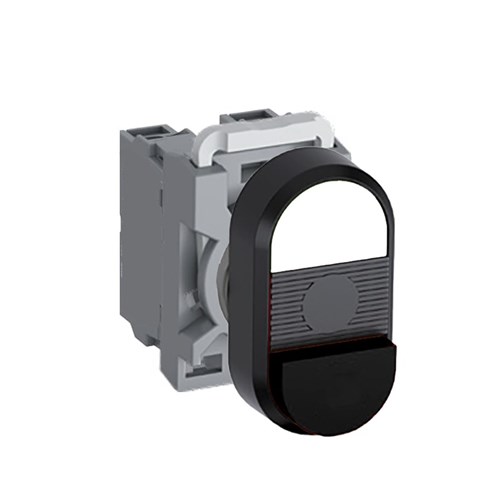

ABB MPDNEBWB02 Non-Illuminated Double Pushbutton Kit Flush/Extended White/Black 2NC

Product Code: MPDNEBWB02

  • IP66 front protection, IP20 terminal
  • Operates in -25 to 70°C environment
  • Rated insulation voltage of 690V
  • Flush/Extended actuator type
  • Includes operator and contact block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Black
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Legend No Text
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to selecting the right accessory for your industrial or commercial needs, understanding the technical specifics is crucial. This particular product offers a robust solution with its comprehensive set of features designed to meet various application requirements.</p><p>This accessory is non-illuminated, making it suitable for environments where visual signals are not necessary. It boasts an impressive degree of protection with IP66 at the front and IP20 at the terminal, ensuring resistance against dust and water ingress in demanding conditions. The standards and approvals are extensive, covering EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as UL 508 and CSA C22.2 No. 14 certifications. These endorsements underscore its reliability and compliance with international safety standards.</p><p>Designed to operate effectively within a wide ambient temperature range of -25 to 70 degrees Celsius, this accessory can withstand harsh environmental conditions without compromising performance. The rated insulation voltage stands at an impressive 690 V while offering a rated impulse withstand voltage of up to 6 kV.</p><p>The contact configuration consists of a double normally closed (2NC) setup that provides reliable circuit interruption capabilities when needed. With a rated thermal current capacity of up to 10 A, this product ensures dependable operation under typical load conditions.</p><p>A unique feature is its actuator type which combines both flush and extended options for versatile usability across different applications. The bezel material is made from durable plastic which adds another layer of resilience while maintaining lightweight characteristics essential for ease of installation.</p><p>With no text on the legend plate by default—allowing customization based on specific operational needs—this accessory fits seamlessly into various setups without necessitating additional modifications. The cutout size measures at an industry-standard diameter of 22 mm facilitating straightforward integration into existing systems or panels.</p><p>The button&amp;#39;s dual-color design features white on the upper part and black on the lower part—a simple yet effective color scheme that enhances visibility and user interaction especially in low-light settings.</p><p>Included in this package are essential components such as an operator unit along with contact block and holder ensuring you have everything required for immediate deployment upon purchase.</p><p>Overall this product represents an excellent balance between functionality durability adaptability making it ideal choice those seeking reliable performance backed by recognized certifications across multiple regions worldwide.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
