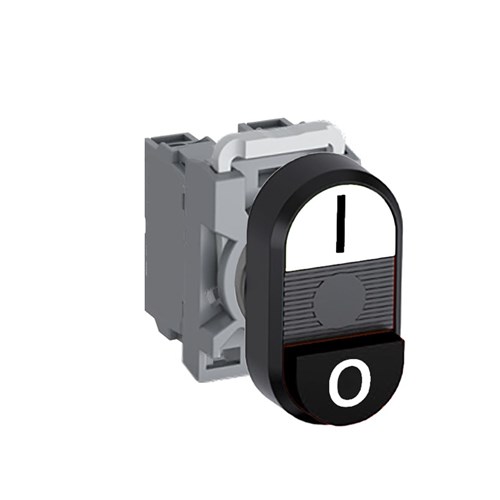

ABB MPDNEBWBI02 Non-Illuminated Double Pushbutton Kit Flush/Extended I/O White/Black 2NC

Product Code: MPDNEBWBI02

  • Non-illuminated accessory with IP66 front protection
  • Meets multiple international standards, incl. UL 508
  • Operates in -25 to 70°C ambient temperature range
  • Flush/Extended actuator with 2NC contact config.
  • Includes operator, contact block & holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Extended
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Black
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Legend I (Upper), O (Lower)
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to selecting the right accessory for your industrial or commercial applications, understanding the technical specifications is crucial. This product offers a robust solution with its non-illuminated design and high degree of protection, making it suitable for various demanding environments.</p><p>The accessory features an IP66 rating at the front, ensuring excellent resistance against dust and powerful water jets. The terminal side has an IP20 rating, offering basic protection against solid objects. Compliance with multiple standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, and others ensures reliability and safety across different use cases.</p><p>Operating efficiently in temperatures ranging from -25 to 70 degrees Celsius, this product is versatile enough for both cold storage facilities and warmer industrial settings. With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 6 kV, it provides strong electrical performance under challenging conditions.</p><p>The contact configuration includes two normally closed (2NC) contacts that ensure secure operation by breaking circuits when necessary. It is designed with flush/extended actuator types that cater to diverse user preferences while maintaining operational efficiency.</p><p>This accessory supports a rated thermal current of up to 10 A which makes it compatible with numerous electrical systems without compromising on performance or safety. The legend markings &amp;#39;I&amp;#39; on the upper section and &amp;#39;O&amp;#39; on the lower section provide clear visual cues during operation.</p><p>Constructed with durable plastic bezel material, this product combines longevity with lightweight properties. Its cutout size of 22 mm fits seamlessly into standard installations without requiring modifications.</p><p>The button colors—white on the upper part and black on the lower part—aid in easy identification during usage or maintenance activities. Each package includes an operator along with a contact block and holder for straightforward installation or replacement processes.</p><p>With these comprehensive features packed into one reliable unit, this accessory meets demanding industrial requirements while providing ease-of-use through its thoughtful design elements.</p>
