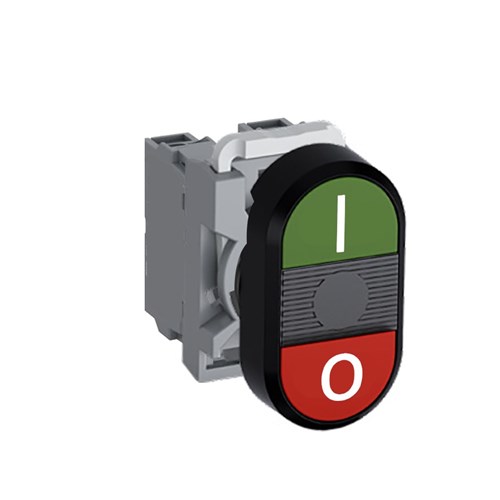

ABB MPDNFBGRI02 Non-Illuminated Double Pushbutton Kit Flush/Flush I/O Green/Red 2NC

Product Code: MPDNFBGRI02

  • Non-illuminated accessory with flush actuator
  • IP66 front protection, IP20 terminal safety
  • Operates within -25 to 70°C temperature range
  • Dual contact configuration: 2NC
  • Rated insulation voltage of 690V
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Green (Upper), Red (Lower)
Colour Black
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Legend I (Upper), O (Lower)
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to selecting the right accessory for your industrial applications, understanding the technical specifications and features is crucial. This product offers a practical solution with its robust design and reliable performance.</p><p>Designed for demanding environments, this non-illuminated accessory boasts an impressive degree of protection with IP66 at the front and IP20 at the terminal. This ensures durability against dust and water ingress, making it suitable for a variety of challenging settings.</p><p>Conforming to multiple standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, and CSA C22.2 No. 14, this product meets rigorous international safety requirements. Whether you&amp;#39;re operating in Europe or North America, you can be confident in its compliance.</p><p>The ambient temperature range from -25 to 70 degrees Celsius allows this accessory to perform reliably across various climates and conditions. With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of up to 6 kV, it provides excellent electrical resilience.</p><p>The contact configuration features two normally closed (2NC) contacts which are ideal for ensuring circuit continuity until actively opened by an operator action. The actuator type is flush/flush providing a sleek profile that minimizes accidental activation while maintaining ease of use.</p><p>With a rated thermal current of up to 10 A, this accessory supports moderate power applications effectively. The bezel material is crafted from durable plastic offering both longevity and cost-effectiveness without compromising on function.</p><p>For easy integration into existing systems or new installations alike the cutout size is standardized at 22 mm ensuring compatibility with common mounting options. The button colors are distinctly marked with green for &amp;#39;I&amp;#39; (upper position) indicating &amp;#39;on&amp;#39;, while red denotes &amp;#39;O&amp;#39; (lower position) signifying &amp;#39;off&amp;#39;. </p><p>Included in the package are an operator unit along with a contact block and holder simplifying installation by providing all necessary components in one convenient bundle.</p><p>This comprehensive feature set makes this accessory an excellent choice for those seeking reliability coupled with straightforward operation within their industrial setups.</p>
