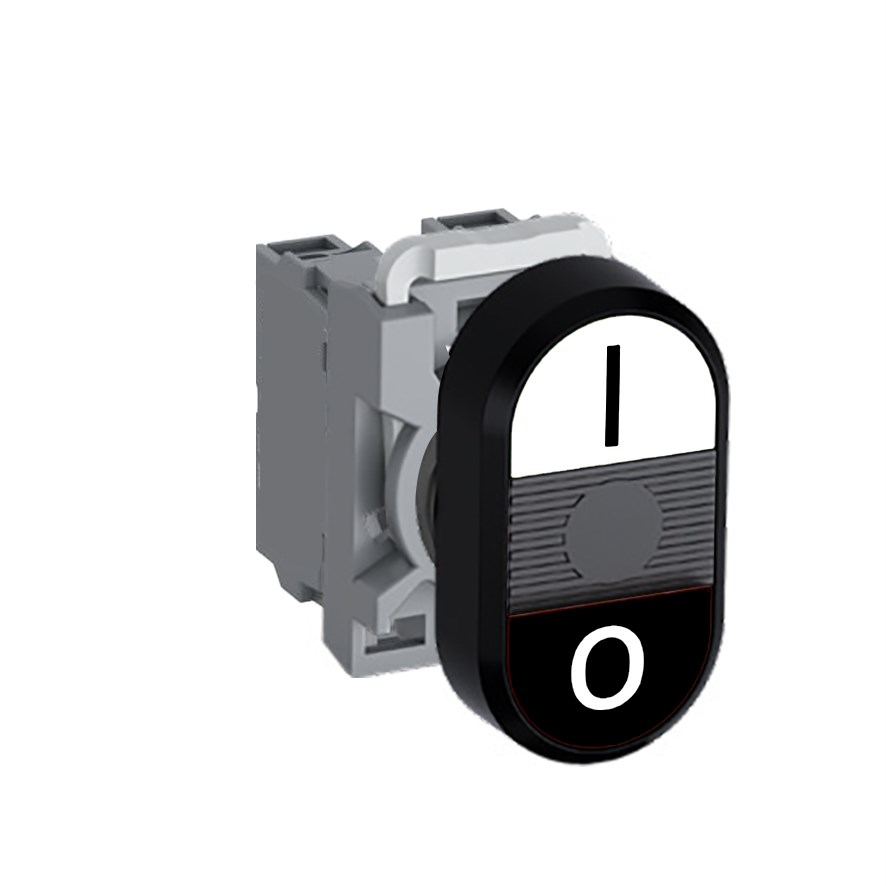

ABB MPDNFBWBI02 Non-Illuminated Double Pushbutton Kit Flush/Flush I/O White/Black 2NC

Product Code: MPDNFBWBI02

  • Non-illuminated accessory with flush actuator
  • IP66 front protection for harsh environments
  • Operates in -25 to 70°C temperature range
  • Rated insulation voltage up to 690V
  • Includes operator, contact block & holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Black
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Legend I (Upper), O (Lower)
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>For those in the industrial and commercial sectors seeking a reliable accessory with robust specifications, this product is designed to meet rigorous demands. It offers a non-illuminated solution that ensures high performance across various applications. With an impressive degree of protection featuring IP66 at the front and IP20 at the terminal, it guarantees durability against dust and water ingress, making it suitable for challenging environments.</p><p>This accessory conforms to multiple international standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, as well as UL 508 and CSA C22.2 No. 14 certifications. This compliance assures users of its safety and reliability in both European and North American markets.</p><p>Operating efficiently within an ambient temperature range from -25 to 70 degrees Celsius, this product can withstand diverse climatic conditions without compromising functionality. Its rated insulation voltage stands at an impressive 690 V while offering a rated impulse withstand voltage of up to 6 kV—key features for ensuring electrical safety in demanding settings.</p><p>The contact configuration is set to a dependable 2NC (two normally closed), providing secure switching operations essential for safety circuits or where fail-safe conditions are required. The actuator type is flush/flush which offers streamlined integration into panels or control systems.</p><p>With a rated thermal current capacity of up to 10 A, it supports substantial electrical loads without overheating risks. The bezel material made from plastic provides lightweight yet sturdy construction ideal for frequent use scenarios.</p><p>Designed with practicality in mind, the cutout size measures at a standard dimension of 22 mm facilitating easy installation into existing setups or new projects alike. The button features distinct color coding—white on the upper part marked &amp;quot;I&amp;quot; for &amp;#39;on&amp;#39; operations and black on the lower part marked &amp;quot;O&amp;quot; for &amp;#39;off&amp;#39;, enhancing user clarity during operation.</p><p>Included components such as an operator, contact block and contact block holder ensure comprehensive installation right out of the box without needing additional purchases—a cost-effective advantage when planning your procurement budget.</p><p>In summary, this accessory encapsulates reliability with its extensive protective features alongside compliance with global standards making it an excellent choice for professionals requiring consistent performance under varied operational conditions.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
