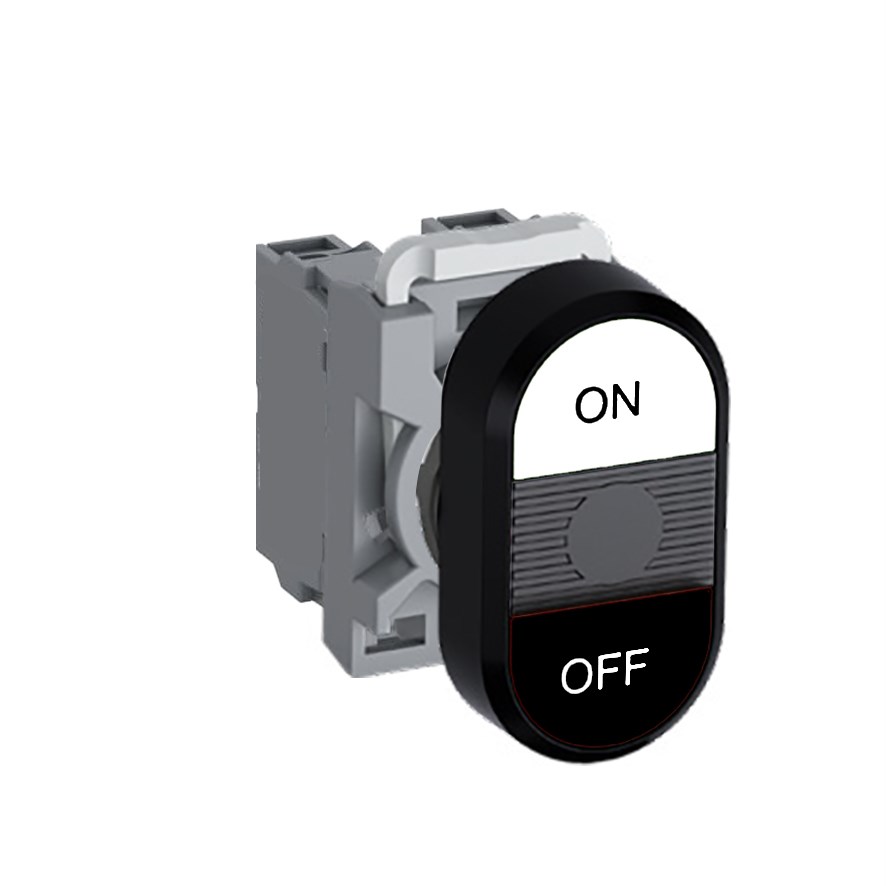

ABB MPDNFBWBO20 Non-Illuminated Double Pushbutton Kit Flush/Flush On/Off White/Black 2NO

Product Code: MPDNFBWBO20

  • Non-illuminated accessory with flush actuator
  • IP66 front and IP20 terminal protection
  • Operates in -25 to 70°C ambient temp range
  • Rated insulation voltage of 690 V
  • Includes operator, contact block & holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Pushbutton Kit
Brand ABB
Actuator Type Flush/Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour White (Upper), Black (Lower)
Colour Black
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Legend On (Upper), Off (Lower)
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When selecting an accessory for your industrial or commercial setup, it&amp;#39;s crucial to consider both technical specifications and practical applications. This particular accessory is designed with a non-illuminated actuator type that ensures reliable performance without the distraction of unnecessary lighting. Its robust design features an IP66 degree of protection at the front, making it highly resistant to dust and powerful water jets, while the terminal offers IP20 protection.</p><p>The product adheres to several international standards for safety and reliability, including EN IEC 60947-1, EN IEC 60947-5-1, and UL 508 among others. These certifications ensure that it meets stringent criteria for industrial use across various environments.</p><p>Operating efficiently in ambient temperatures ranging from -25 to 70 degrees Celsius, this accessory can withstand significant temperature fluctuations without compromising performance. It boasts a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV, highlighting its capability to handle high-voltage applications safely.</p><p>The contact configuration is set up as 2NO (two normally open contacts), which is ideal for operations requiring straightforward on/off functionality. With a rated thermal current of 10 A, this device supports moderate electrical loads effectively.</p><p>Aesthetically and functionally designed with a flush/flush actuator type, it provides a sleek appearance while maintaining ease of use. The bezel material is made from durable plastic ensuring longevity in demanding conditions.</p><p>For user convenience, the legend clearly indicates &amp;quot;On&amp;quot; at the upper position and &amp;quot;Off&amp;quot; at the lower position. The button itself features a dual-color scheme: white on top for &amp;#39;On&amp;#39; operations and black underneath for &amp;#39;Off&amp;#39;, facilitating quick visual recognition during operation.</p><p>Installation is straightforward with its standard cutout size of 22 mm making it compatible with many existing setups. Additionally, this package includes not only the operator but also a contact block and contact block holder ensuring you have all necessary components right out of the box.</p><p>This combination of features makes it an excellent choice for those seeking reliability coupled with compliance in their electrical systems.</p>
