Specifications

Product Type	Emergency Stop Pushbutton Kit
Brand	ABB
Actuator Type	Mushroom 40mm
Colour	Red
Contact Configuration	1NC
Degree of Protection	IP20, IP65
Function	Pull Release
Illumination	Illuminated
LED Colour	Red
Material	Plastic
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	230 VAC
Release Method	Pull
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

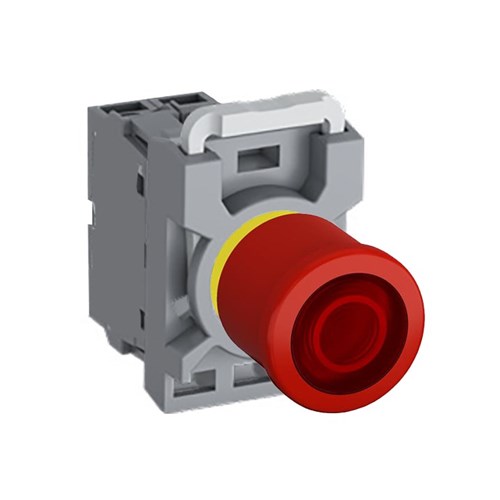

ABB MPEI4P401 Emergency Stop Pushbutton Kit Illuminated 1NC Red Pull Plastic 230VAC
