Specifications

Product Type	Emergency Stop Pushbutton Kit
Brand	ABB
Actuator Type	Mushroom 60mm
Colour	Red
Contact Configuration	2NC
Degree of Protection	IP20, IP65
Function	Pull Release
Illumination	Illuminated
Lamp Type	Built-in LED
Material	Plastic
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	24 VAC/VDC
Release Method	Pull
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

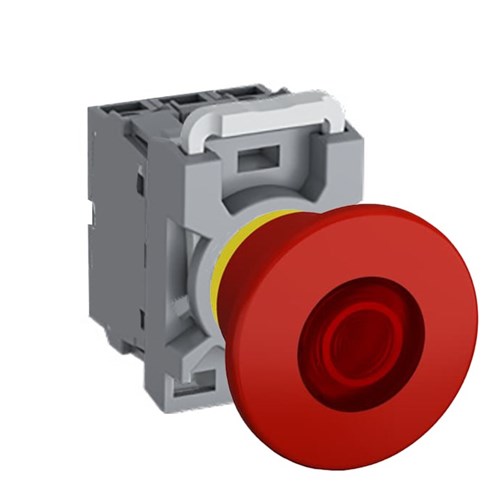

ABB MPEI6P102 Emergency Stop Pushbutton Kit Illuminated 2NC Red Pull Plastic 24VAC/DC
