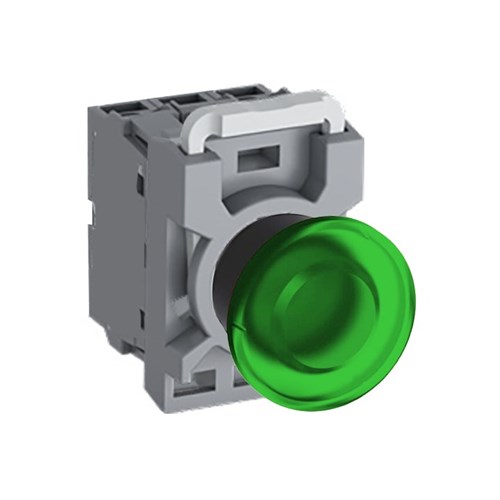

ABB MPMI4G111 Illuminated Pushbutton Kit 40mm Momentary Green 24VAC/DC 1NO+1NC

Product Code: MPMI4G111

  • Operates at 24 VAC/DC with LED illumination
  • Wide temp range: -25 to 70°C
  • High protection: IP66 front, IP20 terminal
  • Green LED lamp in a 40mm diameter design
  • Includes operator, contact block & holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Bezel Material Plastic
Colour Green
Contact Configuration 1NO+1NC
Cutout Size 40 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 40 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type LED
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When selecting components for industrial and commercial applications, reliability and adherence to standards are paramount. This particular product offers a harmonious blend of functionality and compliance, ensuring it meets the stringent demands of various environments.</p><p>Operating at a rated voltage of 24 VAC/DC, this illuminated device is designed for versatility in power supply options. Its operational temperature range from -25 to 70 degrees Celsius makes it suitable for diverse climates, maintaining performance across extreme conditions.</p><p>The product boasts an impressive degree of protection with IP66 on the front side, safeguarding against dust ingress and powerful water jets. Meanwhile, the IP20 rating at the terminal ensures basic protection against finger contact, making it a robust choice for safe operation in harsh settings.</p><p>Adhering to several international standards such as EN IEC 60947-1 and UL 508 among others, this product aligns with global benchmarks for quality and safety. The inclusion of approvals like CSA C22.2 No. 14 further underscores its credibility in North American markets.</p><p>With a rated insulation voltage of 690 V and an impulse withstand voltage of 6 kV, it provides substantial resilience against electrical surges. The contact configuration includes one normally open (NO) and one normally closed (NC) contact, offering flexibility in circuit design.</p><p>A diameter of 40 mm complements its ergonomic design while accommodating standard installation requirements with a matching cutout size. The green LED lamp not only enhances visibility but also contributes to efficient energy use over prolonged periods due to its low power consumption.</p><p>Functionality is straightforward yet effective; it&amp;#39;s momentary by nature—ideal for applications requiring short-term activation without latching mechanisms. Supporting up to a rated thermal current of 10 A ensures compatibility with most control systems without risk of overheating under normal conditions.</p><p>Constructed from durable plastic material, the bezel adds both aesthetic appeal and structural integrity while remaining lightweight—a critical factor during installation or maintenance tasks.</p><p>Included in this comprehensive package are essential components such as an operator unit, contact block along with its holder, plus an LED block—all contributing towards seamless integration into existing setups or new projects alike.</p><p>This precise engineering solution stands out not just because it meets technical specifications but because it does so reliably across varied scenarios ensuring peace-of-mind operation wherever installed—an indispensable asset within any industrial or commercial toolkit!</p>
