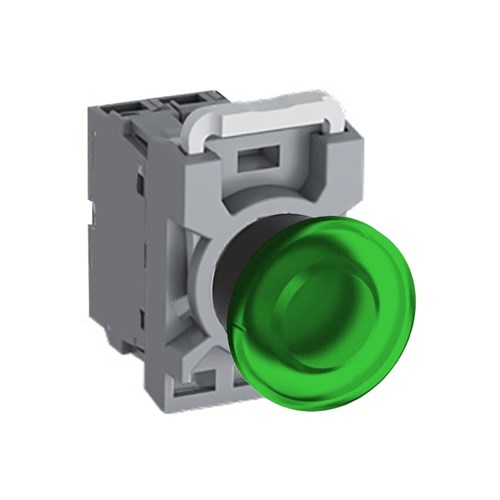

ABB MPMI4G401 Illuminated Pushbutton Kit 40mm Momentary Green 230VAC/DC 1NC

Product Code: MPMI4G401

  • Operates at 230V AC/DC with green LED illumination
  • IP66 front protection, suitable for harsh environments
  • Momentary function with 1NC contact configuration
  • Rated thermal current of 10A, ensures reliability
  • Includes operator, contact block, and LED block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Bezel Material Plastic
Colour Green
Contact Configuration 1NC
Cutout Size 40 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 40 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type LED
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>When it comes to selecting reliable components for industrial and commercial applications, understanding the technical specifications is crucial. This illuminated pushbutton offers a robust solution with its comprehensive features designed to meet demanding operational requirements.</p><p>Operating at a rated voltage of 230 VAC/DC, this device is versatile enough for various electrical systems. The illumination feature, powered by an energy-efficient LED, ensures visibility even in low-light conditions. With a lamp colour of green, it provides clear status indication suitable for many control panel applications.</p><p>The product&amp;#39;s operational temperature range spans from -25&amp;#176;C to 70&amp;#176;C, making it adaptable to diverse environments without compromising performance. Its degree of protection includes IP66 at the front and IP20 at the terminal, ensuring high resistance against dust and water ingress—ideal for harsh settings where reliability is paramount.</p><p>Compliance with multiple standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 underscores its quality and safety credentials. These approvals assure compatibility with international regulations and industry norms.</p><p>Designed with a rated insulation voltage of 690 V and a rated impulse withstand voltage of 6 kV, this pushbutton can handle significant electrical stress while maintaining insulation integrity. The contact configuration features one normally closed (1NC) contact which suits various circuit designs requiring fail-safe operations.</p><p>With a diameter and cutout size both set at 40 mm, installation is straightforward in standardized panel designs. The momentary function adds further utility by allowing temporary engagement—a common requirement in control interfaces.</p><p>Constructed with a plastic bezel material that balances durability with cost-effectiveness, this component is built for longevity without excessive expense. Rated thermal current capacity stands at an impressive 10 A supporting substantial load handling capabilities typical in industrial contexts.</p><p>Included within the package are essential components: operator unit contact block contact block holder and LED block ensuring you have everything needed for seamless integration into your system setup without additional purchases or modifications required.</p><p>In summary if you&amp;#39;re seeking an illuminated pushbutton that combines functionality compliance durability and ease-of-use this model delivers on all fronts aligning perfectly with rigorous technical demands found across Australian industries today.</p>
