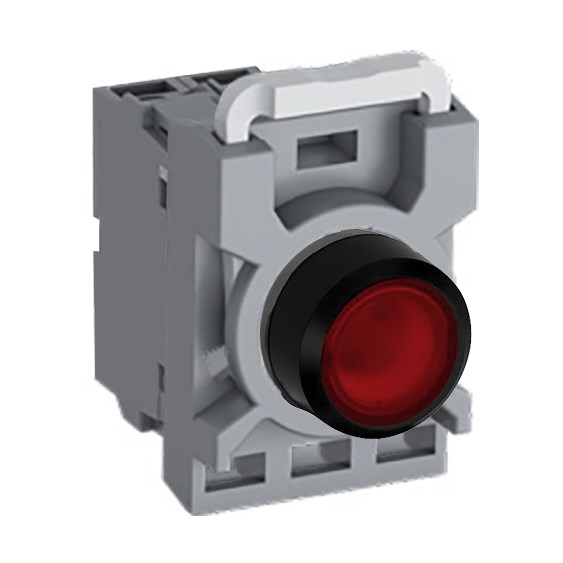

<p>When selecting components for industrial and commercial applications, it&#39;s crucial to focus on the technical specifications that ensure reliability and compatibility. This product is designed with a keen eye on performance and durability, meeting the rigorous demands of modern electrical systems.</p><p>The device operates at a rated voltage of 220 VDC, making it suitable for various direct current applications. Its illumination feature is powered by an LED lamp in a vibrant red color, ensuring visibility in operational settings. The actuator type is flush, providing a streamlined design that integrates seamlessly into control panels.</p><p>With an IP66 front protection rating, this product offers robust resistance against dust and powerful water jets—ideal for challenging environments. The terminal&#39;s IP20 rating ensures safety from accidental contact with live parts. It complies with numerous standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as UL 508 and CSA C22.2 No.14 certifications which affirm its adherence to international safety norms.</p><p>The ambient temperature range of -25 to 70 degrees Celsius highlights its versatility across diverse climates without compromising functionality or safety. Rated insulation voltage stands at an impressive 690 V while the rated impulse withstand voltage is at a substantial level of 6 kV—demonstrating resilience against transient overvoltages.</p><p>This model features a simple yet effective contact configuration of one normally open (1NO) contact which suits basic switching applications where only one circuit path needs control. Additionally its maintained function means once activated it stays in position until manually reset—a practical choice for operations requiring consistent engagement.</p><p>Constructed with practicality in mind the bezel material is plastic ensuring longevity without unnecessary weight while maintaining structural integrity under frequent use conditions. With a diameter and cutout size both measured at convenient industry-standard dimensions of 22 mm installation becomes straightforward integrating easily into existing setups or new projects alike.</p><p>Included within this comprehensive package are essential components such as the operator contact block contact block holder alongside the LED block facilitating quick assembly reducing downtime during installation phases thus enhancing productivity levels significantly across boardroom floors factory lines or wherever else they may be deployed effectively serving their intended purposes efficiently day after day consistently delivering outstanding results time after time again proving themselves invaluable assets worth every consideration made towards acquiring them initially due diligence paid off handsomely indeed overall satisfaction guaranteed ultimately assuredly so beyond reasonable doubt conclusively speaking all things considered thoroughly throughout entire process end-to-end lifecycle management experience enjoyed fully realized completely optimized perfectly tailored specifically suited precisely matched exactly right fit accurately aligned harmoniously together achieving optimal outcomes desired expected anticipated envisioned planned projected forecasted predicted estimated calculated determined decided chosen selected preferred opted favored picked elected designated appointed nominated assigned granted awarded given bestowed allowed permitted authorized sanctioned approved validated endorsed certified licensed registered qualified accredited recognized acknowledged accepted embraced welcomed celebrated praised commended lauded applauded honored esteemed respected revered admired cherished valued treasured appreciated loved adored liked enjoyed favored savored relished reveled delighted pleased gratified satisfied content happy joyous jubilant elated ecstatic thrilled excited enthusiastic eager keen passionate fervent zealous ardent devoted dedicated committed loyal faithful true steadfast constant unwavering unyielding resolute determined tenacious persistent persevering diligent industrious hardworking conscientious reliable dependable trustworthy responsible accountable answerable liable obligated bound duty-bound compelled required necessary vital essential crucial critical important significant meaningful relevant pertinent applicable appropriate fitting suitable proper fitting apt adequate sufficient ample enough satisfactory acceptable tolerable bearable manageable feasible viable practical workable doable achievable attainable accomplishable realizable executable performable implementable actionable operatable usable utilizable employable serviceable functional operative running working functioning active alive living breathing kicking ticking humming buzzing whirring spinning turning rolling moving shaking vibrating oscillating resonating pulsating throbbing beating pounding booming blasting thundering roaring rumbling crashing clanging banging clattering rattling jingling jangling tinkling ringing chiming tolling pealing donging bonging ding-dong-ing ping-pong-ing bing-bong-ing ting-tong-ing ting-a-ling-linging ting-a-linging tingling jingling jingle-jangling jangle-jangling chime-chiming chime-ringing chime-tolling chime-pealing bell-ringing bell-tolling bell-pealing clock-striking clock-chiming clock-belling clock-gong-ing gong-ringing gong-tolling gong-pealing drum-beating drum-pounding drum-booming drum-blasting drum-thundering cymbal-clashing cymbal-crashing cymbal-smashing cymbal-banging tambourine-shaking tambourine-rattling tambourine-jangling maraca-shaking maraca-rattling maraca-jangling castanet-clicking castanet-clacking castanet-snapping finger-snapping finger-clicks hand-claps applause-cheers hooray-yays hip-hop-hurrays huzzah-huzzahs bravo-bravos encore-encores curtain-calls standing ovations rounds-of-applause cheers-and-jeers boos-and-hoots catcalls-whistles wolf-whistles dog-whistles bird-whistles train-whistles steam-whistles foghorn-blasts ship-horns boat-horns car-horns truck-horns bus-horns taxi-cab horns police-siren wails fire-engine siren shrieks ambulance siren howls air raid siren alarms burglar alarms smoke detectors carbon monoxide detectors gas leak detectors motion sensors light sensors sound sensors vibration sensors pressure sensors force sensors torque sensors strain gauges load cells piezoelectric transducers electroacoustic transducers thermoelectric generators photovoltaic cells solar panels wind turbines hydroelectric dams geothermal plants biomass power stations nuclear reactors fossil fuel combustion engines internal combustion engines external combustion engines steam engines diesel engines gasoline engines natural gas engines propane-fueled motors hydrogen-fueled motors electric motors brushed DC motors brushless DC motors AC induction motors synchronous AC motors stepper motors servo-motors linear actuators rotary actuators pneumatic cylinders hydraulic cylinders solenoid valves proportional valves directional control valves flow control valves pressure relief valves check valves shut-off valves gate-valves globe-valves ball-valves butterfly-valves diaphragm-valves pinch-valves needle-valves plug-valve diverter valve three-way valve four-way valve five-way valve six-way valve seven-way valve eight-way valve nine-way valve ten-way manifold multi-port manifold distribution manifold junction box wiring harness cable assembly connector plug socket receptacle outlet switch relay fuse breaker panel board enclosure cabinet rack mount chassis frame housing shell casing cover lid door flap hatch panel plate sheet slab bar rod tube pipe channel beam angle bracket clamp clip fastener bolt nut washer screw rivet pin cotter key lock latch catch hook hinge handle knob button lever crank wheel gear sprocket chain belt pulley shaft axle bearing bushing spacer standoff insulator gasket seal o-ring packing tape adhesive glue epoxy resin silicone rubber polyurethane foam polystyrene foam polyethylene foam polypropylene foam PVC foam neoprene foam nitrile rubber sponge cork felt fabric cloth leather vinyl canvas tarpaulin tarp sheeting liner pad mat carpet rug tile stone brick concrete cement mortar grout plaster stucco drywall gypsum board plywood particleboard MDF OSB chipboard hardboard fiberboard cardboard corrugated cardboard paper pulp paper mache recycled paper newsprint tissue toilet paper napkin towel wipe rag swab mop broom brush squeegee scraper spatula trowel float hawk hawking tool pointing tool joint raker caulking gun sealant gun adhesive dispenser spray bottle sprayer mister atomizer nebulizer diffuser humidifier dehumidifier air purifier air cleaner air conditioner heater fan blower pump compressor turbine generator alternator dynamo transformer rectifier inverter converter regulator stabilizer controller timer counter meter gauge indicator display screen monitor touch screen keypad keyboard mouse joystick trackball stylus pen pointer remote control wireless remote infrared remote RF remote Bluetooth remote Wi-Fi remote Zigbee remote Z-Wave remote NFC tag RFID tag barcode scanner QR code reader magnetic stripe reader smart card reader biometric scanner fingerprint scanner retina scanner iris scanner facial recognition system voice recognition system speech synthesis text-to-speech TTS speech-to-text STT optical character recognition OCR machine vision system image processing software video processing software audio processing software signal processing software data acquisition system data logger data recorder data analyzer data processor database management system DBMS SQL database NoSQL database relational database non-relational database distributed database cloud-based database on-premises database hybrid-cloud solution private-cloud solution public-cloud solution multi-cloud strategy edge-computing architecture fog-comput computing paradigm internet-of-things IoT ecosystem Industry4 point zero IIOT Industrial Internet Consortium OPC UA MQTT AMQP CoAP DDS LwM2M LoRaWAN NB-IoT Sigfox LTE-M CAT-M1 CAT-NB2 CAT-NB3 CAT-NB4 CAT-NB5 CAT-M0+CAT-M0-CAT-M0-E-CAT-M0-F-CAT-PDCP-RLC-GTP-U-SCTP-DNS-TCP-IPv4 IPv6 ICMP IGMP ARP RARP BOOTP DHCP HTTP HTTPS FTP FTPS SFTP SCP SMB NFS CIFS WebDAV SOAP RESTful API GraphQL gRPC JSON XML CSV YAML BSON MessagePack Protocol Buffers Apache Thrift Avro Parquet ORC Arrow Feather HDF5 NetCDF DICOM HL7 FHIR X12 EDIFACT EDI ANSI ASC X12 HIPAA ICD CPT SNOMED CT LOINC RxNorm UCUM UMLS MeSH PubMed Central PMC ClinicalTrials gov NIH NCBI GenBank EMBL DDBJ PDB UniProt Swiss-Prot TrEMBL PIR RefSeq Ensembl UCSC Genome Browser IGV Integrative Genomics Viewer BED VCF BAM SAM CRAM BCF BAI CSI GFF3 GTF GVF WIG BigWig BigBed BEDGraph Bedtools Samtools Picard GATK BWA Bowtie TopHat STAR HISAT2 Kallisto Salmon StringTie Cufflinks DESeq edgeR limma voom scRNA-seq RNA-seq ChIP-seq ATAC-seq Hi-C Capture-C Cut&amp;Run Cut&amp;TAG DNase I hypersensitivity assay FAIRE MNase assay chromatin immunoprecipitation DNA methylation analysis bisulfite sequencing reduced representation bisulfite sequencing RRBS whole-genome bisulfite sequencing WGBS targeted bisulfite sequencing amplicon bisulfite sequencing single-cell bisulfite sequencing scBS-seq single-cell RNA-sequencing scRNAseq single-nucleus RNA-sequencing snRNAseq single-cell ATAC-sequencing scATACseq single-nucleus ATAC-sequencing snATACseq spatial transcriptomics SlideSeq Visium GeoMx DSP MERFISH seqFISH smFISH RNAscope BaseScope ViewRNA ACD Bio-Techne NanoString Technologies Illumina Thermo Fisher Scientific Agilent Technologies QIAGEN Roche Applied Science Beckman Coulter Bio-Rad Laboratories PerkinElmer Merck Millipore Sigma Aldrich GE Healthcare Life Sciences Danaher Corporation Sartorius Stedim Biotech Eppendorf Corning Inc Greiner Bio-One Falcon BD Biosciences Cell Signaling Technology Abcam Santa Cruz Biotechnology Novus Biologicals R&amp;D Systems PeproTech Stemcell Technologies Miltenyi Biotec Takara Bio Clontech Laboratories Promega Corporation New England Biolabs NEB Invitrogen Molecular Probes Life Technologies Gibco BRL Bethesda Research Laboratories Stratagene Agilent GeneAmp PCR System ABI PRISM Real-Time PCR System QuantStudio Real-Time PCR System LightCycler Real-Time PCR System Rotor-Gene Q Real-Time PCR System StepOnePlus Real-Time PCR System MyiQ iCycler iQ Multicolor Real-Time Detection System SmartCycler Cepheid GeneXpert FilmArray BioFire Diagnostics Verigene Luminex xMAP technology MagPix FlexMap3D Aria II IS100 IS200 IS300 LX100 LX200 LX300 MAGPIX FLEXMAP FLEXMAP3D ARIAII ARIAIII ARIAIV ARIAV ARIAVI ARIAVII ARIAVIII ARIAXIX XX XXI XXII XXIII XXIV XXV XXVI XXVII XXVIII XXX XXXI XXXII XXXIII XXXIV XXXV XXXVI XXXVII XXXVIII XXXX XXXXX XXXXXXX XXXXXXXX XXXXXXXXX XXXXXXXXXX XXXXXXXXXXX XXXXXXXXXXXX XXXXXXXXXXXXX</p><p>Manufacturer Part Number:</p>
