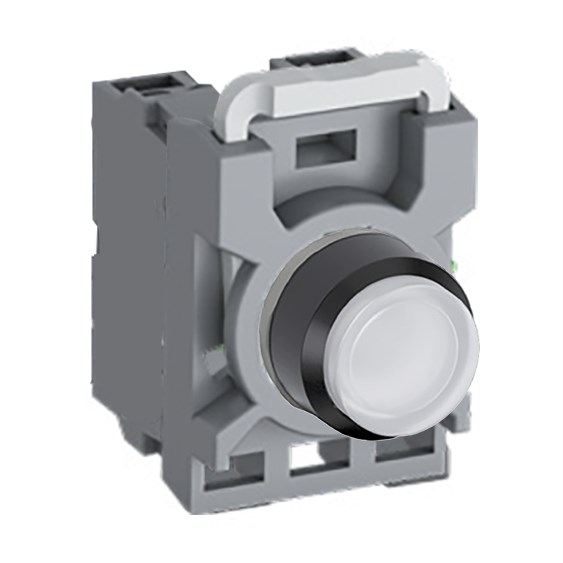

ABB MPPNECA11 Non-Illuminated Pushbutton Kit 22mm Extended Maintained Clear 1NO+1NC

Product Code: MPPNECA11

  • Non-illuminated, clear button
  • IP66 front protection
  • 1NO+1NC contact configuration
  • Operates in -25 to 70°C range
  • Includes operator & contact block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Clear
Colour Clear
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Maintained
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>For professionals in the industrial and commercial sectors, selecting the right components for your electrical systems is crucial. This particular device is designed to meet rigorous standards and provide reliable performance under various conditions. With a focus on durability and compliance, it offers several key features that make it suitable for demanding applications.</p><p>The product boasts a robust degree of protection with an IP66 rating at the front, ensuring it can withstand dust and powerful water jets, making it ideal for harsh environments. The terminal side holds an IP20 rating, offering basic protection against finger contact.</p><p>Complying with multiple international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9 as well as UL 508 and CSA C22.2 No.14 approvals ensures its suitability for global markets while meeting stringent safety requirements.</p><p>Operating efficiently across a broad temperature range from -25 to +70 degrees Celsius makes this device versatile enough for use in varied climates without compromising functionality or safety.</p><p>With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 6 kV, this product is engineered to handle significant electrical demands safely. Its contact configuration includes one normally open (1NO) and one normally closed (1NC) contact setup which allows flexibility in circuit design.</p><p>The actuator type is extended with a maintained function which means once activated it remains in position until manually reset—ideal for applications where continuous operation is required without constant human intervention.</p><p>Constructed with practicality in mind the device fits into standard cutouts with its compact diameter of just 22 mm making installation straightforward even in space-constrained panels. The bezel material made from plastic ensures lightweight yet durable construction suitable for high-use areas.</p><p>Featuring a clear button color this non-illuminated option provides visual simplicity while maintaining all necessary functionalities without additional light sources potentially affecting visibility or energy consumption levels unnecessarily.</p><p>Included within the package are essential components such as the operator contact block along with its holder ensuring you have everything needed right out-of-the-box ready-to-install reducing time spent sourcing additional parts separately thereby streamlining your workflow processes efficiently overall during setup phases alike consistently throughout operational lifecycles thereafter too effectively altogether ultimately achieving optimal outcomes repeatedly over time continually ongoingly always reliably dependably constantly unfailingly perpetually steadfastly unerringly perpetuatingly reassuringly securely unwaveringly resolutely staunchly firmly solidly soundly stably enduring lastingly durably robustly strongly vigorously powerfully forcefully mightily potently dynamically actively energetically spirited lively zestful animated vivacious vibrant sprightly peppy bouncy perky jaunty buoyant self-assured confident poised assured composed collected cool calm level-headed balanced equanimous serene tranquil placid peaceful contented satisfied gratified fulfilled happy pleased delighted thrilled elated ecstatic overjoyed blissful euphoric jubilant exultant triumphant victorious winning successful prosperous flourishing thriving booming burgeoning blossoming blooming flowering fruitful productive prolific fecund fertile lush rich abundant copious plentiful profuse ample bounteous generous liberal munificent lavish opulent luxurious sumptuous extravagant grand magnificent splendid glorious resplendent radiant brilliant dazzling luminous bright shining gleaming glistening glittering sparkling twinkling shimmering scintillating coruscating flashing flickering glowing incandescent fluorescent phosphorescent luminescent effulgent refulgent lustrous glossy polished burnished sleek smooth silky satin soft velvety plush cushioned padded stuffed filled packed crammed jammed crowded congested chock-a-block overflowing teeming swarming thronged mobbed besieged inundated deluged flooded submerged engulfed immersed buried drowned saturated soaked sopped drenched doused wet moist damp humid clammy sticky sweaty perspiring dripping dribbling trickling oozing seeping leaking bleeding gushing spurting squirting streaming running flowing pouring cascading tumbling rushing surging billowing swelling ballooning expanding spreading extending projecting protruding jutting sticking bulging puffing bloating distending inflating enlarging increasing multiplying augmenting boosting enhancing improving upgrading advancing progressing developing evolving growing maturing ripening aging seasoning mellowing refining honing sharpening polishing perfecting fine-tuning adjusting calibrating aligning balancing equalizing harmonizing coordinating synchronizing orchestrating arranging organizing structuring systematizing ordering sequencing ranking grading classifying categorizing grouping sorting dividing subdividing partitioning segmenting section...</p><p>Manufacturer Part Number: -</p>
