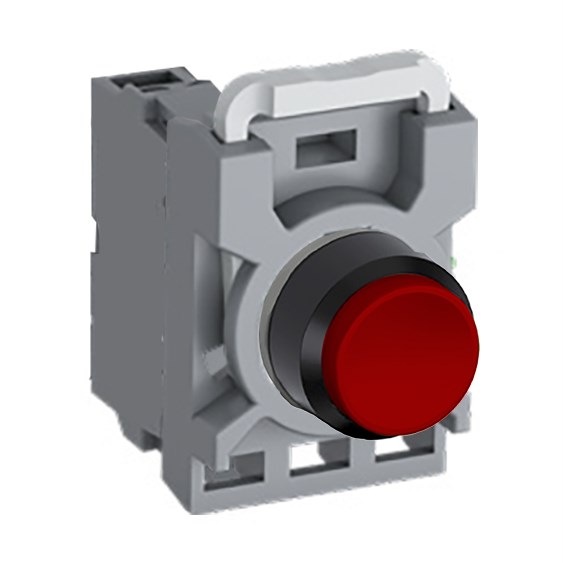

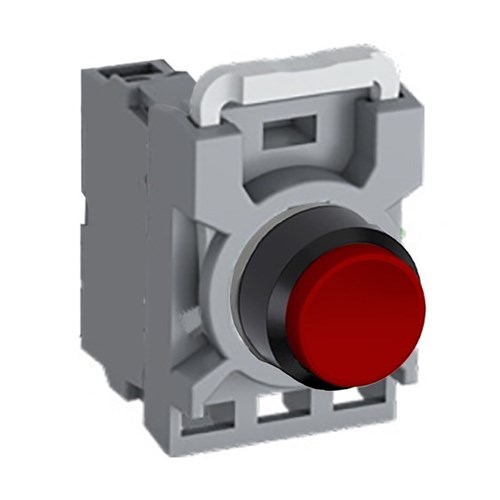

ABB MPPNERO01 Non-Illuminated Pushbutton Kit 22mm Extended Momentary Red 1NC

Product Code: MPPNERO01

  • IP66 front protection for tough environments
  • Operates in -25 to 70°C temperature range
  • Rated insulation voltage of 690V
  • Includes operator, contact block, holder
  • Red momentary extended actuator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Red
Colour Red
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

<p>This industrial-grade product is designed for professionals seeking reliable and robust components in their systems. It features a non-illuminated design, making it ideal for applications where illumination is unnecessary or undesired. The front of the unit boasts an IP66 degree of protection, ensuring resistance against dust and powerful water jets, while the terminal offers IP20 protection. </p><p>Adhering to rigorous standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508 and CSA C22.2 No.14 ensures compliance with international safety and performance requirements. This makes it suitable for various global markets.</p><p>The device operates efficiently within an ambient temperature range of -25 to 70 degrees Celsius, making it versatile enough to handle diverse environmental conditions. With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 6 kV, this component can handle significant electrical demands safely.</p><p>Featuring a contact configuration of one normally closed (1NC), the product provides secure operation by default until manually actuated. The actuator type is extended with a diameter of 22 mm which allows easy handling even in challenging environments or when wearing gloves.</p><p>Functionally momentary in nature means that its action remains active only while being pressed; once released it returns to its original position – perfect for tasks requiring temporary engagement like start/stop operations.</p><p>Constructed with durability in mind the bezel material is plastic offering both lightweight properties without sacrificing strength or longevity under normal operating conditions.</p><p>Designed with user convenience at its core this component includes not just the operator but also comes equipped with a contact block and contact block holder simplifying installation processes significantly reducing setup time on-site projects.</p><p>The button itself comes in an attention-grabbing red color enhancing visibility particularly important during emergency situations where quick identification could be crucially beneficially aiding operators&amp;#39; response times dramatically improving overall workplace safety measures effectively across installations large small alike!</p><p>In summary if you&amp;#39;re looking for dependable mid-life cycle solutions that meet stringent criteria offer ease use along high levels efficiency then look no further than considering integrating into your current future setups today!</p>
