Specifications

Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Long Handle
Colour	Clear
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Maintained
Illumination	Illuminated
Lamp Type	Built-in LED
LED Colour	White
Maintained Position	A, C
Material	Plastic
Mode of Operation	Maintained A to C
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	230 VAC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

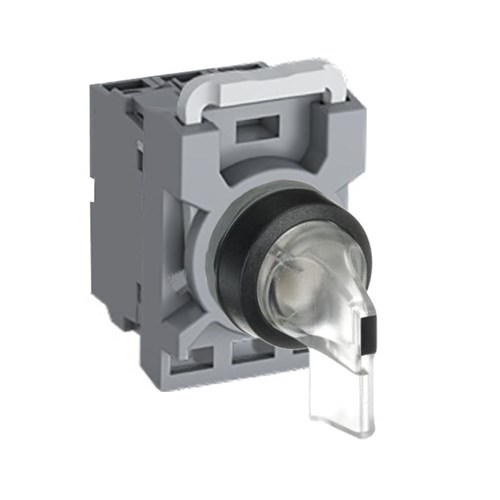

ABB MPS2ILAACC720 Selector Switch Kit Clear 230VAC 2Position 2NO Illuminated Maintained Long Handle Plastic
