Specifications

Product Type	Selector Switch Kit
Brand	ABB
Series	MPS2
Actuator Type	Long Handle
Colour	Blue
Contact Configuration	1NO
Cutout Size	22 mm
Degree of Protection	IP66 (Front), IP20 (Terminals)
Function	Momentary
Illumination	Illuminated
Lamp Type	Built-in LED
LED Colour	Blue
Maintained Position	C, B
Material	Plastic
Mode of Operation	Momentary, spring return from C to B
Number of Positions	2
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	230 VAC
Standards and Approvals	CSA C22.2 No. 14, DIN 40050-9, EN 50013, IEC/EN 60073, IEC/EN 60529, IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5, UL 508

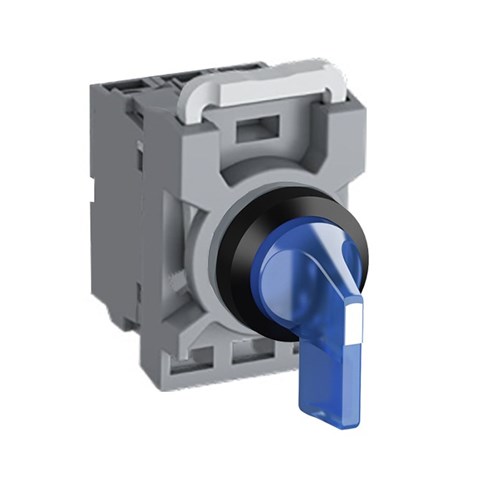

ABB MPS2ILOCBL711 Selector Switch Kit Blue 230VAC 2Position 1NO Illuminated Momentary Long Handle Plastic
