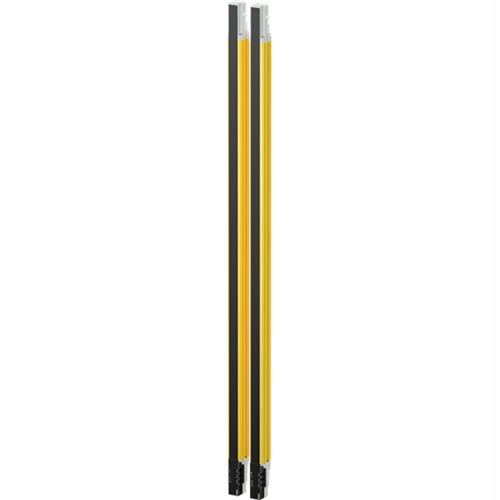

ABB ORION1-4-14-105-E Safety Light Curtain 0.2-7 mm Sensing Range 14 mm Resolution

Product Code: ORION1-4-14-105-E

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Light Curtain
Brand ABB
Series Orion1 Extended
Cable Length 50 m
Sensing Type 0.2-7 mm
Supply Voltage 24 V DC
Blanking Yes
Housing Colour Yellow RAL 1003
Housing Material Painted aluminum (yellow RAL 1003)
Muting Yes
No. of Beams 112
Sensor Distance 0.2 to 7 m
Depth 41 mm
Height 1060 mm
Weight 2851 g
Width 70 mm
Protective Height 1050 mm
Operating Temperature 0 to 50 degC
IP Rating IP65

Documents

IPD Product Catalogue V17
ABB Catalogue
ABB Datasheet
Manual

Certificate

EU Declaration of Conformity
REACH Certification
RoHS Certification
