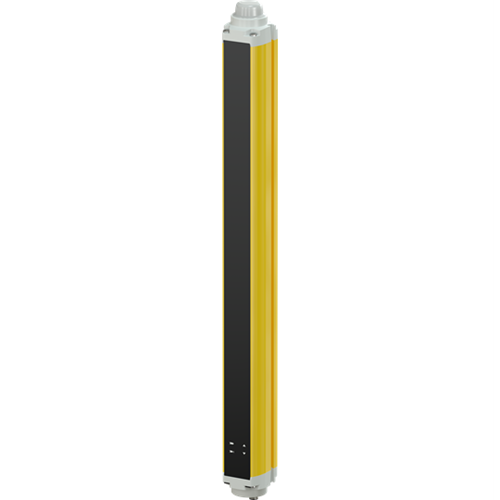

ABB ORION3-4-K1C-050-E Safety Light Grid - Active Part 0.5-8 mm Sensing Range 519.75 mm Resolution

Product Code: ORION3-4-K1C-050-E

1

Specifications

Product Type	Light Grid Perimeter Guard
Brand	ABB
Series	Orion3 Extended
Cable Length	70 m
Plug Type	M12 8-pole male
Sensing Type	0.5-8 mm
Supply Voltage	24 V DC
Housing Colour	Yellow RAL 1003
Housing Material	Painted aluminum (yellow RAL 1003)
Muting	Yes
No. of Beams	2
Sensor Distance	0.5 to 8 m
Depth	57 mm
Height	606 mm
Length	57 mm
Weight	1300 g
Width	52 mm
Beam Spacing	500 mm
Protective Height	500 mm
Operating Temperature	0 to 55 degC
IP Rating	IP65

Documents

IPD Product Catalogue V17

ABB Catalogue

ABB Datasheet

Instructions

Certificate

EU Declaration of Conformity

REACH Certification

RoHS Certification
