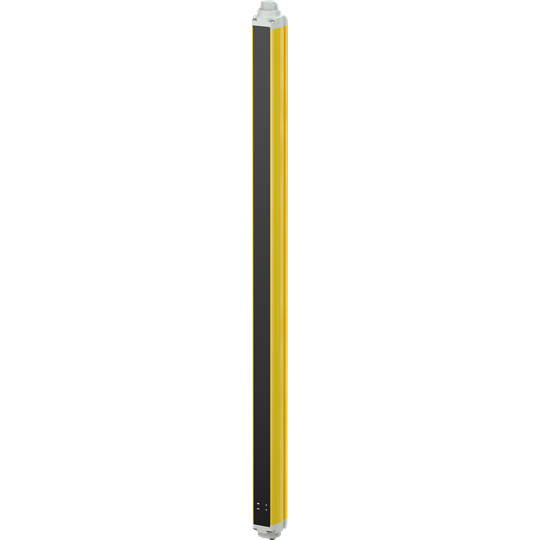

ABB ORION3-4-K2C-090-E Safety Light Grid 0.5-6.5 mm Sensing Range 319.75 mm Resolution

Product Code: ORION3-4-K2C-090-E

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Light Grid Perimeter Guard
Brand ABB
Series Orion3 Extended
Cable Length 70 m
Plug Type M12 8-pole male
Sensing Type 0.5-6.5 mm
Supply Voltage 24 V DC
Housing Colour Yellow RAL 1003
Housing Material Painted aluminum (yellow RAL 1003)
Muting Yes
No. of Beams 4
Sensor Distance 0.5 to 6.5 m
Depth 57 mm
Height 1010 mm
Length 57 mm
Weight 2100 g
Width 52 mm
Beam Spacing 300 mm
Protective Height 900 mm
Operating Temperature 0 to 55 degC
IP Rating IP65
Standards and Approvals CE, ROHS, REACH, TUV, UL, UKCA

Documents

IPD Product Catalogue V17
ABB Catalogue
ABB Datasheet
Manual

Certificate

Certificate of Compliance
EU Declaration of Conformity
REACH Certification
RoHS Certification
