Specifications

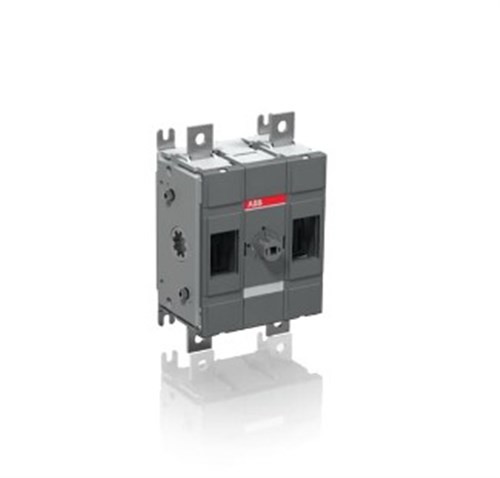

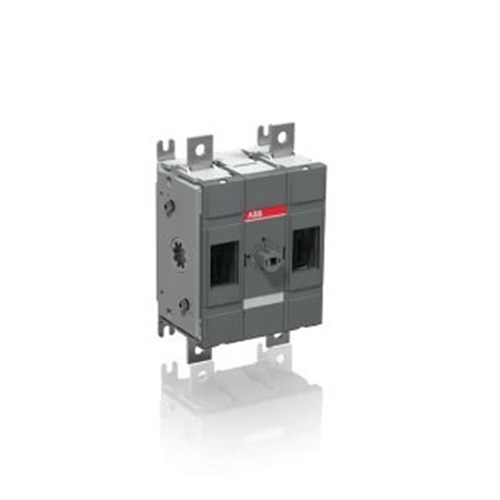

Product Type	Switch Disconnector
Brand	ABB
Air Thermal Current	200 A
Degree of Pollution	IP3
Degree of Protection	IP20
Frame Size	S1.0
Height	176 mm
Length	84.5 mm
Line Terminals Position	Top In-Bottom Out, Bottom In-Top Out
Mounting Type	Base
Number of Circuits	1
Number of Poles	2
Operating Mechanism	Between The Poles
Power Loss	6 W
Rated Current	200 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1500 V
Rated Voltage	1000 V
Rated Withstand Current	5 kA, 10 kA
Shaft Size	6 mm
Short Circuit Capacity	10 kA
Special Functions	No
Standards and Approvals	IEC 60947-1, -3
Terminal Type	Lug
Terminal Width	19.5 mm
Torque Rating	5-8 Nm
Weight	1.2 kg
Width	115.5 mm
